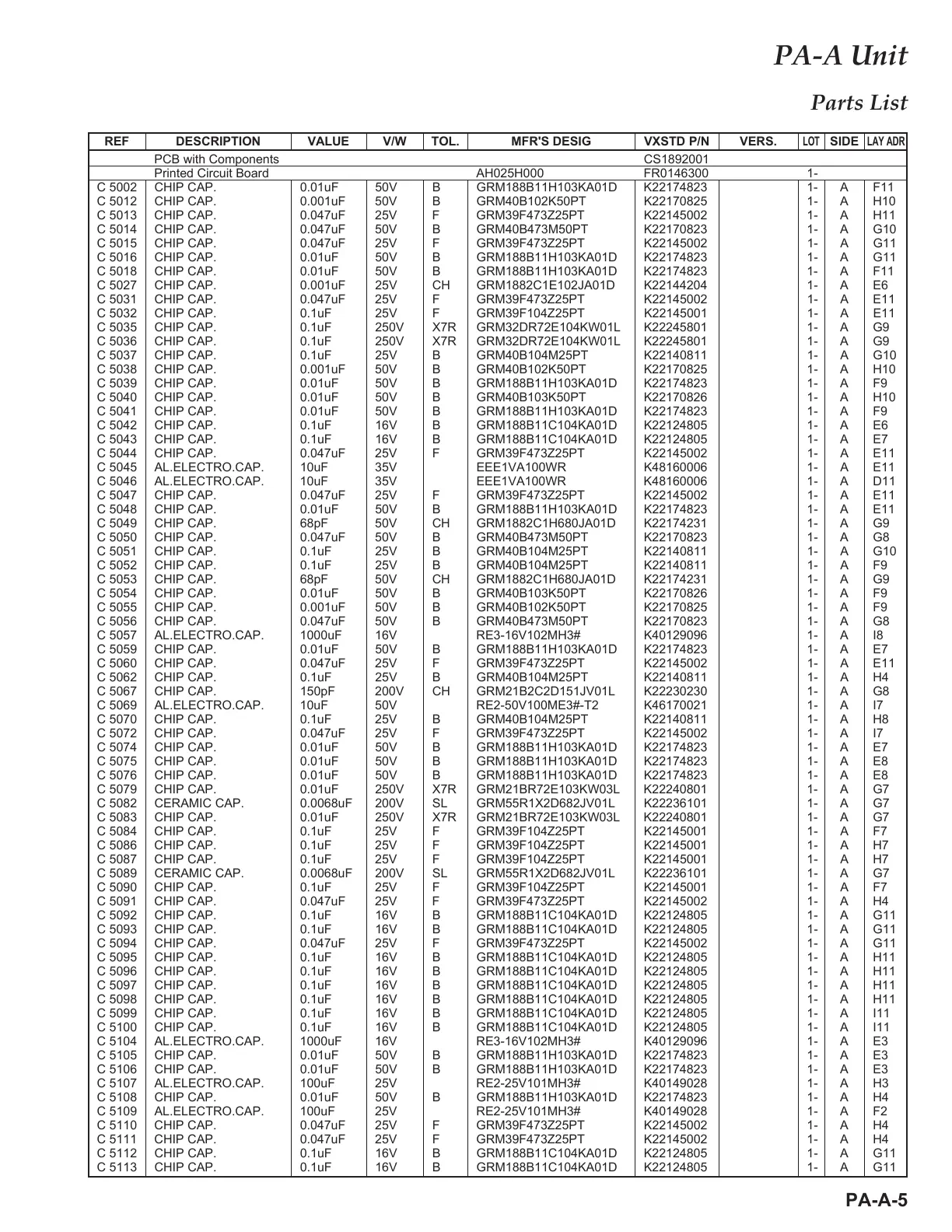

PA-A-5
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
LOT
SIDE
LAY ADR
PA-A Unit
PCB with Components CS1892001
Printed Circuit Board AH025H000 FR0146300 1-
C 5002 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F11
C 5012 CHIP CAP. 0.001uF 50V B GRM40B102K50PT K22170825 1- A H10
C 5013 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H11
C 5014 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G10
C 5015 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A G11
C 5016 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G11
C 5018 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F11
C 5027 CHIP CAP. 0.001uF 25V CH GRM1882C1E102JA01D K22144204 1- A E6
C 5031 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5032 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A E11
C 5035 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A G9
C 5036 CHIP CAP. 0.1uF 250V X7R GRM32DR72E104KW01L K22245801 1- A G9
C 5037 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A G10
C 5038 CHIP CAP. 0.001uF 50V B GRM40B102K50PT K22170825 1- A H10
C 5039 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F9
C 5040 CHIP CAP. 0.01uF 50V B GRM40B103K50PT K22170826 1- A H10
C 5041 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F9
C 5042 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E6
C 5043 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E7
C 5044 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5045 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A E11
C 5046 AL.ELECTRO.CAP. 10uF 35V EEE1VA100WR K48160006 1- A D11
C 5047 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5048 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E11
C 5049 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G9
C 5050 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G8
C 5051 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A G10
C 5052 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A F9
C 5053 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A G9
C 5054 CHIP CAP. 0.01uF 50V B GRM40B103K50PT K22170826 1- A F9
C 5055 CHIP CAP. 0.001uF 50V B GRM40B102K50PT K22170825 1- A F9
C 5056 CHIP CAP. 0.047uF 50V B GRM40B473M50PT K22170823 1- A G8
C 5057 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A I8
C 5059 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E7
C 5060 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A E11
C 5062 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H4
C 5067 CHIP CAP. 150pF 200V CH GRM21B2C2D151JV01L K22230230 1- A G8
C 5069 AL.ELECTRO.CAP. 10uF 50V RE2-50V100ME3#-T2 K46170021 1- A I7
C 5070 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- A H8
C 5072 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A I7
C 5074 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E7
C 5075 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E8
C 5076 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E8
C 5079 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A G7
C 5082 CERAMIC CAP. 0.0068uF 200V SL GRM55R1X2D682JV01L K22236101 1- A G7
C 5083 CHIP CAP. 0.01uF 250V X7R GRM21BR72E103KW03L K22240801 1- A G7
C 5084 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A F7
C 5086 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A H7
C 5087 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A H7
C 5089 CERAMIC CAP. 0.0068uF 200V SL GRM55R1X2D682JV01L K22236101 1- A G7
C 5090 CHIP CAP. 0.1uF 25V F GRM39F104Z25PT K22145001 1- A F7
C 5091 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H4
C 5092 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
C 5093 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
C 5094 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A G11
C 5095 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5096 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5097 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5098 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A H11
C 5099 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I11
C 5100 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A I11
C 5104 AL.ELECTRO.CAP. 1000uF 16V RE3-16V102MH3# K40129096 1- A E3
C 5105 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5106 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E3
C 5107 AL.ELECTRO.CAP. 100uF 25V RE2-25V101MH3# K40149028 1- A H3
C 5108 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A H4
C 5109 AL.ELECTRO.CAP. 100uF 25V RE2-25V101MH3# K40149028 1- A F2
C 5110 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H4
C 5111 CHIP CAP. 0.047uF 25V F GRM39F473Z25PT K22145002 1- A H4
C 5112 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
C 5113 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G11
To Next Page
