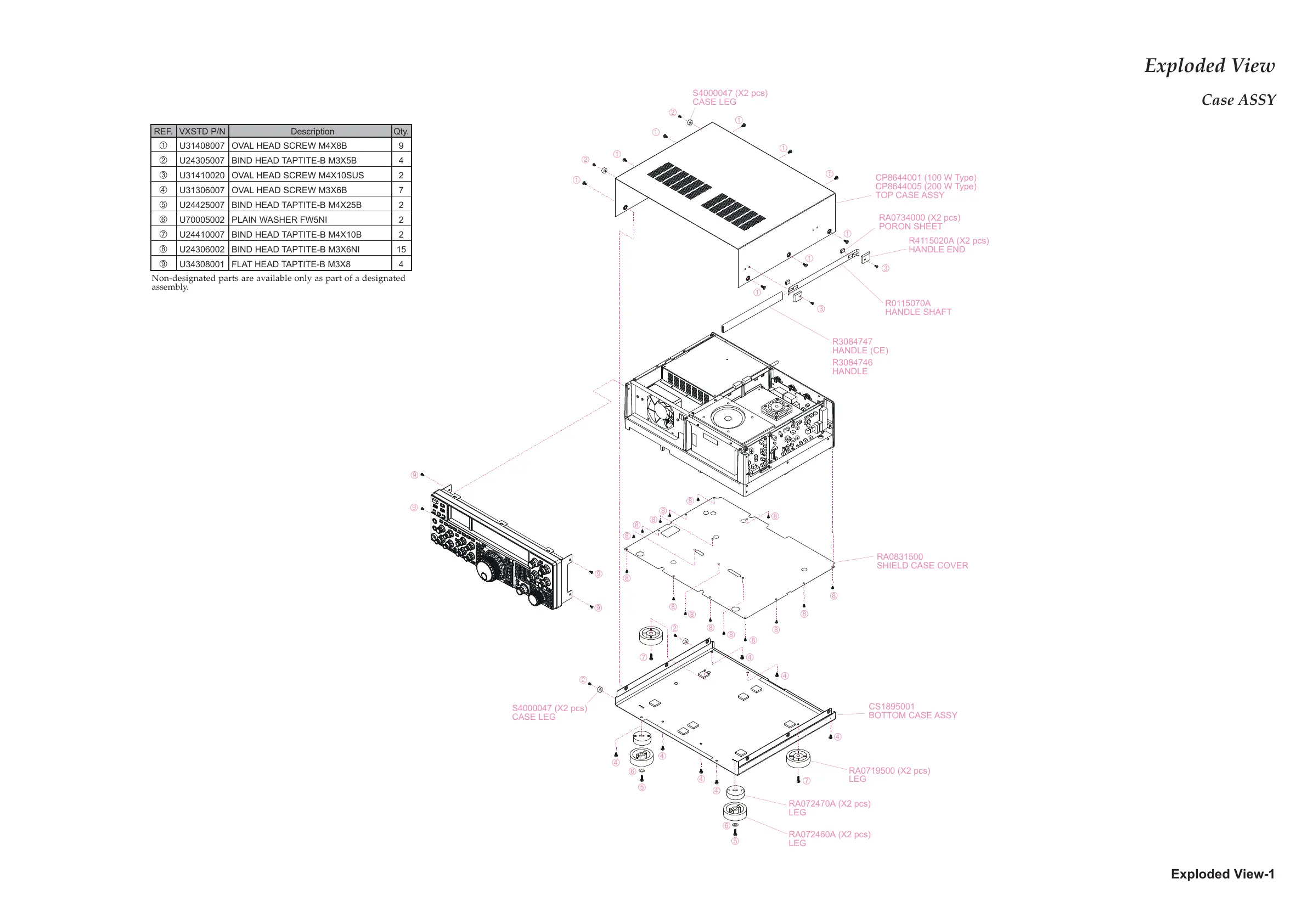

Yaesu FT-2000/D - Exploded View; Case Assembly

Exploded View-1
Exploded View
Case ASSY
CP8644001 (100 W Type)
CP8644005 (200 W Type)
TOP CASE ASSY
R4115020A (X2 pcs)
HANDLE END
R3084747
HANDLE (CE)
R3084746
HANDLE
R0115070A
HANDLE SHAFT
S4000047 (X2 pcs)
CASE LEG
RA0831500
SHIELD CASE COVER
CS1895001
BOTTOM CASE ASSY
RA0719500 (X2 pcs)
LEG
RA072470A (X2 pcs)
LEG
RA072460A (X2 pcs)
LEG
Non-designated parts are available only as part of a designated
assembly.






REF. VXSTD P/N Description Qty.
 U31408007 OVAL HEAD SCREW M4X8B 9
 U24305007 BIND HEAD TAPTITE-B M3X5B 4
 U31410020 OVAL HEAD SCREW M4X10SUS 2
 U31306007 OVAL HEAD SCREW M3X6B 7
 U24425007 BIND HEAD TAPTITE-B M4X25B 2
 U70005002 PLAIN WASHER FW5NI 2
 U24410007 BIND HEAD TAPTITE-B M4X10B 2
 U24306002 BIND HEAD TAPTITE-B M3X6NI 15
 U34308001 FLAT HEAD TAPTITE-B M3X8 4









































S4000047 (X2 pcs)
CASE LEG
RA0734000 (X2 pcs)
PORON SHEET
