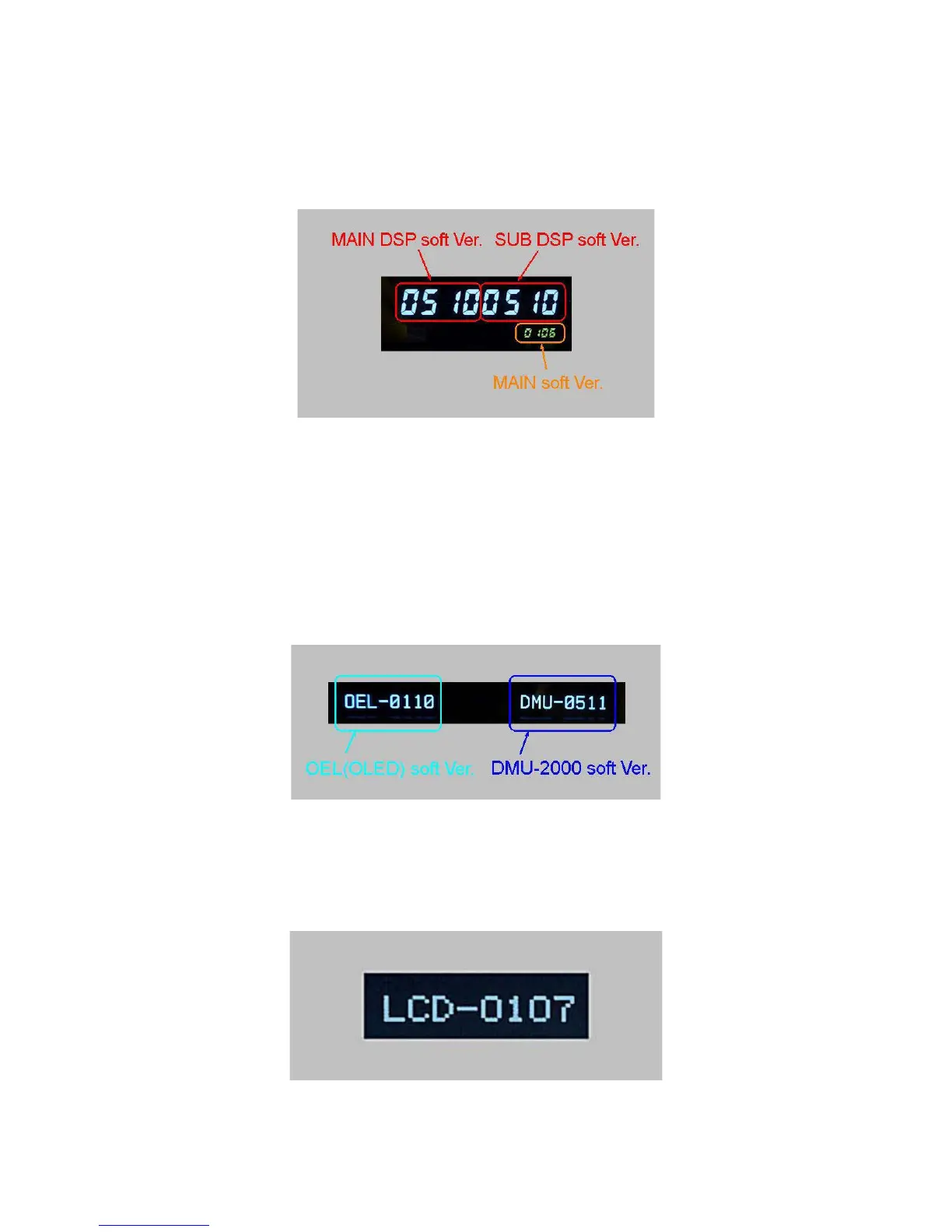

・ EDSP Software Version
The version number will be shown on the VFD MAIN Frequency display.
See Fig. 2 and 3 (example EDSP software version MAIN: V0510 and SUB V0510)．
Fig. 3
・ OEL (OLED) Software Version
The version number will be shown on the CLAR/VFO-B DIAL display (Left side). See Fig. 2 and 4
(example OEL software version V0110).
・ DMU-2000 Software Version
The version number will be shown on the VFO-A SELECT DIAL display (Center). See Fig. 2 and 4
(example DMU software version V0511). This will not be displayed unless the DMU-2000 is attached
and turned on.
Fig. 4
・ SM-5000 Software Version
The version number will be shown on the SM-5000 LCD display, right side lower corner. See Fig. 5
(example LCD software version V0107)
Fig. 5
