Yaesu VR-500 User Guide

Page 5

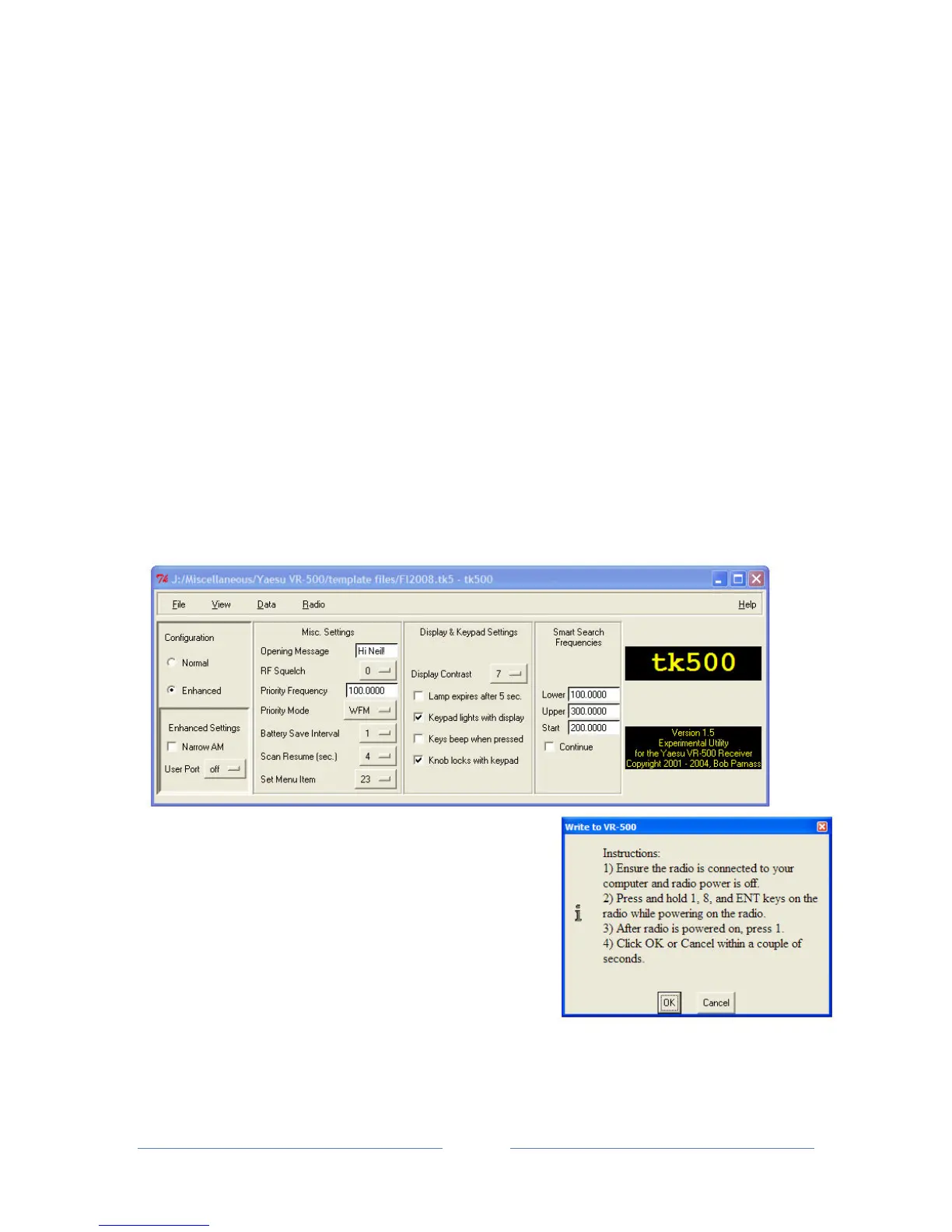

3. Writing config and memory channel data to the radio
(Note: If data had just been read from the VR-500, the tk500 must be restarted prior to
programming commencing).
• In the tk500 software, go to File, Open and select the appropriate .tk5 file.
• Choose ‘Write to radio' in the 'Radio' menu.
• Follow the instructions in the box that opens, i.e. Hold down the 1, 8 and ENT key whilst
switching the VR-500.
• Once the scanner is on, press '1' on the VR-500 keypad and immediately afterwards click
‘OK’ in tk500.

Yaesu VR-500 Specifications

General

Modulation Types	AM, FM, WFM, SSB, CW
Selectivity (AM)	6 kHz (-6 dB)
Selectivity (FM)	15 kHz (-6 dB)
Selectivity (SSB/CW)	2.2 kHz (-6 dB)
Dimensions	220 x 130 x 40 mm
Weight	1.2 kg
Channels	1000
Antenna Impedance	50 Ω
Sensitivity (SSB/CW)	0.25 uV (0.5-30 MHz)
