VR-500 OPERATING MANUAL8

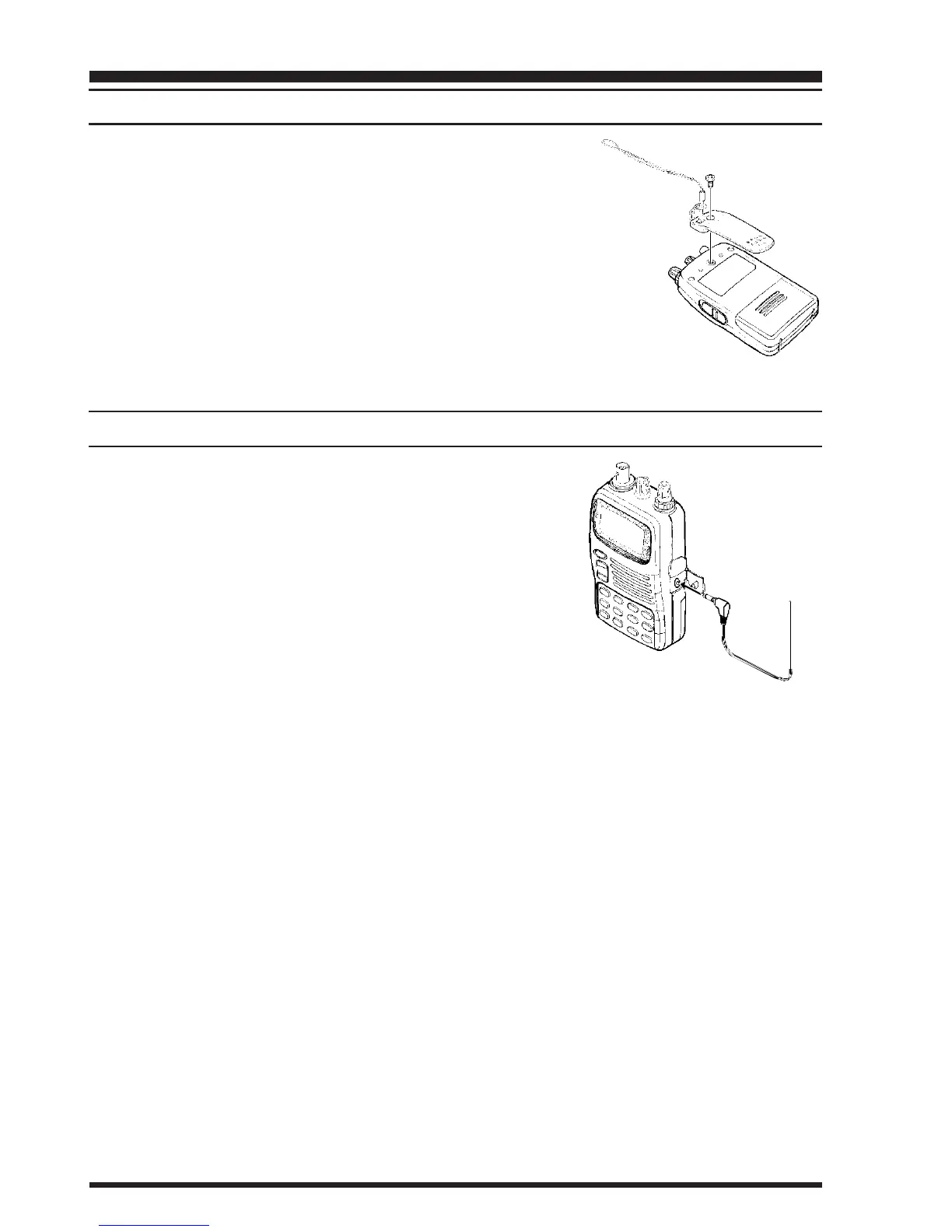

BELT CLIP INSTALLATION
To install the Belt Clip, first place the Hand Strap into the
hole at the top of the Belt Clip, then insert the mounting screw
through the belt clip, and affix it snugly to the mounting hole
on the back of the VR-500.
Do not install the supplied Belt Clip Mounting Screw if you
are not installing the Belt Clip! The screw will cause a “short
circuit” to the internal circuitry, causing serious damage!
Installations of Accessories
AC OPERATION USING THE OPTIONAL NC-60 AC ADAPTER
The VR-500 may be operated from your house current by
use of the optional NC-60 AC Adapter.
To use the NC-60, turn the radio off, then plug the minia-
ture connector of the AC Adapter into the EXT DC jack on
the side of the radio. Now plug the AC Adapter into the
wall outlet. You may now turn on the radio.
If 12 Volt DC power is available, the optional E-DC-5B or
E-DC-6 DC Cable may be used for operation. When mak-
ing DC connections via the E-DC-5B or E-DC-6 DC Cable, be absolutely certain to ob-
serve the proper voltage level and polarity guidelines. Do not connect this radio directly to
a DC source which exceeds 15.0 Volts DC, nor to AC power of any kind.
NC-60
E-DC-5B
E-DC-6
