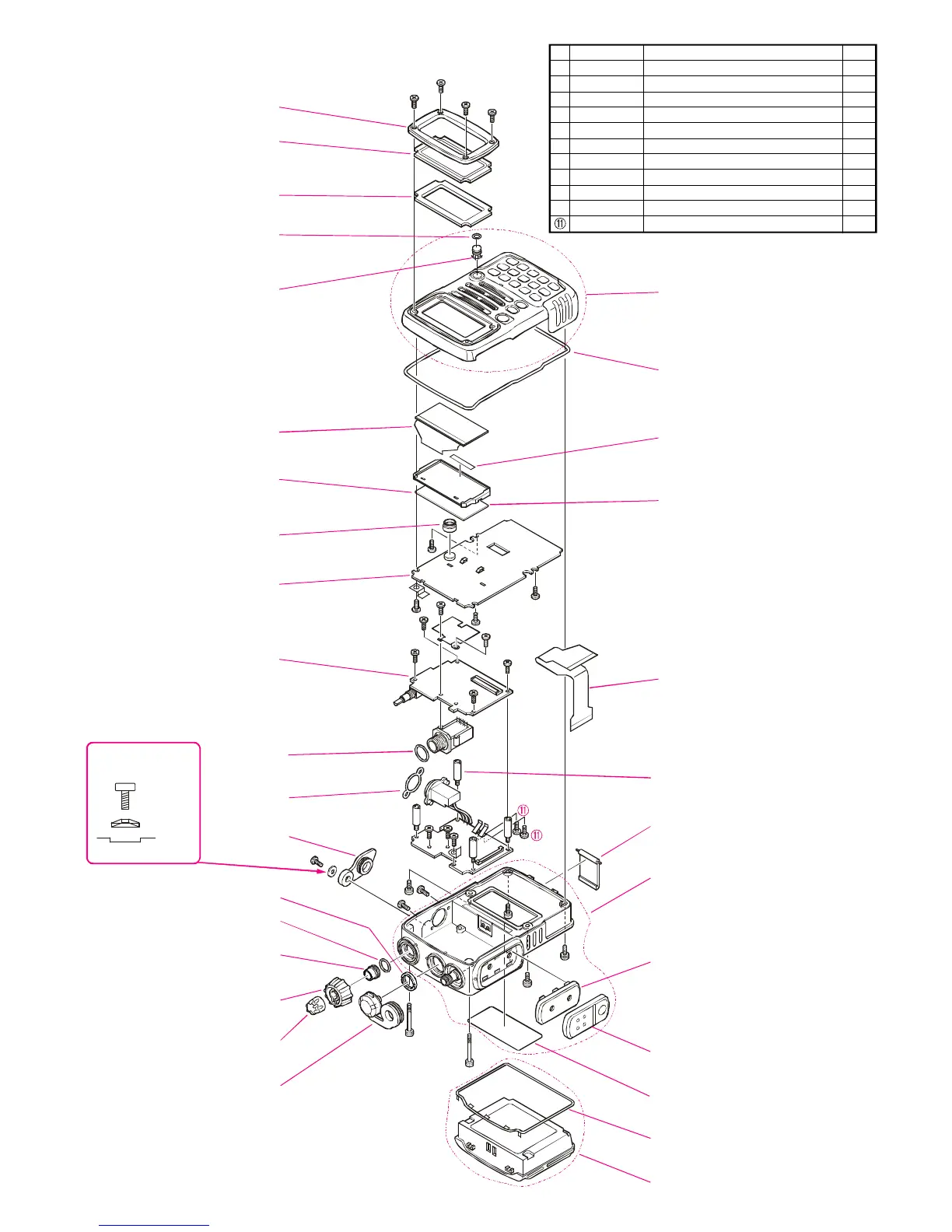

Exploded View & Miscellaneous Parts
À
À
Á
Á
Á
Á
Ã
Ä
Â
Â
Â
Â
RA0400000
RUBBER PACKING
RA0417100
PANEL FRAME
RA03995000
WINDOW
RA03994000
DOUBLE FACE TAPE
RA0401600
O RING
RA0399800
LIGHT GUIDE (LED)
RA0400100
RUBBER KNOB (PTT)
RA0140100
MASK SHEET
RA0399700
HOLDER (PTT)
CP7342003
REAR CASE ASS’Y
with SMA CONNECTOR ASS’Y,
TERMINAL BOARD ASS’Y,
RUBBER KNOB (PTT),
RUBBER KNOB (PTT)
RA01403AA
LATCH NAIL
FNB-80LI
RA0399900
REFLECTOR SHEET
RA014250A
DOUBLE FACE TAPE (LCD)
RA0399100
LIGHT GUIDE (LED)
Q7000426
LCD MODULE
RA0405600
MIC HOLDER RUBBER
CNTL-Unit
RA0426800
O RING
AF-Unit
RA0400900
O RING
RA0400200
STUD (X4 pcs)
RA0426900
O RING
RA0087900
SPECIAL NUT
CP7346002 (USA)
CP7346003 (EXPORT)
CP7346004 (GERMANY)
PANEL ASS’Y
with RUBBER KNOB, MIC SHEET,
SP SHEET, SP, PROTECTOR L,
PROTECTOR R
Å
Æ
Æ
Ç
Ç
Æ
Æ
Æ
Æ
RA0292200
SPECIAL NUT
È
È
È
È
É
É
RA0400500
EXT CAP
RA0401200
ENCODER KNOB
RA0401900
VOLUME KNOB
RA0400600
CAP(SP/MIC)
RA0141600
RUBBER PACKING
There is a direction in
WASHER.
WASHER
SCREW
EXP CAP
FR008330C
FPC CABLE
No.
VXSTD P/N DISCRIPTION QTY.
À U9900137
BINDING HEAD SCREW M2X21.7 (W/ O RING)
2
Á U9900138
BINDING HEAD SCREW M2X5 (W/ O RING)
4
 U07225120
PAN HEAD SCREW M2X2.5SUS#1
4
à U9900136
SPECIAL SCREW M2X2.35
1
Ä RA0304300
WASHER
1
Å U00103002
PAN HEAD SCREW M2X3NI
1
Æ U00104002
PAN HEAD SCREW M2X4NI
6
Ç U9900140
TAPTITE SCREW M2X6SUS#3
2
È U44104002
TAPTITE SCREW M2X4NI
4
É U9900141
TAPTITE SCREW M1.7X5NI#3
2
U07125102
TAPTITE SCREW M1.7X2.5SUS#1
2
To Next Page
