Yaesu VX-7R - TECHNICAL - VCO Unit Circuit Diagram

Yaesu VX-7R - TECHNICAL
58 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
53
VCO Unit

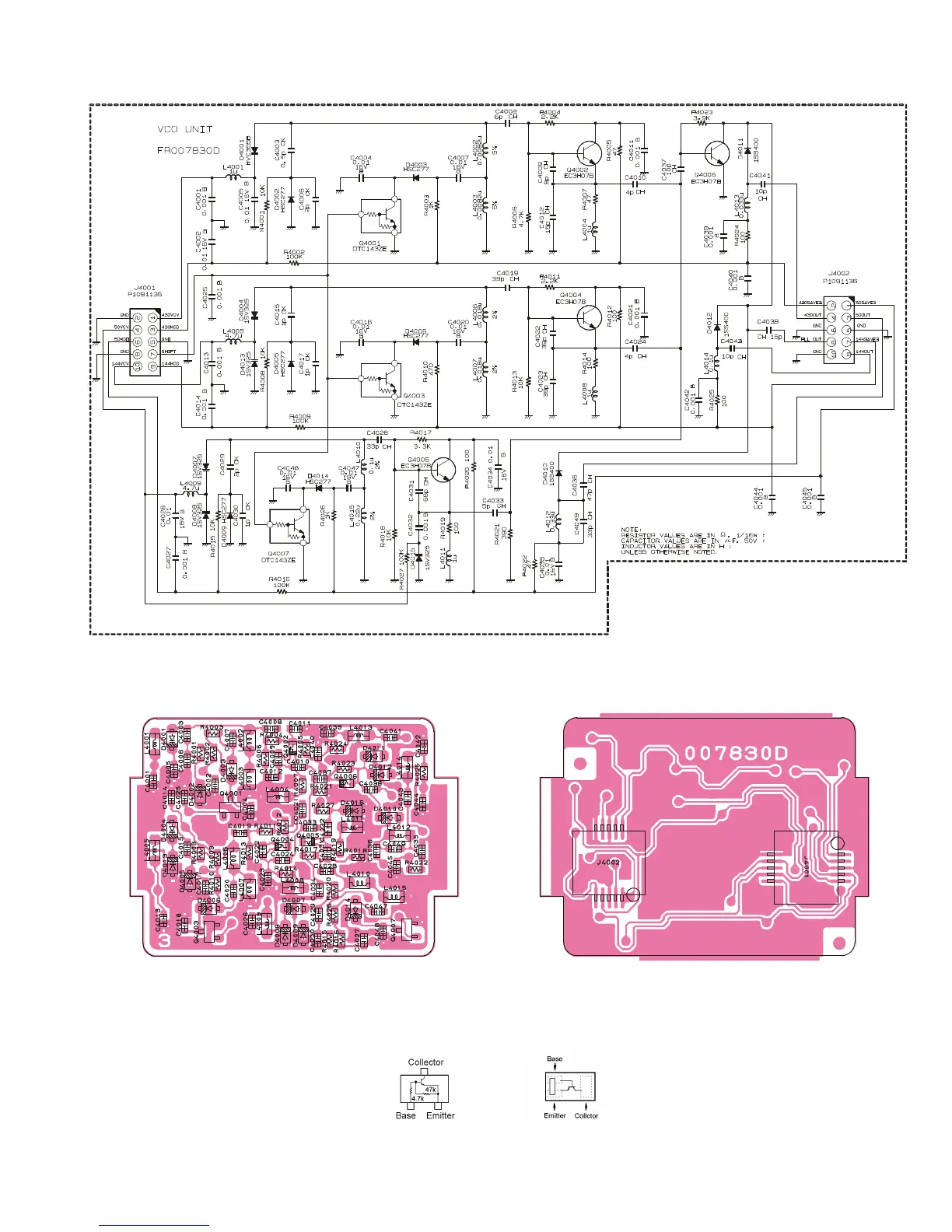

Circuit Diagram
Parts Layout
Side A Side B
DTC143ZE (E23)
(Q4001, 4003, 4007)
EC3H07B (G)
(Q4002, 4004, 4005,
4006)
