90°
90°
1033423E-3/21
NOW COMPLETELY
TIGHTEN THE
BOWDOWN USING
FIRM PRESSURE.

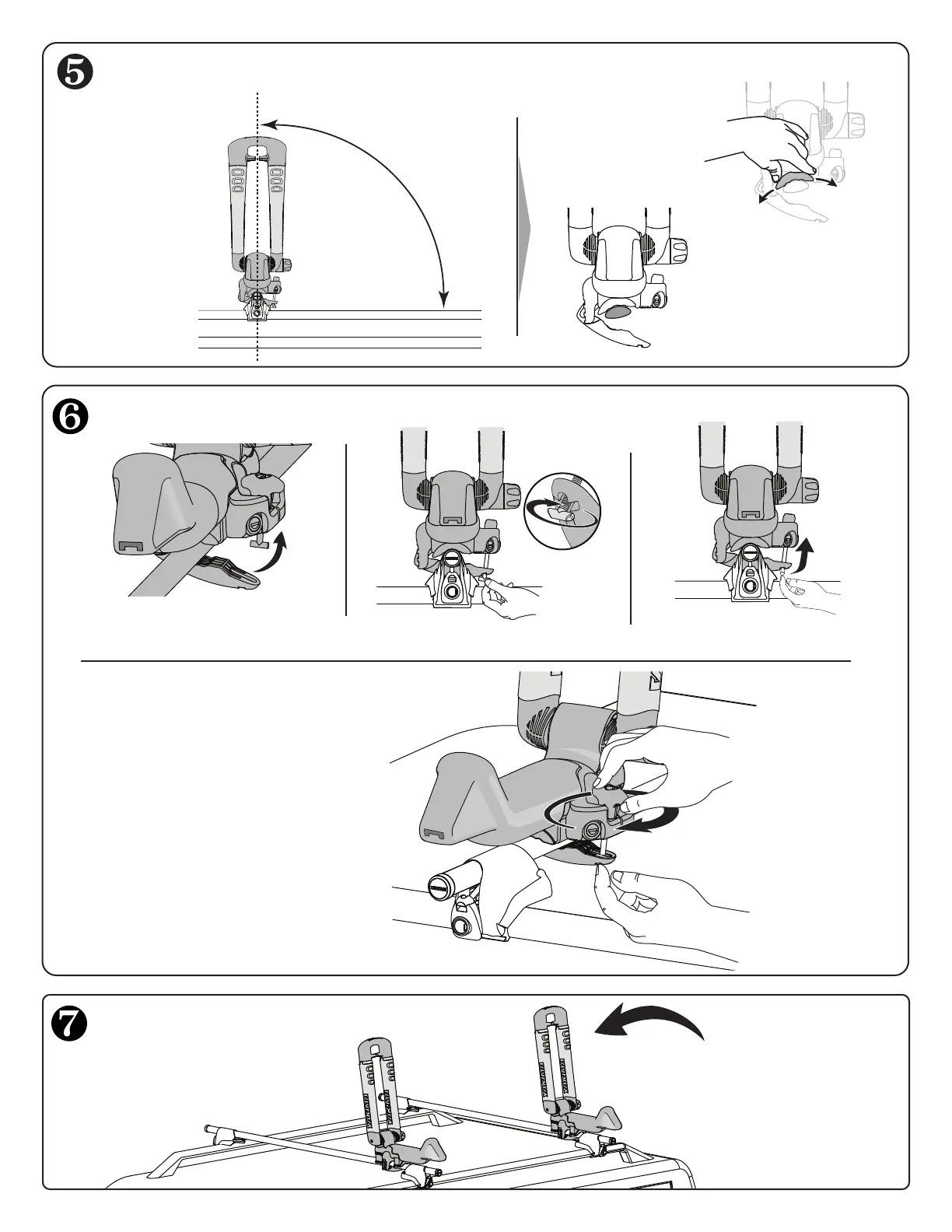

Close bail around crossbar,
passing t-bolt through bail.
Rotate t-bolt.
Push t-bolt to rest in slot.
BowDown
should be as
close to vertical
as possible.
If necessary
adjust mounts.
If necessary adjust
the waffle blocks.
INSTALL SECOND BOWDOWN
Repeat Steps 1 through 6 to
install second BowDown.
SET BOWDOWN TO BE VERTICAL
SECURE BOWDOWN TO CROSSBAR
Blocks will self
tighten when
BowDown is
tightened.
