Instruction #1036058B - page 2 of 10
ASSEMBLY
To extend the arms, irst pull the pin on the driver-side arm and swing it out until
it locks into place. Then, pull the pin on the passenger-side arm and swing it out
until it locks into place. NOTE: The EXO LitKit is not intended to remain installed
when the EXO SwingBase arms are folded back to their stowed positions.
CAUTION: Keep your ingers away from ALL moving parts!

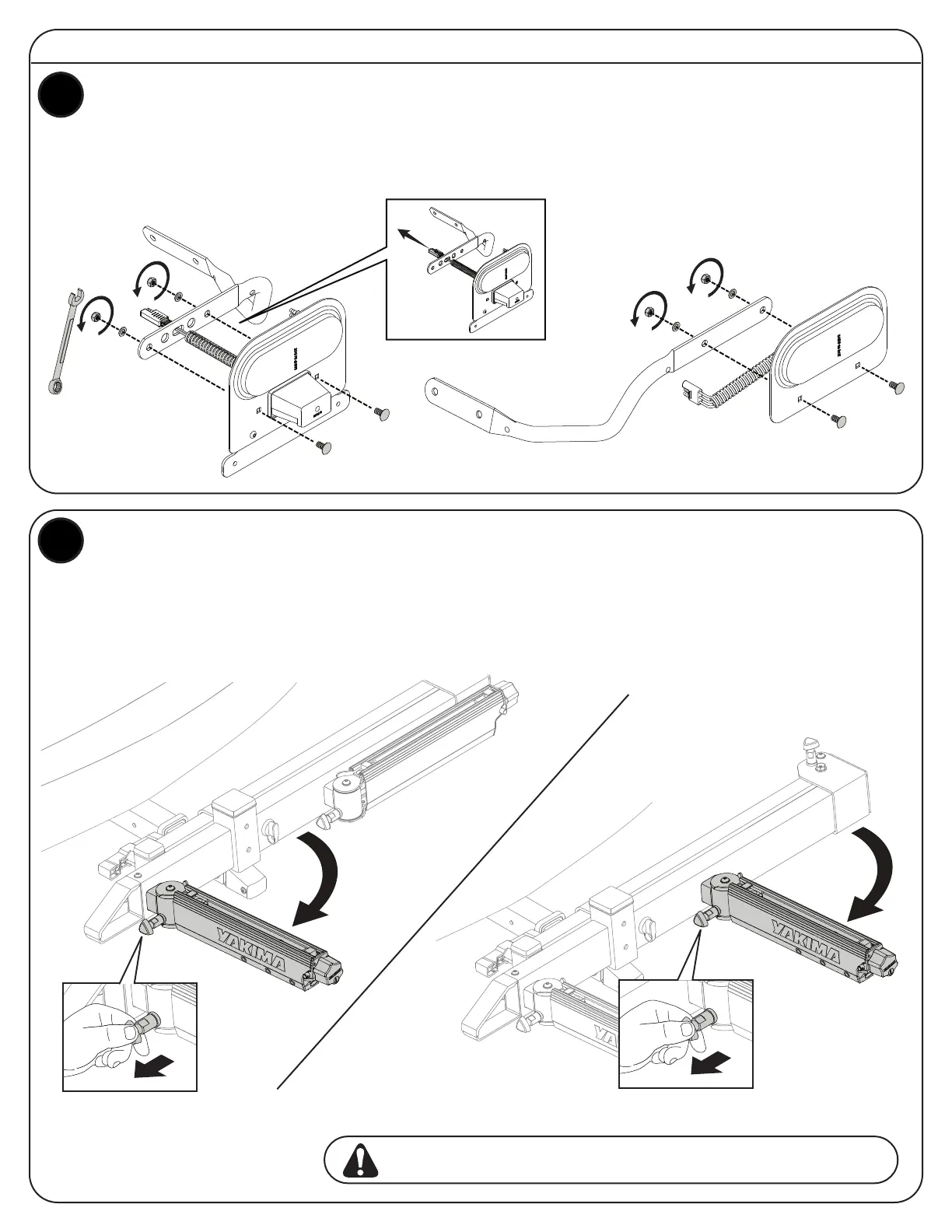

ATTACH THE LIGHT TUBES TO THE LIGHTS.
1
Pass the connector through the center hole of the left light tube as shown. Use the
provided 10 mm wrench to assemble the left and right side lights to the left and
right side light tubes as shown using 2 bolts, 2 washers, and 2 nuts for each side.
EXTEND THE EXO SWINGBASE™ ARMS.
2
