Yakima EXO LitKit - Plug Main Harness into Lights; Route Main Harness Through Clips; Connect Exo Litkit to Vehicle

Instruction #1036058B - page 5 of 10

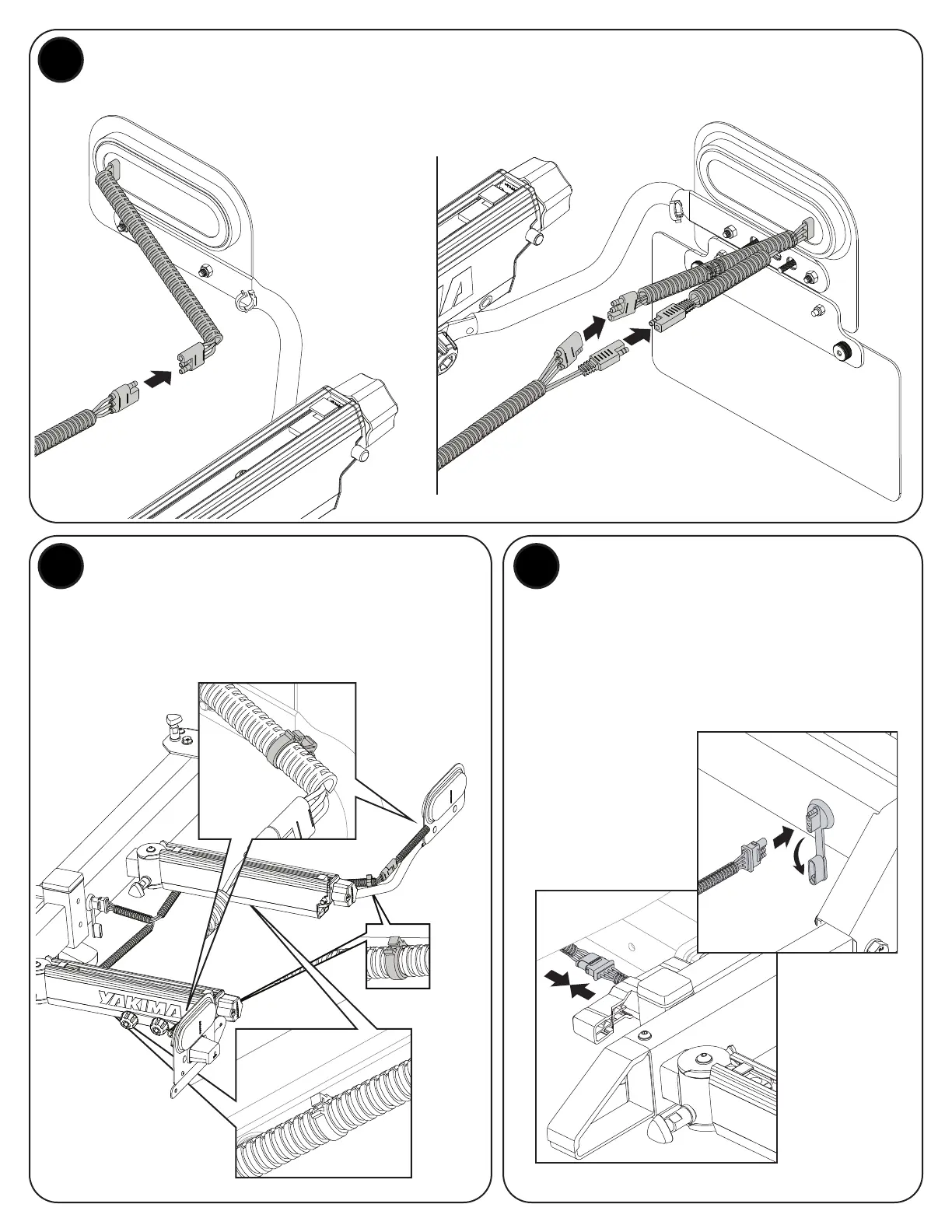

PLUG THE MAIN HARNESS INTO THE LIGHTS.
7
8 9
Plug the main wiring harness into the the left and right side lights as shown.
Route the wiring harness through the cable clips
you installed in step 5. Firmly press the clips
together to close them around the cables.
Connect one end of the vehicle wiring
harness to the plug at the rear of the
EXO SwingBase™ and connect the other
end to the wiring harness of your vehicle.
ROUTE THE MAIN WIRING
HARNESS THROUGH THE CLIPS.
CONNECT THE EXO
LITKIT™ TO YOUR VEHICLE.
