Yakima Q Tower - Installation Preparation and Measurement; Initial Setup and Vehicle Measurements; Installing and Securing Towers; Attaching Towers to Crossbars

1033430H-3/33

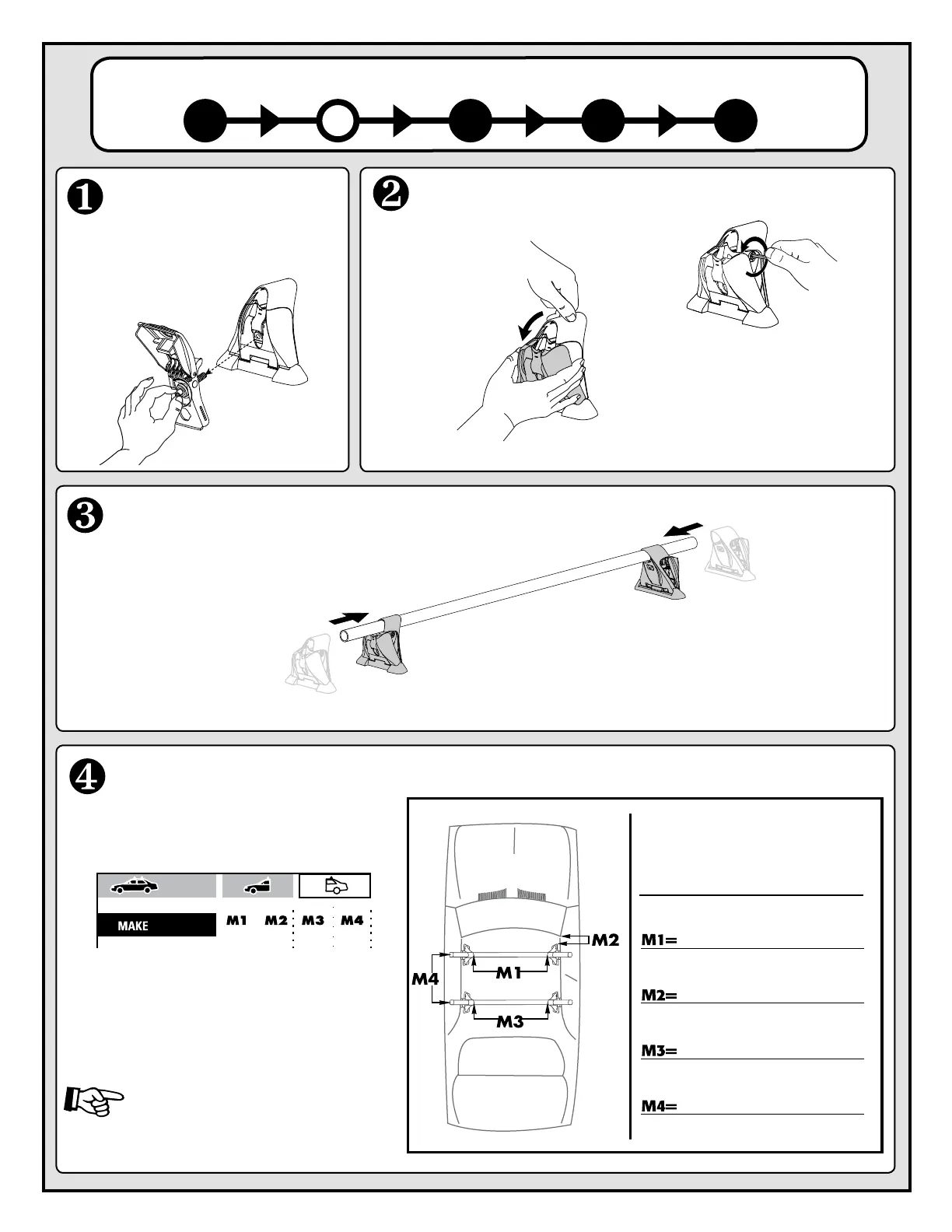

Unscrew the adjustment
posts to remove the covers
from each tower.
Remove the covers.
Open towers.
Open each tower
to access the
tower screw.
Loosen tower screws
until the crossbar can fit
through the tower (refer
to next step).
Slide towers onto bars.
Find Your 4 M’s (measurements).
Locate the precise measurements
for your vehicle on the Q-clip sheet.
If your vehicle is not listed or the
clip sheet is not in the Q-Clip box
check yakima.com/roof-rack-
installation, contact your dealer or
call 888-925-4621.
Write down your four measurements
in the spaces provided to the right.
Keep these instructions in a safe
place for future reference.
Overview
Prepare for
installation
Install towers
in front
Install towers
in rear
Perform safety
checks
YOU ARE
HERE
YOUR Vehicle:
