Yakima Q Tower - Positioning Front Towers on Vehicle

1033430H-5/33
M
2
M
2

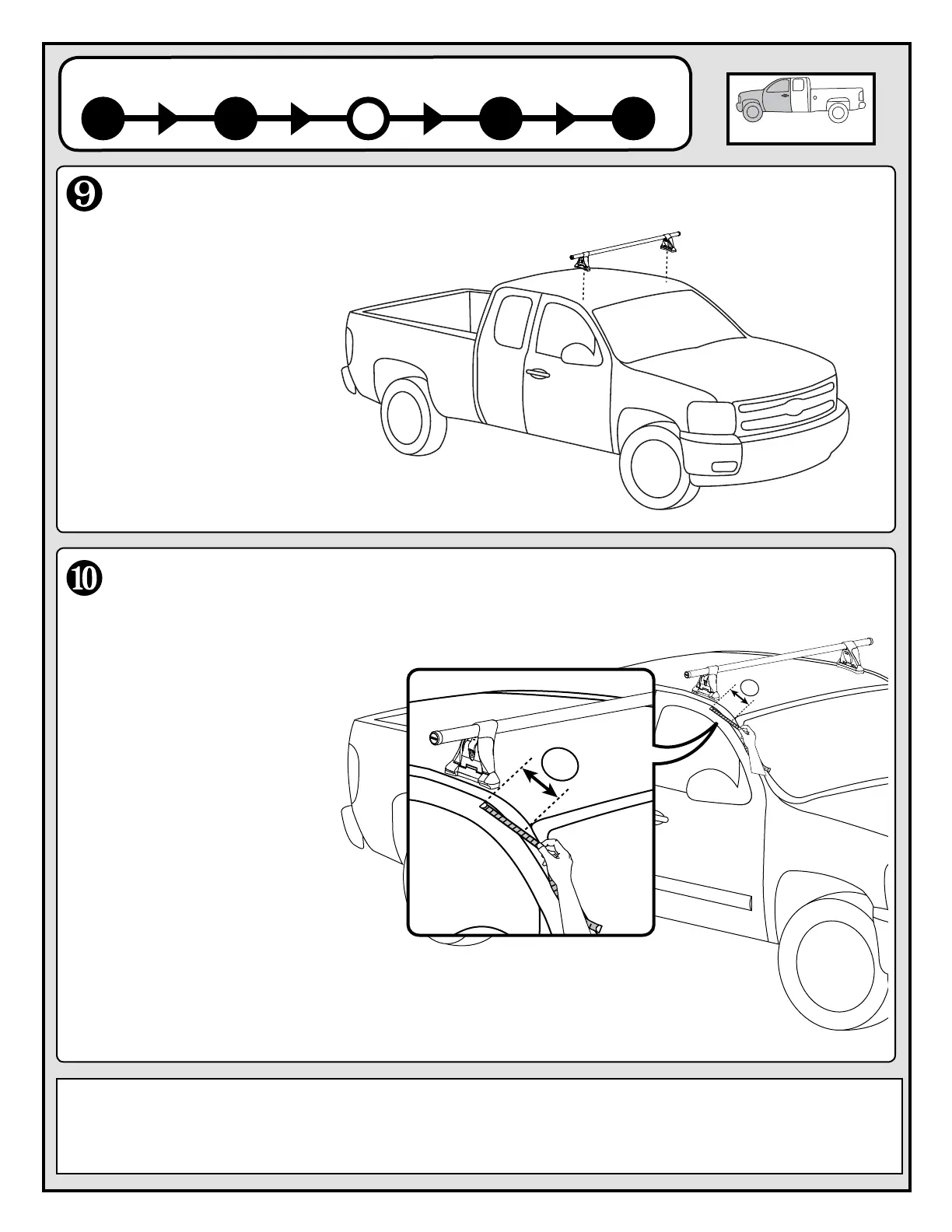

Position Towers in Front.
• Clean vehicle roof where towers will set.
• Set the assembly on the roof.
Set M2.
TIP: Verify this measurement repeatedly during installation.
• USE THE M2
MEASUREMENT you
identified in step 4.
• Measure the shortest
distance from leading edge
of tower base to nearest
painted roofline corner.
• Once positioned DO NOT
MOVE.
windshield
rooftop
trim
To continue front tower installation skip to step 17.
