1. END COVER
2. PUMP BODY
3. BEARING
4. BEARING
5. DRIVING GEAR
6. DRIVEN GEAR
7. FRONT END COVER
8. SEAL RING
9. SEAL RING
10. SEAL RING
11. SEAL RING
12. BOLT
13. LOCK WASHER
14. LOCKING COLLAR
15. OIL SEAL

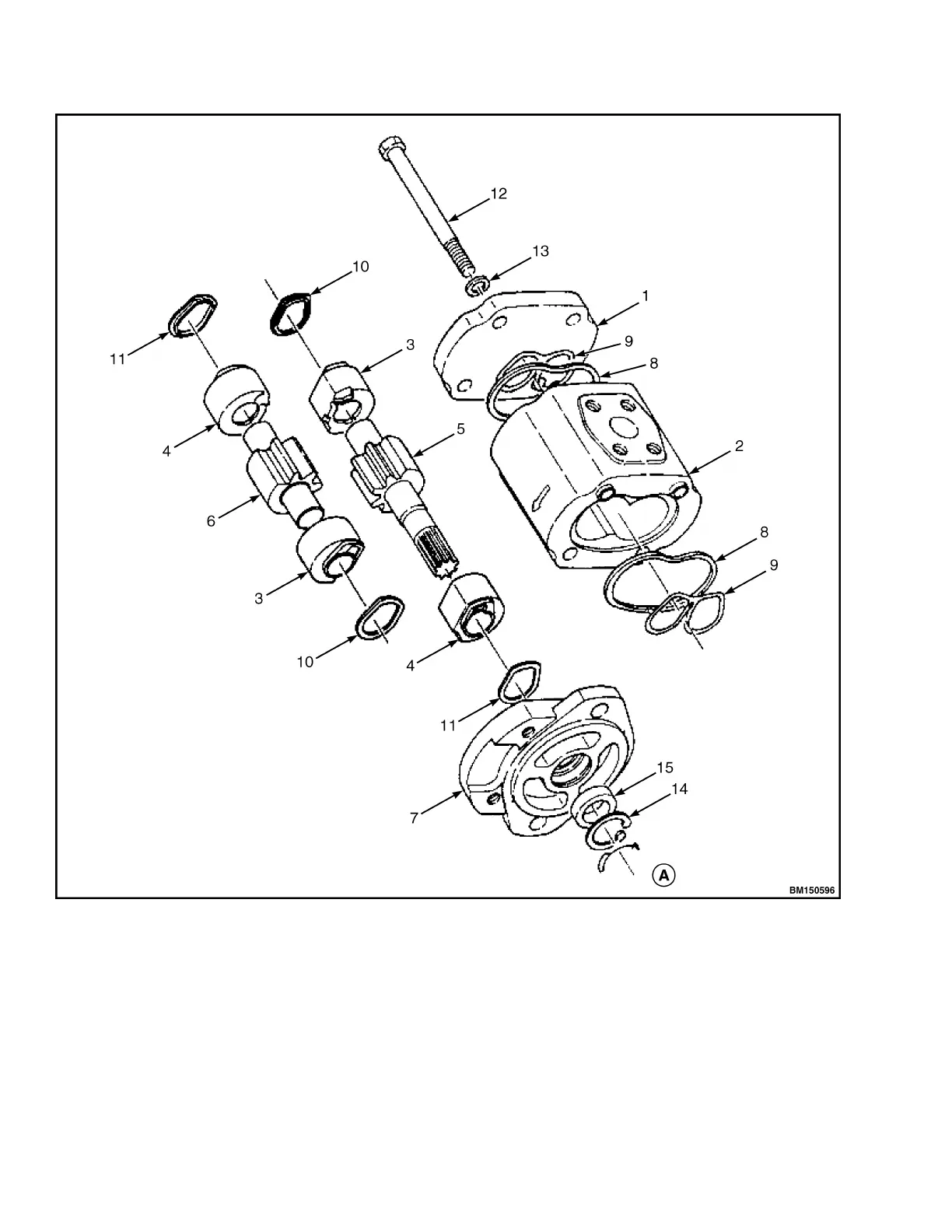

Figure 55. Clockwise Rotation of Gear Pump (2-3.5T Gasoline Forklift Trucks)
Hydraulic System 8000 YRM 2199
