1. END COVER
2. PUMP BODY
3. BEARING
4. BEARING
5. DRIVING GEAR
6. DRIVEN GEAR
7. FRONT END COVER
8. SEAL RING
9. SEAL RING
10. SEAL RING
11. SEAL RING
12. BOLT
13. LOCK WASHER
14. OIL SEAL
15. LOCKING COLLAR

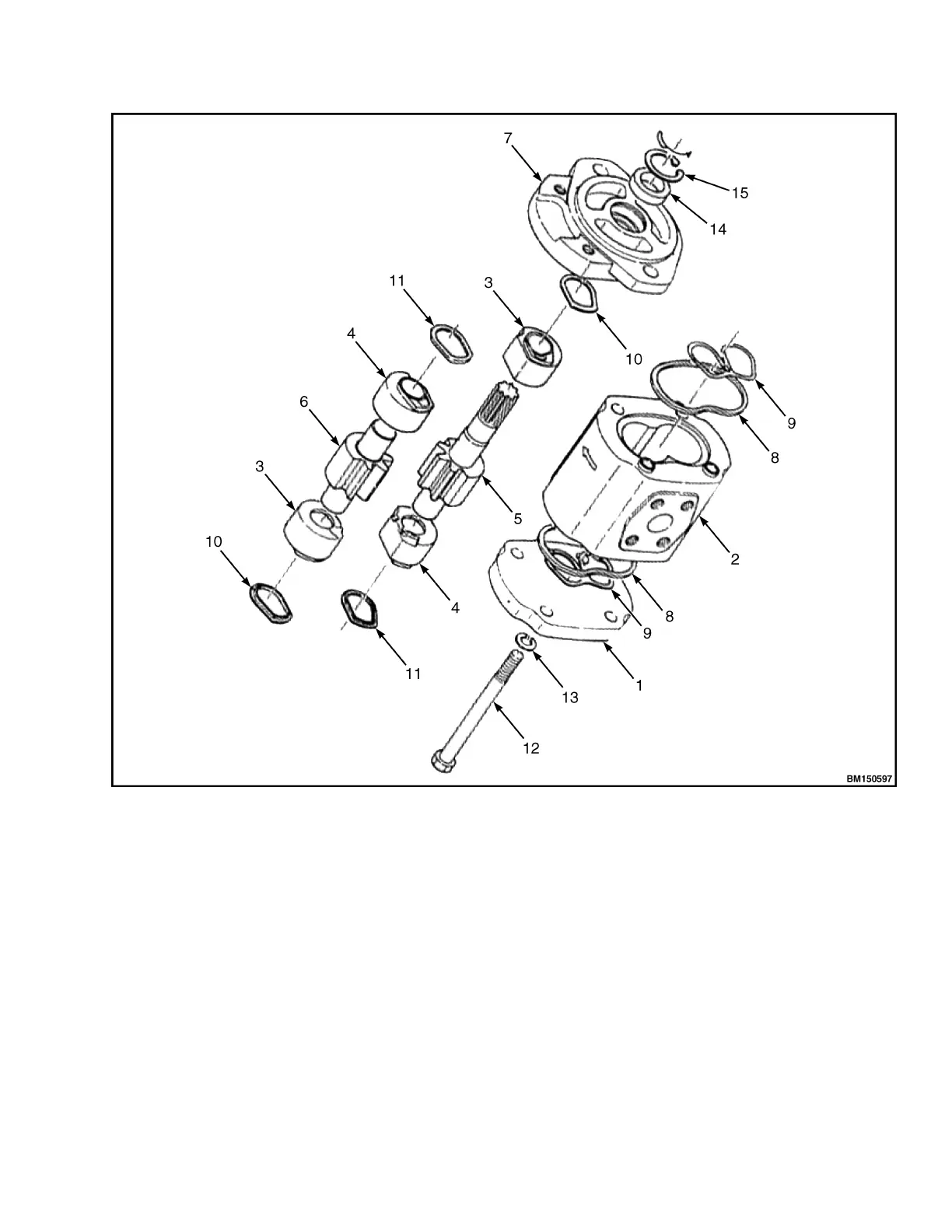

Figure 56. Counterclockwise Rotation of Gear Pump (2-3.5T Diesel Forklift Truck)
8000 YRM 2199 Hydraulic System
57
