Yale Assure Lock YRD450 User Manual

Part of ASSA ABLOYP/N YRD400-KF-0022 Rev ATrusted every day
11
Install Mounting Plate and Exterior Keypad
5
IMPORTANT:
There are 3 bolt sets with your
lock. Choose the bolt length for
your door thickness.
Measurement B, C, or D on
the Door Checker will help you
identify which bolts to use.
13/8" Door Thickness;
use blue Screw Set B
(shortest set)
13/8" - 13/4" Door Thickness;
use black Screw Set C
13/4" - 21/4" Door Thickness;
use silver Screw Set D
(longest set)

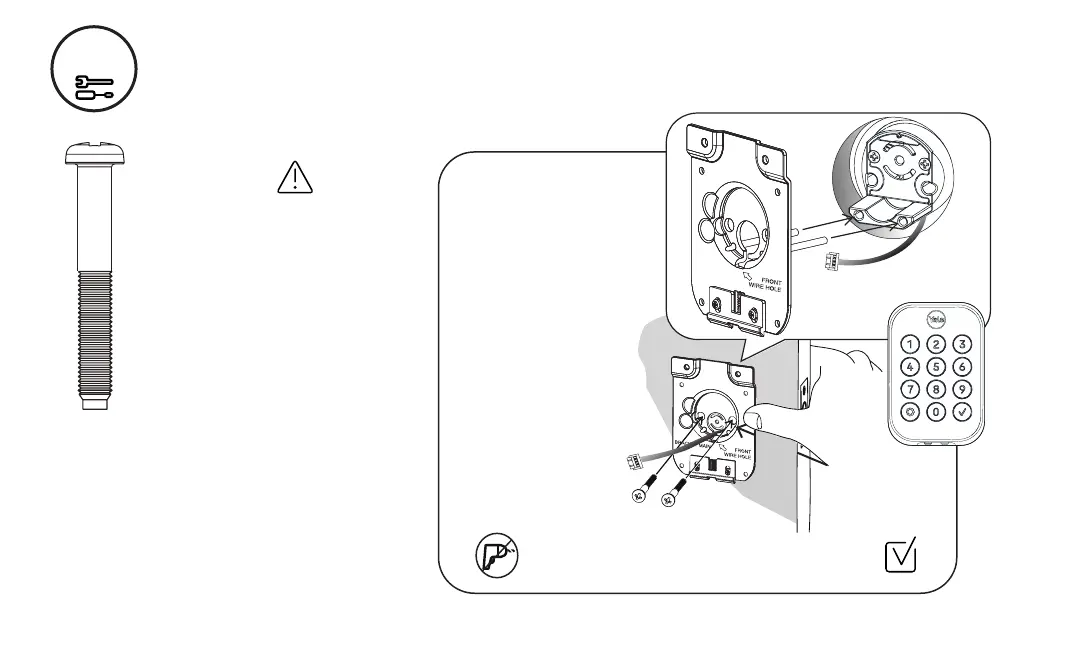

Position keypad on the
outside of door, feeding wire
as shown.
Hold keypad to front of door,
while positioning plate to
inside of door.
Guide wire through the
‘front wire hole’ in plate.
Insert 2 bolts through
the plate.
Hand tighten bolts with a
Phillips screwdriver,
ensuring plate and
keypad are straight.
Inside and Outside of Door
Use Phillips screwdriver when attaching mounting
plate bolts to keypad.
x2
Bolt Set C, Black
foraStandard
1-3/4" Door
Thickness
Keypad
Wire
Front Wire
Hole
