P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

10

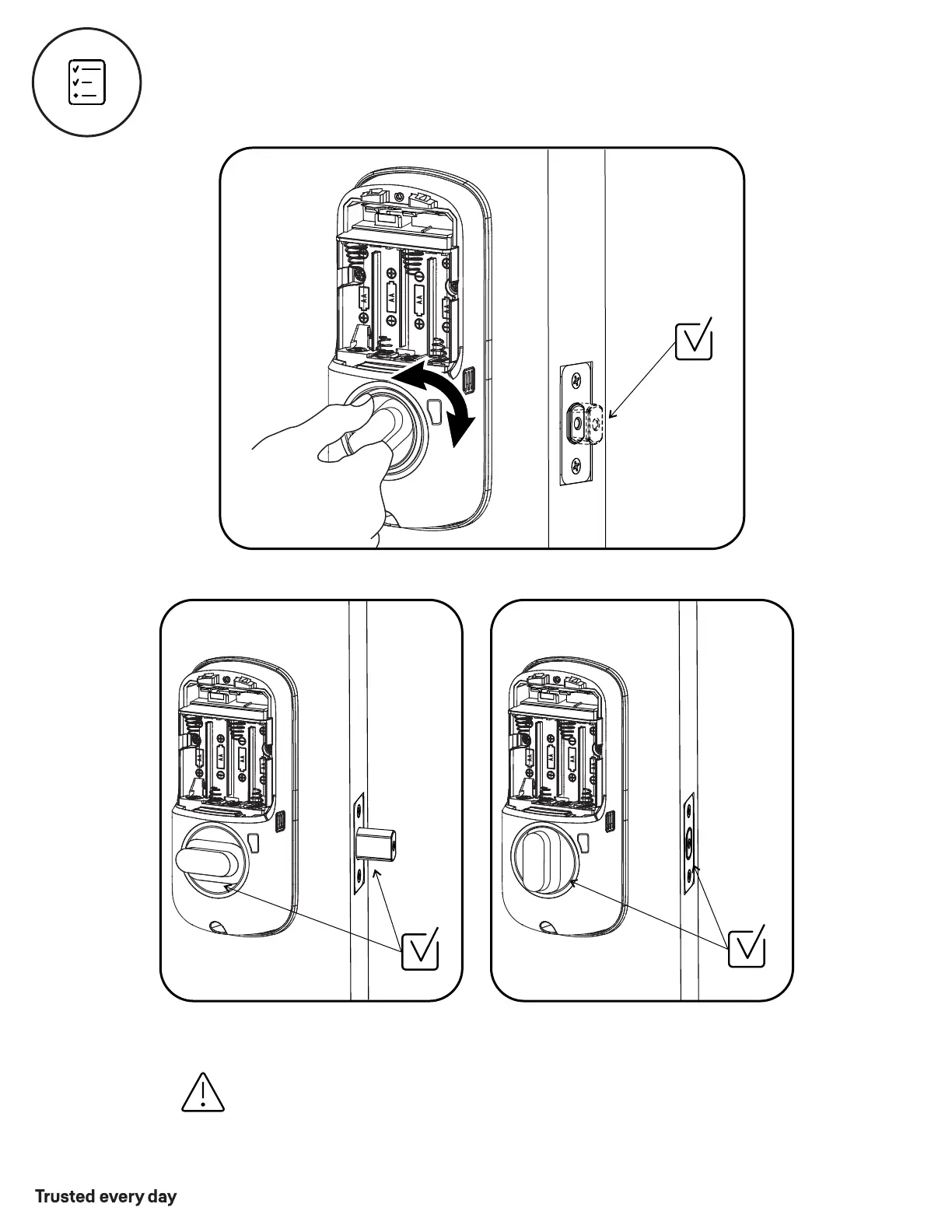

Test Mechanical Operation

If thumbturn operation fails, check the installation beginning with Step 7.
