Yale Assure Lock YRD622 User Manual

P/N YRD226-MNL-0001 Rev J
Part of ASSA ABLOY
2

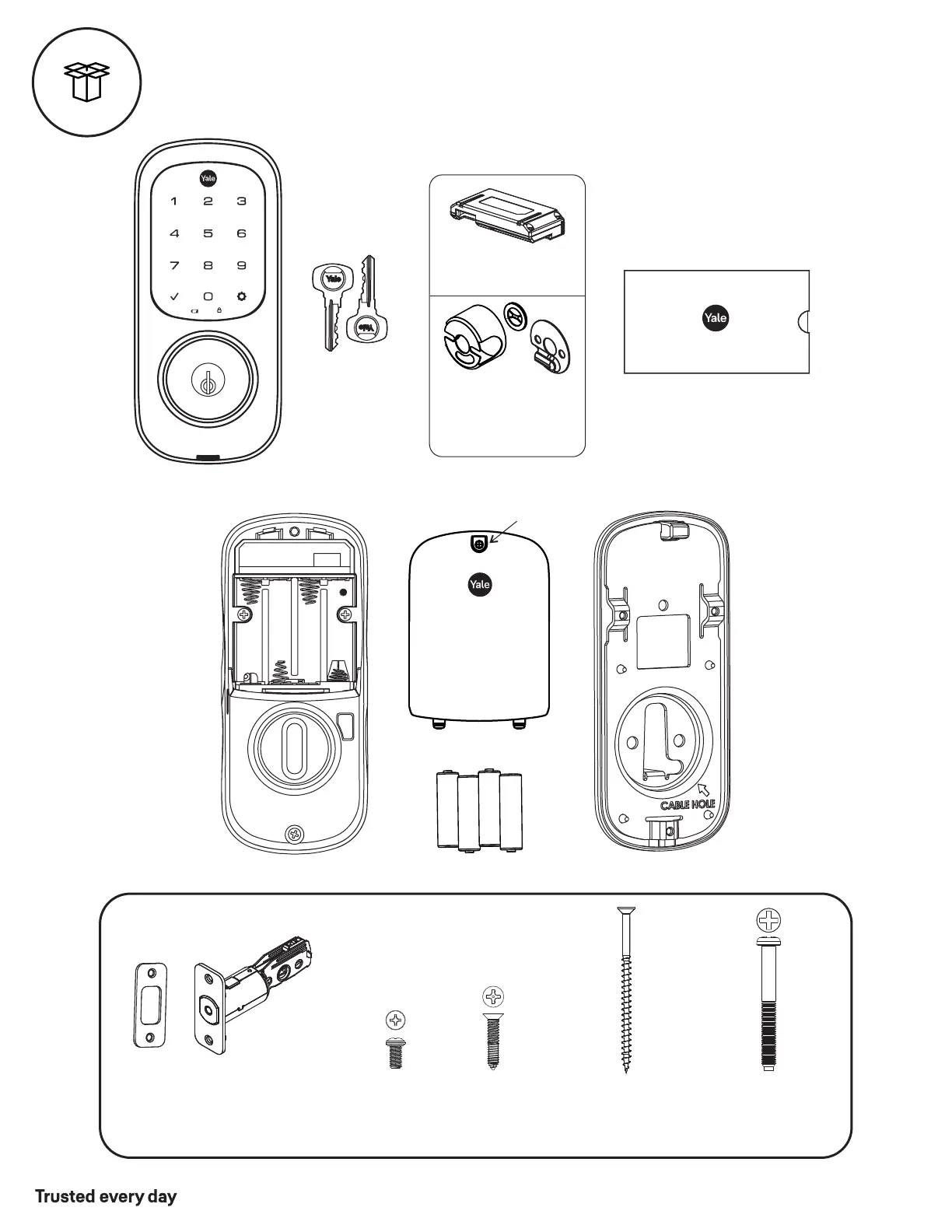

What's In The Box
Installation Guide
and Door Template
Mounting Hardware
Strike Plate
Adjustable
Deadbolt
(AYRDB-DRIVE
Adjustable Drive-In Deadbolt
available for purchase)
Strike Plate
and
Deadbolt Screws
Inside Lock
Screws
Optional
Security
Strike Plate Screws
Let's Get Started
Touchscreen Keypad
Long Through-bolt for
1-3/4" - 2-1/4"
Door Thickness
Yale Smart Module
(with select models)
Optional
Fire Kit Parts
(Required for
Fire Rated Openings)
x2 x2 x2
x4
Keys
Loosen screw to
remove cover
Battery Cover
Mounting Plate
Inside Lock 4 AA Batteries
