Table 7. Proc_Cal_005: Lower Valve Output Threshold (Continued)
Information: Leave truck running at idle after performing Proc_Cal_002.
Action 1: Activate Lift Control to Position Attachment 0.6 m (2 ft) up
with no load on the forks/attachment. If the forks/attachment are/is
not installed, ensure that the attachment will lower when the control
is activated. It may be necessary to apply a load (approximately
90 kg (200 lb) to the attachment.
You Will See: Main Menu
Passwords
Step 1: Press or
Until You See: Main Menu
Calibrations
Step 2: Press * One Time
You Will See: Calibrations
Lift Valve Output
Step 3: Press or
Until You See: Calibrations
Lower Valve Output
Step 4: Press * One Time
You Will See: Lower Valve Output
Press * at Creep

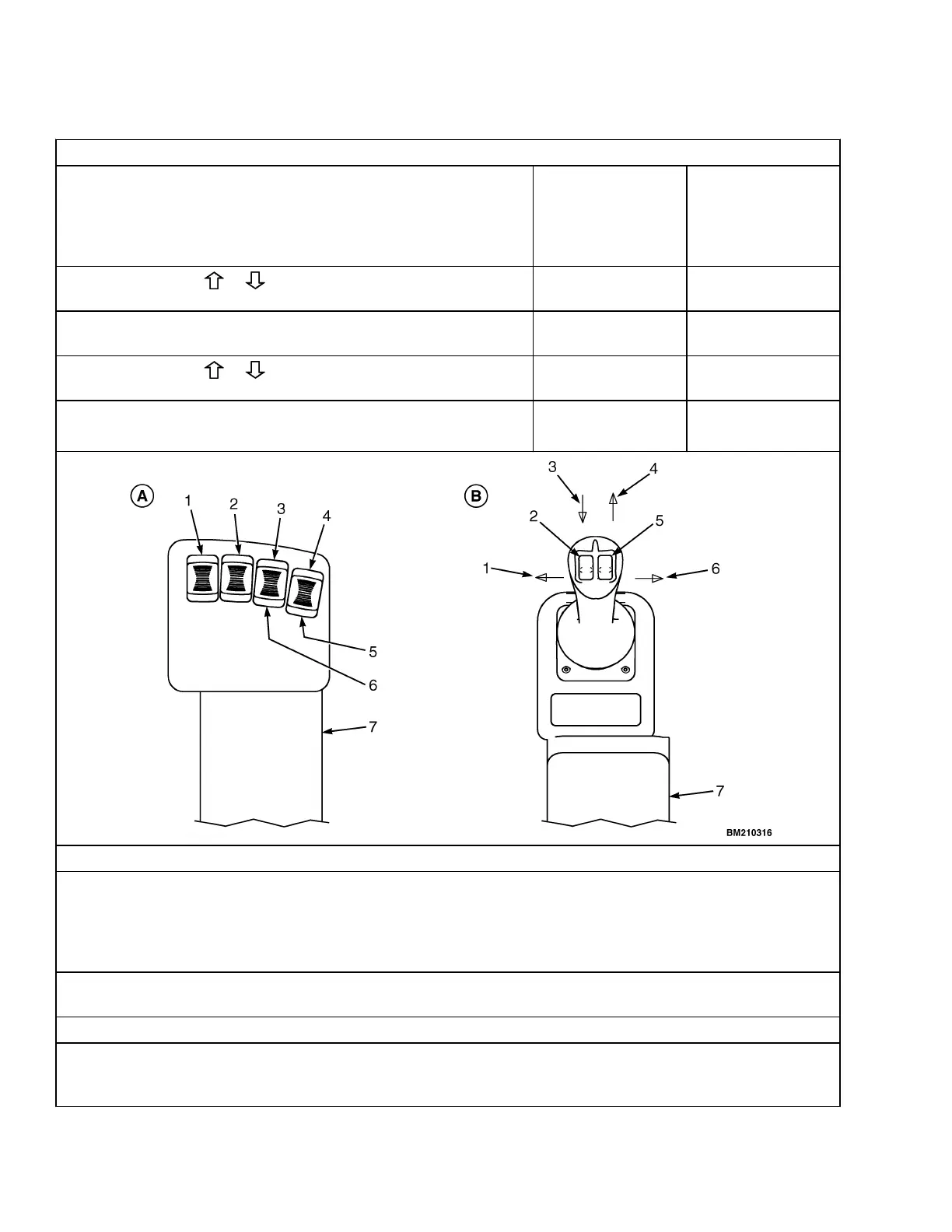

A. E-HYD CONTROL LEVERS
1. LIFT/LOWER
DIRECTION LIFT ↓
DIRECTION
LOWER ↑
2.TILT
DIRECTION BACK
↓
DIRECTION FWD
↑
3.*AUX 1 OR AUX
2
DIRECTION A ↑
DIRECTION B ↓
4.*AUX 2 OR AUX
3
DIRECTION A ↑
DIRECTION B ↓
5.*FOURTH
LEVER
6.*THIRD LEVER
7.SEAT ARMREST
*AUX 2 IS IN THE FOURTH LEVER LOCATION EXCEPT AS FOLLOWS: WITH 5 FUNCTION VALVE WITH CLAMPING ATTACHMENT,
AUX 2 IS IN THE THIRD LEVER LOCATION.
2. JOYSTICK
1. TILT BACK 2. AUX 1
DIRECTION A ↑
DIRECTION B ↓
3. LIFT ↓
4. ↑ LOWER
5. AUX 2
DIRECTION A ↑
DIRECTION B ↓
6. TILT FORWARD
7. SEAT ARMREST
Proc_Cal_005: Lower Valve Output Threshold 8000 YRM 1134
