Yale inTouch Installation And Programming Instructions

7

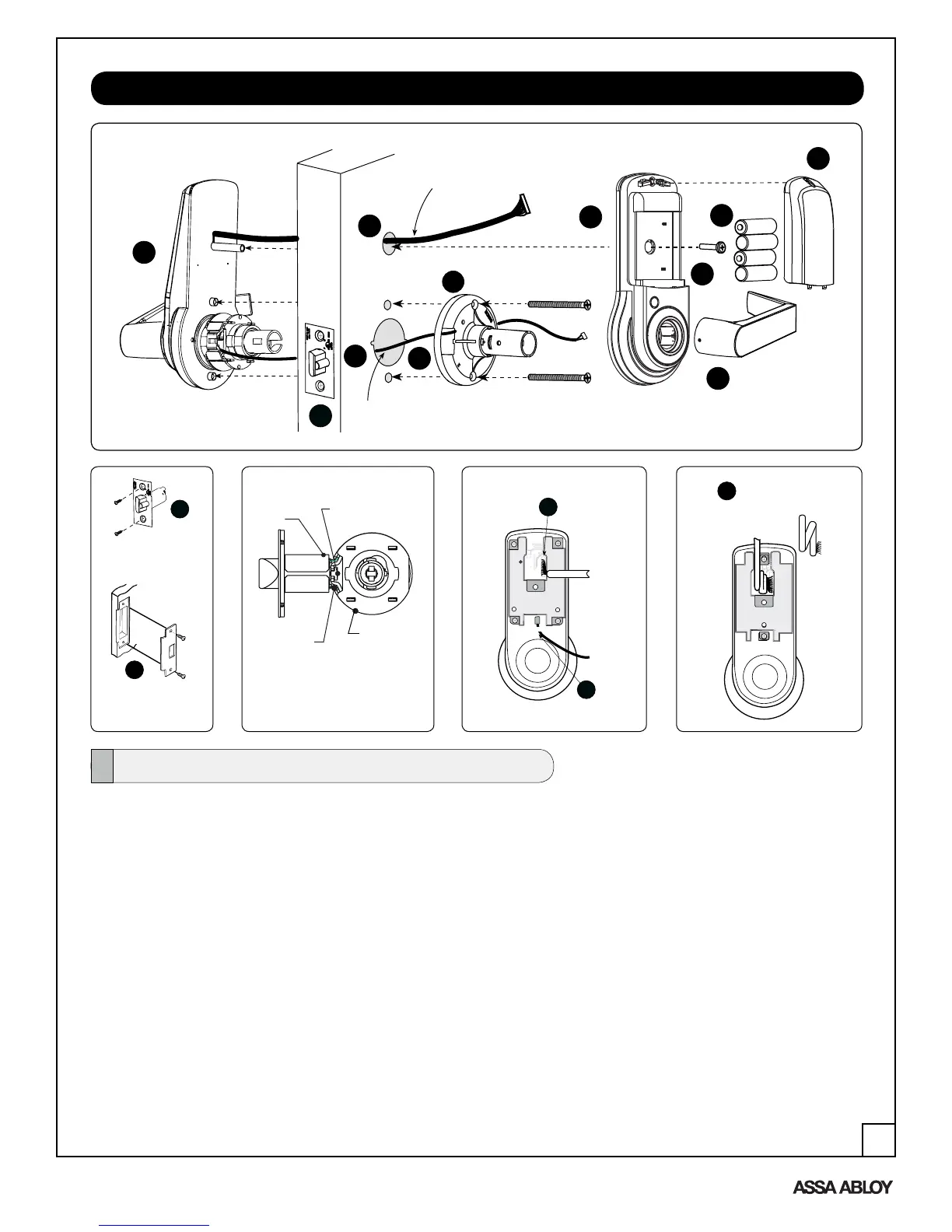

Outside Assembly
T
ouchscreen
Cable
Escutcheon Screw
(1) 10-32 x 3/4" Pan Head
With Star Washer Screw
3
3b
4
5
8
9
10
11
12
Motor Cable
Support Assembly Screws
(2) 10-32 x 2-1/2" Flat
Inside Assembly
Head Machine Screws
3a
1
EXT-PWR / REMOTE / M
O
T
O
R
T
ouchscreen
Cable
Connector
EXT-PWR / REMOTE / MOTOR
6
7
8b
Touchscreen Cable
Routing
"Z" Fold
2
1
INSTALL LOCK
1. Install latchbolt in door. Be sure that bevel
edge of bolt faces strike. Attach with two
screws supplied.
2. Install strike on the door frame.
3. Insert outside assembly through door, making
sure that the lock body frame hooks latch case
and retractor engages bolt tail(s). DO NOT
FORCE (See Detail A above). If lock body
does not engage latch easily, check door
preparation for errors.
a. Guide motor cable (red and black wires)
through 2-1/8" diameter hole.
b. Guide touchscreen cable through 3/4"
diameter upper hole.
4. Guide motor cable through rectangular
hole on inside support assembly.
5. Slide inside support assembly over outside
assembly, lining up top and bottom screw
guides with holes in door. Secure both
assemblies with (2) 10-32 x 2-1/2" flat head
machine screws. Do not over-tighten.
6. Attach motor cable connector to the
inside escutcheon PC board header
marked “MOTOR.”
7. Attach the touchscreen cable connector to
the inside escutcheon PC board header
as illustrated.
Directions
(2) 8-32 x 3/4"
Flat Head
Combination Screws
(2) 8-32 x 3/4"
Flat Head
Combination Screws
Retractor
Engages
Bolt Tail(s)
Lock Body
Frame
Engages
Latchcase
Latch
Detail A
