Install your lock with the door open.
Do not close your door until all the steps are completed.
1. Refer to measurements G and H on the Door Checker (page 6) to measure face
bore hole. If the hole is 11/2” (G), unscrew the two small screws and remove the
adapter.
2. Make sure your deadbolt latch is in an unlocked position.
Refer to step 2, point 4 (page 13) for guidance on how to
retract it, if needed.

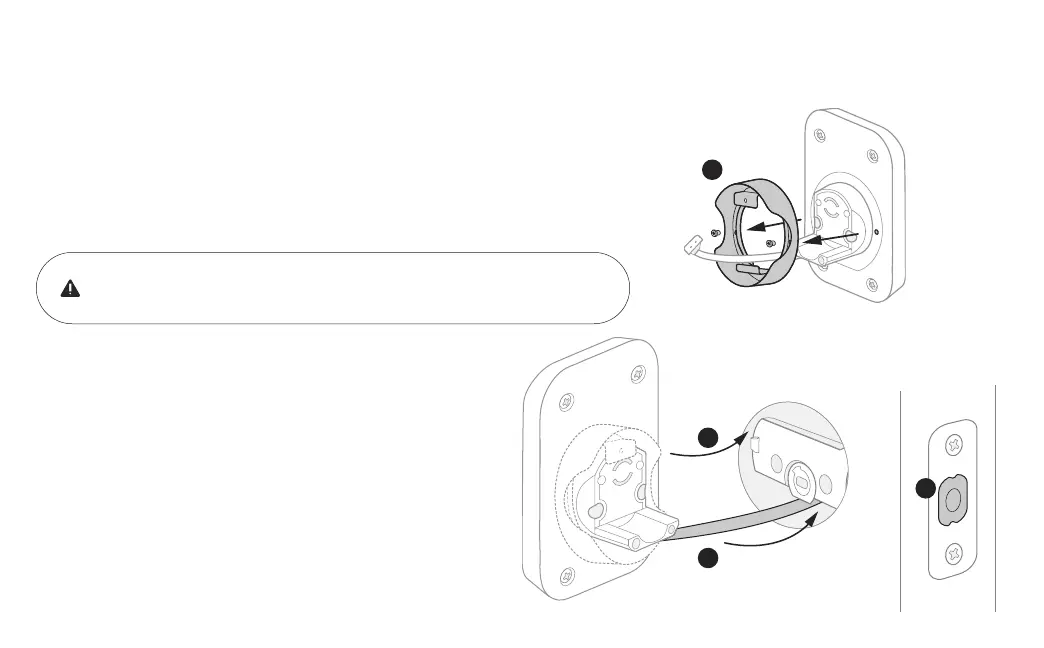

3. Guide the wire cable under the deadbolt, making sure the
keypad is on the exterior part of your door.
4. Slide the keypad in place. Hold or secure in place until
the mounting plate is installed in the next step.
4
3
2
3
Install Exterior Keypad
