GENERAL CHASSIS
4-9
EAS59C1407

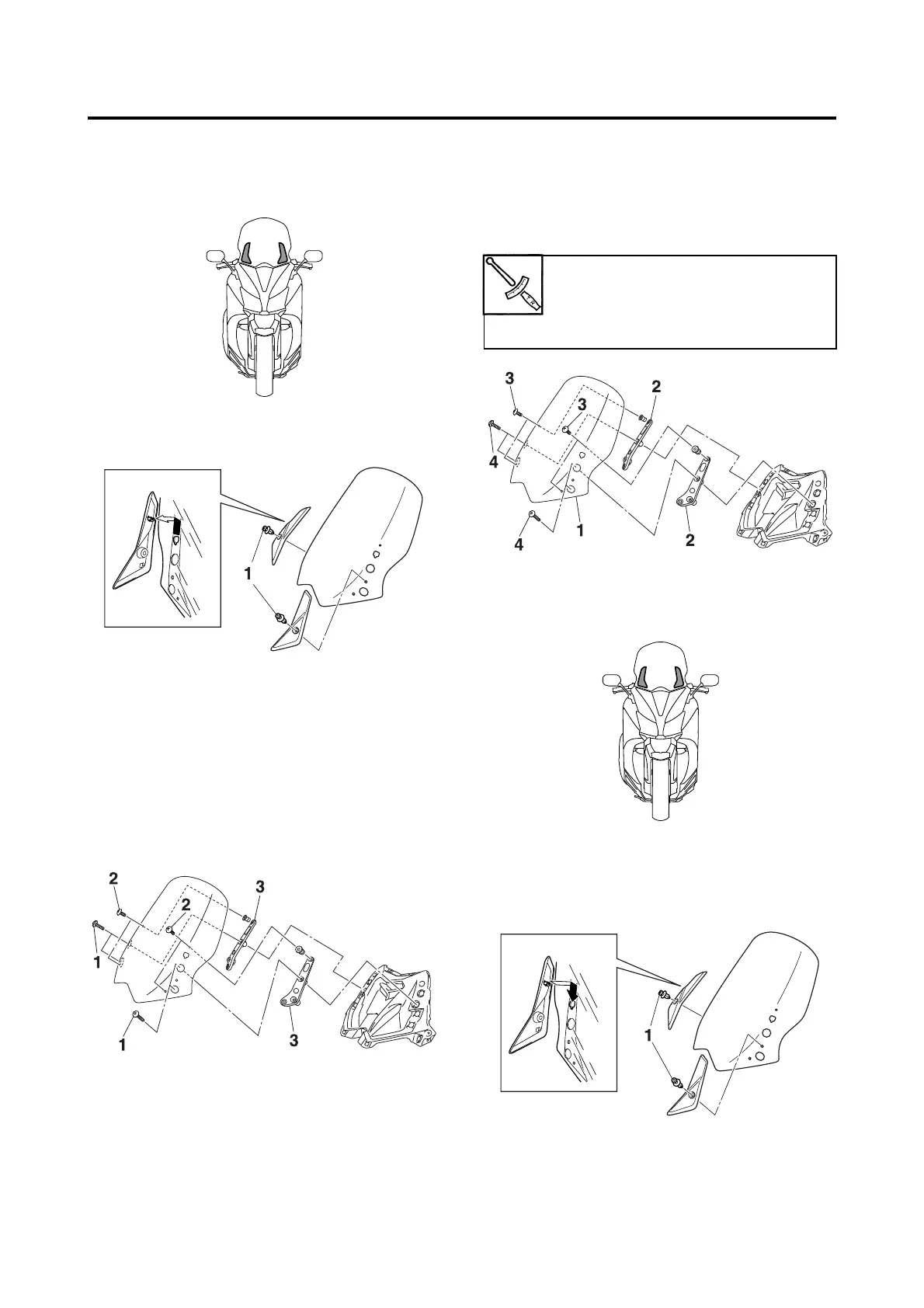

REMOVING THE WINDSHIELD
1. Remove:
• Windshield cover
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the quick fastener “1”.
b. Slide it upwards and pull it toward you.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Remove:
• Windshield
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Removing the windshield bracket bolts “1”.
b. Removing the windshield assembly.
c. Removing the windshield screws “2”.
d. Removing the windshield brackets “3”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS59C1408
INSTALLING THE WINDSHIELD
1. Install:
• Windshield
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Assembling the windshield “1” and wind-
shield brackets “2” with the windshield
screws “3”.
b. Installing the windshield assembly with the
windshield bracket bolts “4”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Install:
• Windshield cover
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Insert the projection into the hole and slide
it downwards.
b. Installing the quick fastener “1”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Windshield screw
0.5 Nm (0.05 m·kgf, 0.36 ft·lbf)
Windshield bracket bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
