THROTTLE BODY
7-5
EAS26970
THROTTLE BODY

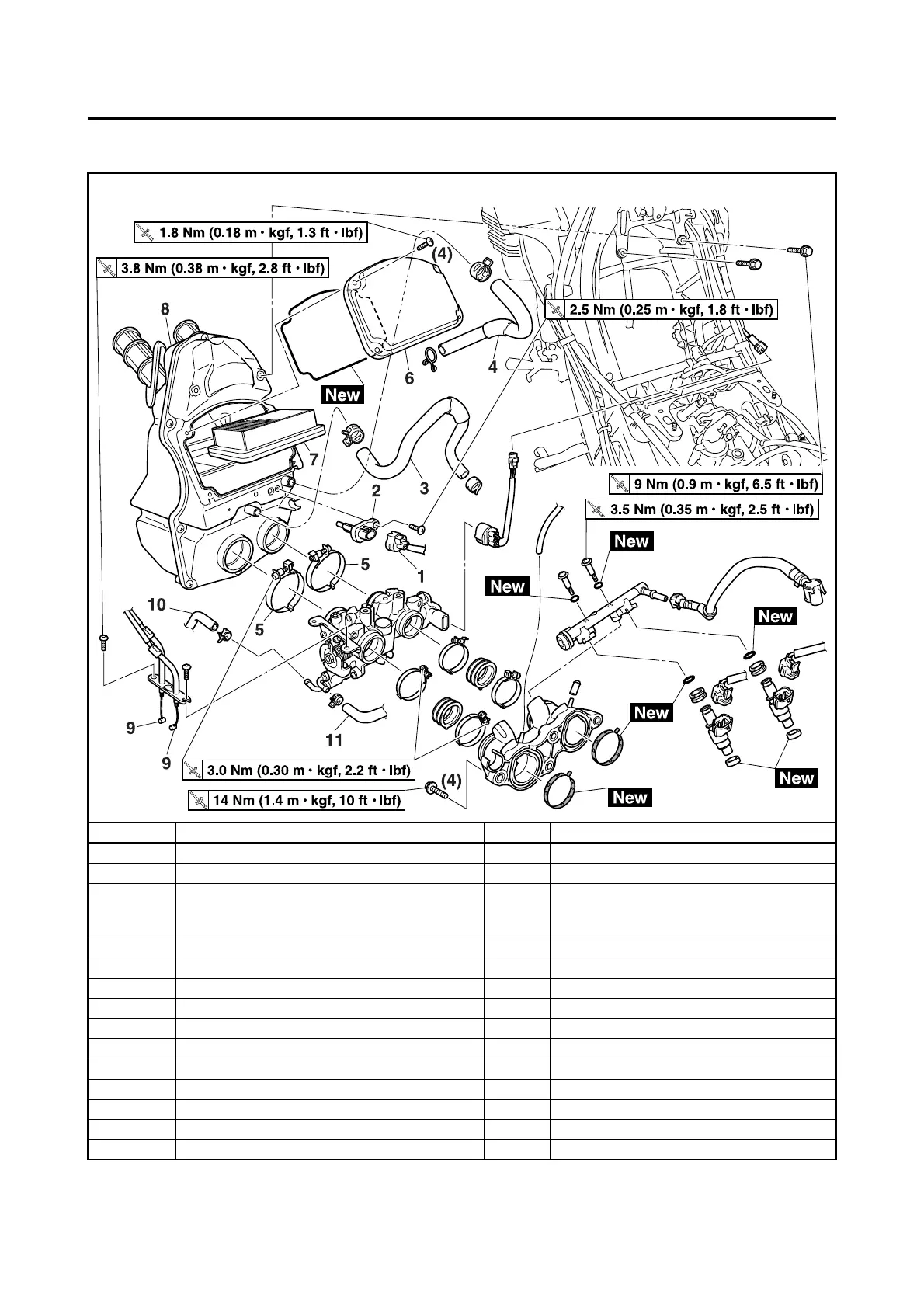

Removing the throttle body
Order Job/Parts to remove Q’ty Remarks
Storage box Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-30.
1 Intake air temperature sensor coupler 1 Disconnect.
2 Intake air temperature sensor 1
3 Cylinder head breather hose 1
4 Fast idle plunger intake hose 1
5 Air filter case joint clamp 2 Loosen.
6 Air filter case cover 1
7 Air filter element 1
8 Air filter case 1
9 Throttle cable 2 Disconnect.
10 Fast idle plunger outlet coolant hose 1 Disconnect.
11 Fast idle plunger inlet coolant hose 1 Disconnect.
To Next Page
