GENERATOR AND STARTER CLUTCH

5-52

* When replacing the crankshaft position sensor or stator coil, replace them as a set.

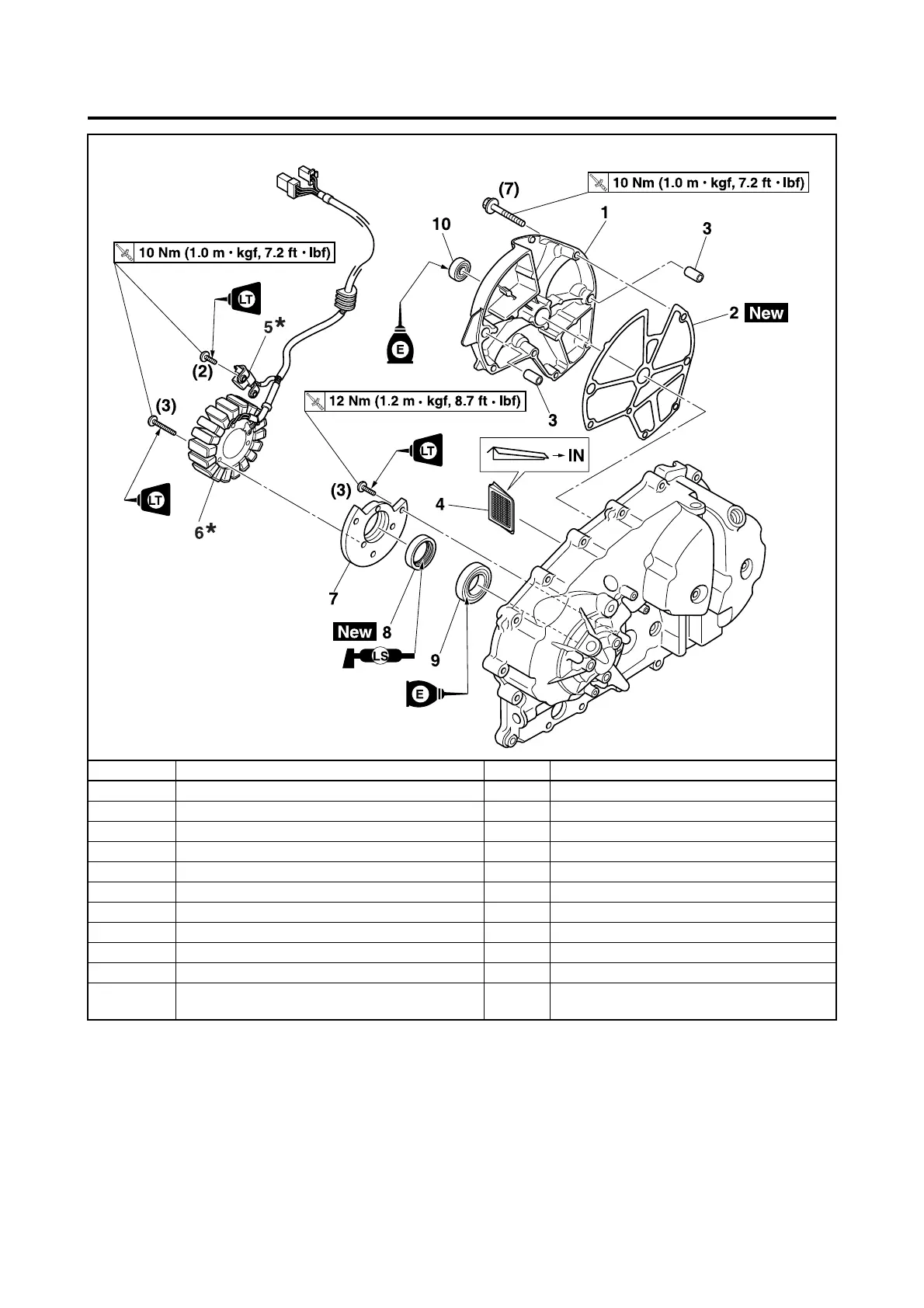

Removing the stator coil and oil tank

Order Job/Parts to remove Q’ty Remarks

1 Oil tank 1

2 Oil tank gasket 1

3Dowel pin 2

4 Oil strainer 1

5 Crankshaft position sensor 1

6 Stator coil 1

7 Bearing cover 1

8 Oil seal 1

9 Bearing 1

10 Bearing 1

For installation, reverse the removal proce-

dure.
