E
2-1
101133*
w
e
r
q
t
y
u
!6
!5
!4
!3
!2
!1
!0
o
i
EMU01206

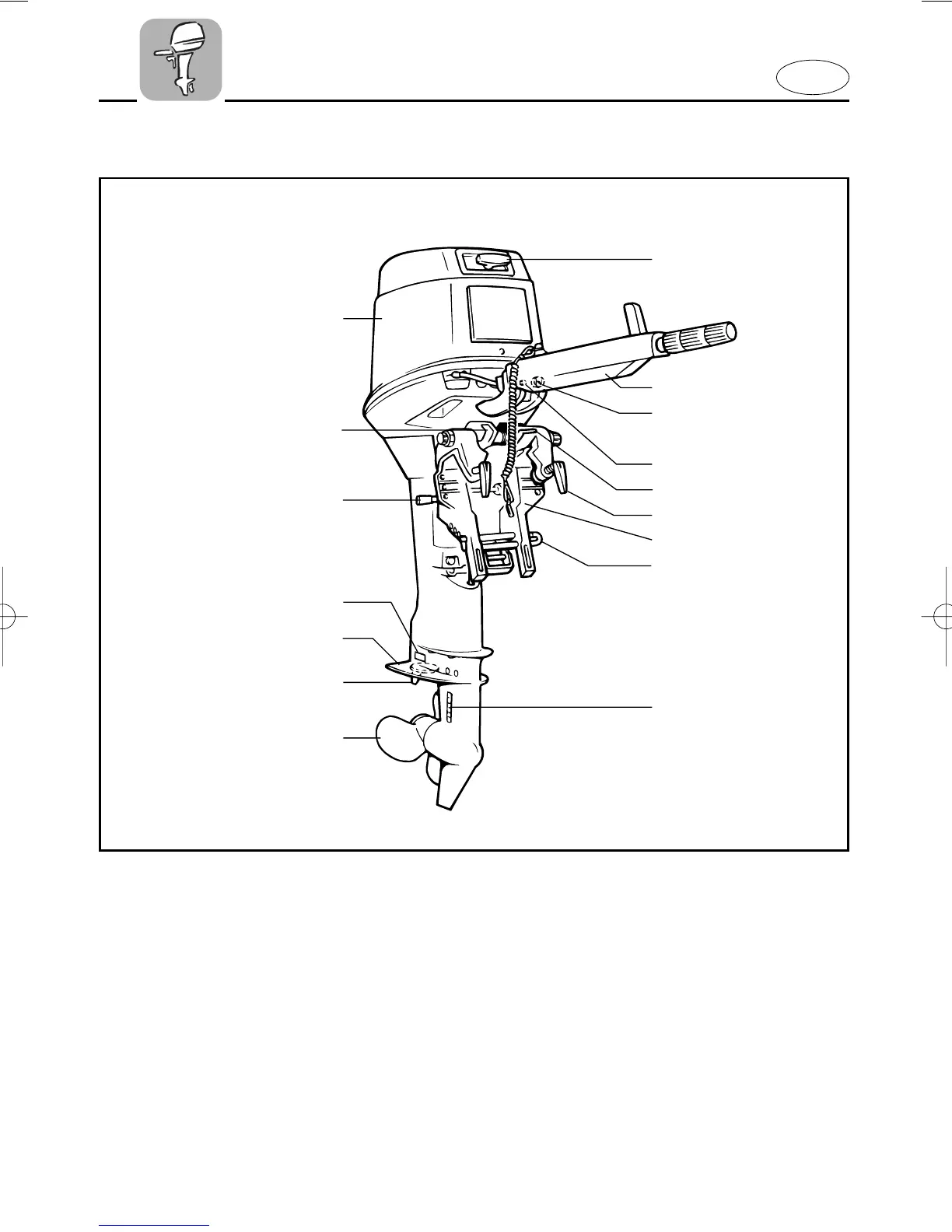

MAIN COMPONENTS
1 Recoil starter handle
2 Multifunction tiller handle
3 Choke knob
4 Warning indicator lamp (Oil/Overheat)
5 Tilt lock lever
6 Transom clamp handle
7 Clamp bracket
8 Trim angle adjusting rod
9 Cooling water inlet
0 Propeller
q Trim tab (Anode)
w Anti-cavitation plate
e Anode
r Tilt support lever
t Shallow water lever
y Top cowling
* May not be exactly as shown; also may not
be included as standard equipment on all
models.
63B-9-19-2 (E) 4/18/01 11:37 AM Page 2
