Oil level indicator
Manual start model

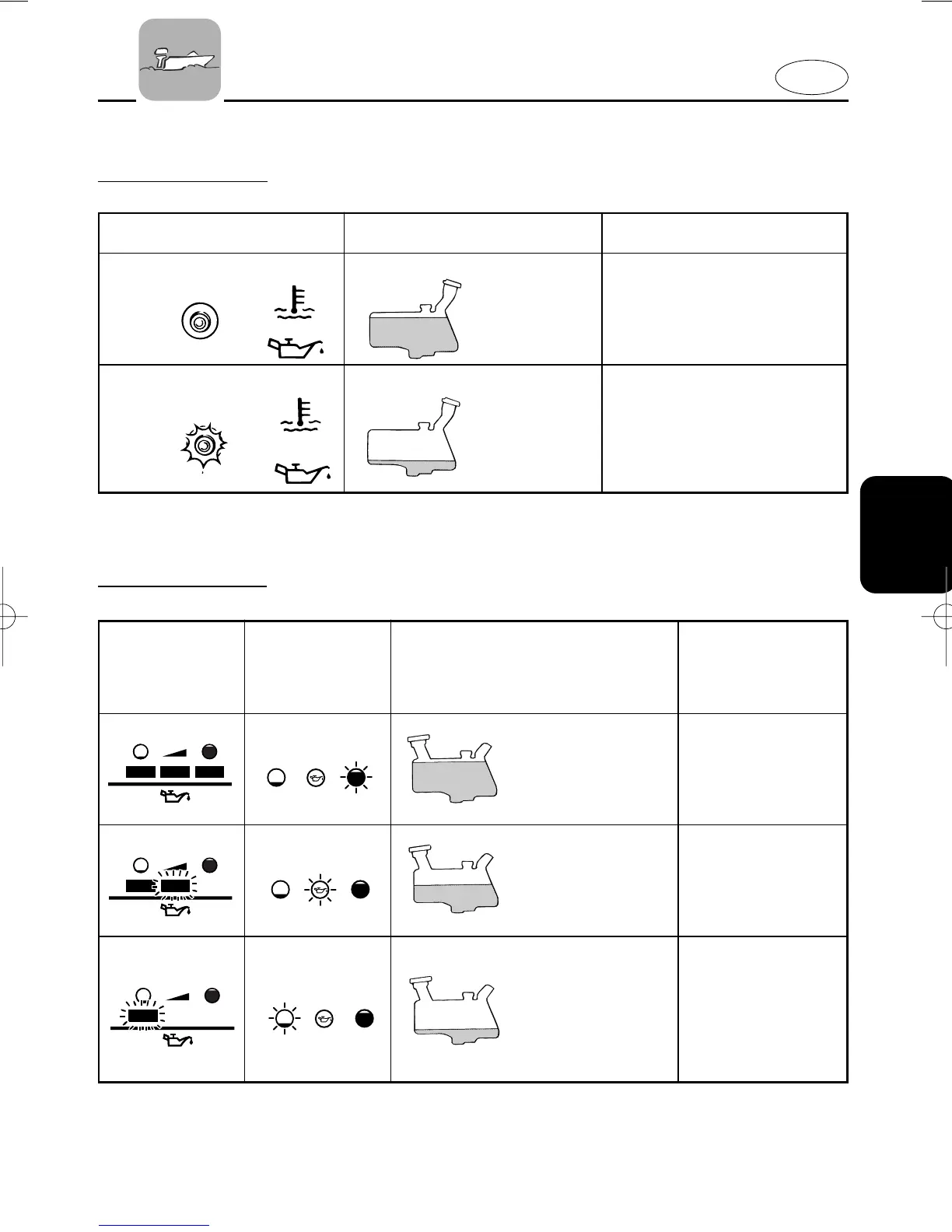

The various oil-level system functions are as follows:
EMD33110
Oil level indicator
Electric start model
The various oil-level system functions are as follows:
Oil level warning lamp RemarksEngine oil tank
OFF
No refilling necessary.
more than 200 cm
3
(0.21 US qt,
0.181 Imp qt)
Red
ON
Buzzer sounds in remote con-
trol box and engine speed is
limited to about 2,000 r/min to
help conserve oil.
Check oil filter for clogging.
Add oil.
200 cm
3
or less (0.21 US qt,
0.181 Imp qt)
Oil level warning
indicator
(Digital tachometer)
Remarks
Oil level warning
indicator lamp
(Analog tachome-
ter/Bottom cowling)
Engine oil tank
No refilling necessary.
Green
Add oil,
refer to oil filling.
Yellow
Buzzer sounds in
remote control box and
engine speed is limited
to about 2,000 r/min to
help conserve oil.
Check oil filter for
clogging.
more than 4 50 cm
3
(0.48 US qt,
0.40 Imp qt)
from 450 cm
3
(0.48 US qt,
0.40 Imp qt)
down to 200 cm
3
(0.21 US qt,
0.18 Imp qt)
200 cm
3
(0.21 US qt,
0.18 Imp qt) or less
Red
