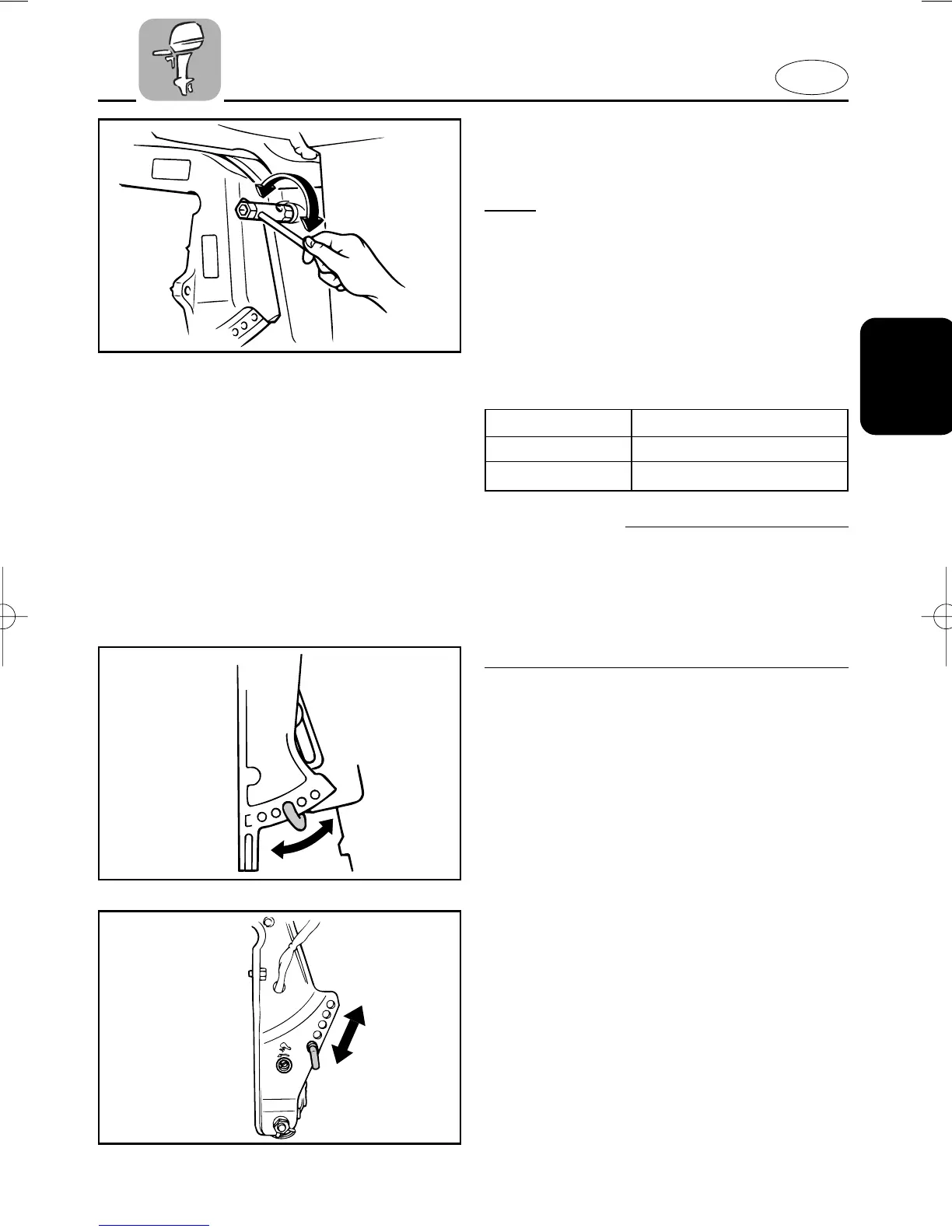

STEERING FRICTION ADJUSTING
SCREW
40MH
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting
screw/bolt is located on the swivel brack-
et.
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
EMD00310
Adjustment
w
Do not overtighten the friction screw/
bolt.
If there is too much resistance, it may be
difficult to steer, which could result in an
accident.
Resistance Screw/bolt
Increased Turn clockwise
Decreased Turn counterclockwise
