NOTE:
●
A special wrench can be obtained at a Yamaha
dealer to make this adjustment.
●
The spring preload setting is determined by
measuring distance A, shown in the illustration.
The shorter distance A is, the higher the spring
preload; the longer distance A is, the lower the
spring preload. With each complete turn of the
adjusting nut, distance A is changed by 1.0 mm
(0.04 in).
CAUTION:
ECB00090
Never turn an adjusting mechanism beyond
the minimum and maximum settings.

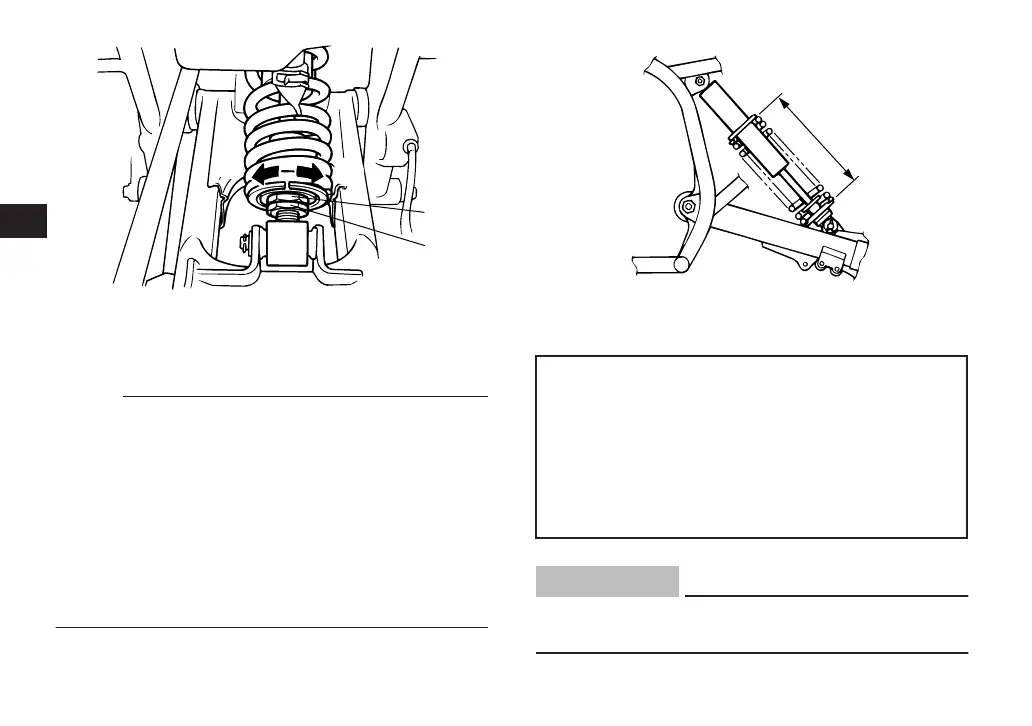

1. Spring preload adjusting nut
2. Locknut
1
2
(b)
(a)
1. Distance A
Spring preload setting:
Minimum (hard):
Distance A = 222 mm (8.7 in)
Standard:
Distance A = 230 mm (9.1 in)
Maximum (soft):
Distance A = 234 mm (9.2 in)
