PERIODIC MAINTENANCE AND MINOR REPAIR
EAU01139
Cowling and panel removal
and installation
The cowlings and panels illustrated
need to be removed to perform
some of the maintenance described
in this chapter.
Refer to this section each time a
cowling or panel has to be removed
or reinstalled.
1. Cowling 2. Panel
6-6

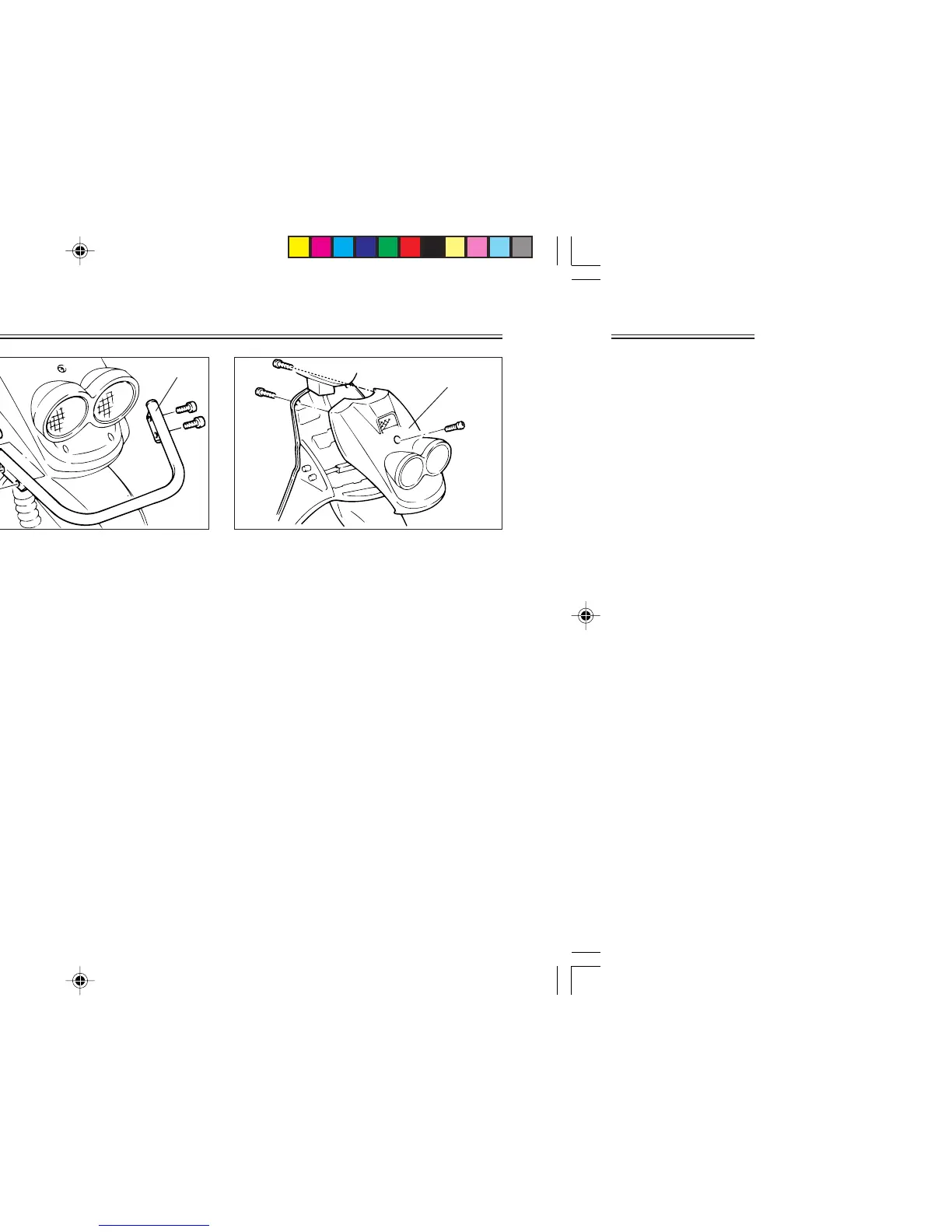

1. Protection bar 1. Cowling A
1
1
2
1
EAUT0483
Cowling A
To remove
1. Remove the front protection bar
by removing the bolts.
2. Remove the cowling screws,
disconnect the headlight leads
coupler and remove the cowl-
ing.
4VP-F8199-E1.pm65 2/4/2004, 4:21 PM32
