PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
EAUT1528
Headlight bulb replacement
This scooter is equipped with a S1
bulb headlight. If the headlight bulb
burns out, replace it as follows:
1. Remove cowling A. (See page
6-6 for cowling removal and in-
stallation procedures.)
2. Turn the bulb holder counter-
clockwise to remove it and re-
move the defective bulb.
1. Bulb holder
1
EW000119
w
Keep flammable products and your
hands away from a bulb while it is
on, as it is hot. Do not touch a bulb
until it cools down.
3. Put a new bulb into position and
secure it in place with the bulb
holder.
EC000105
cC
Avoid touching the glass part of a
bulb. Keep it free from oil; other-
wise, the transparency of the glass,
life of the bulb, and luminous flux
will be adversely affected. If oil gets
on a bulb, thoroughly clean it with
a cloth moistened with alcohol or
lacquer thinner.
4. Install the cowling.
If the headlight beam adjustment is
necessary, ask a Yamaha dealer to
make that adjustment.
EAU00855
Turn signal and taillight bulb
replacement
1. Remove the screws and the
lense.
2. Push the bulb inward and turn
it counterclockwise.

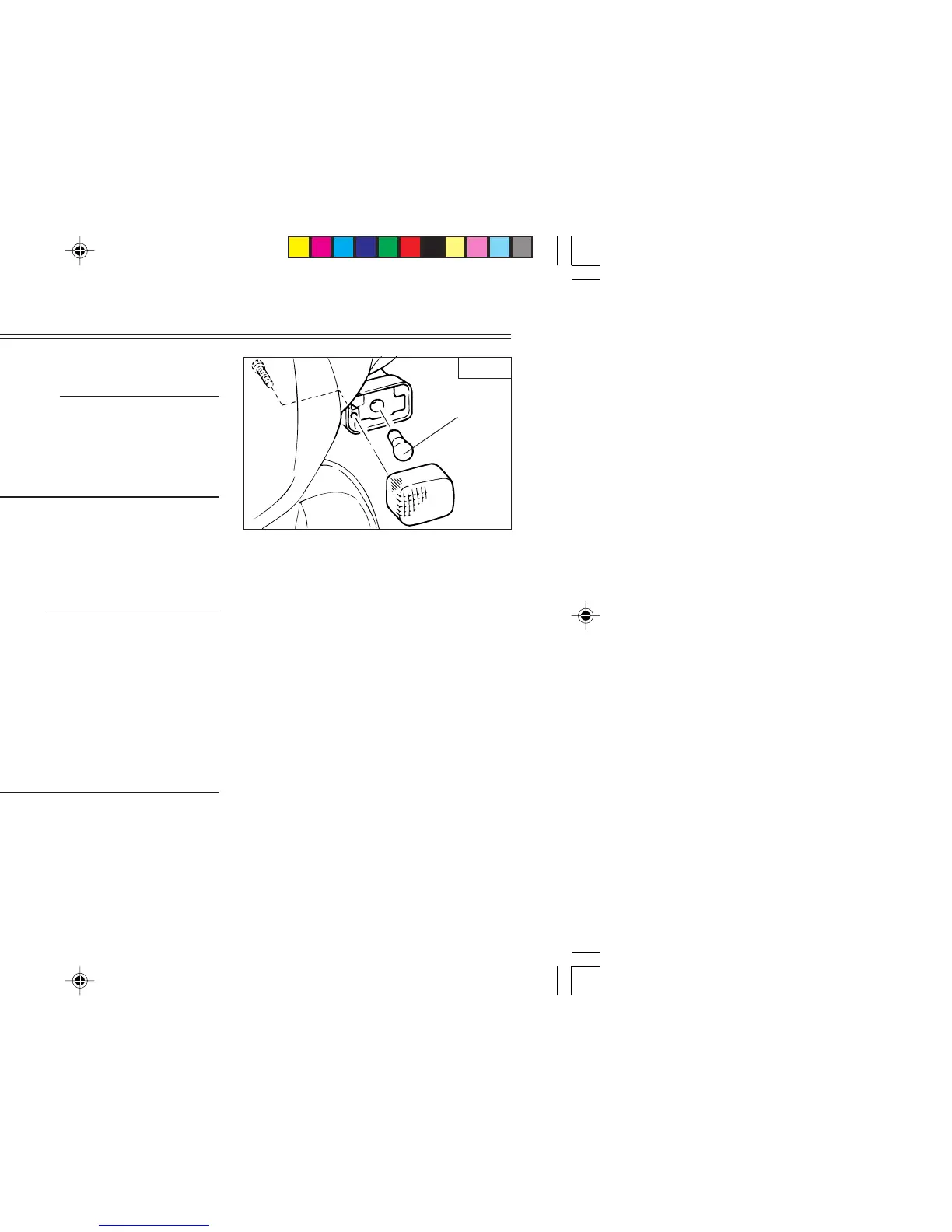

1. Turn signal bulb
Front
1
4VP-F8199-E1.pm65 2/4/2004, 4:21 PM47
