PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
1
1. Air filter element

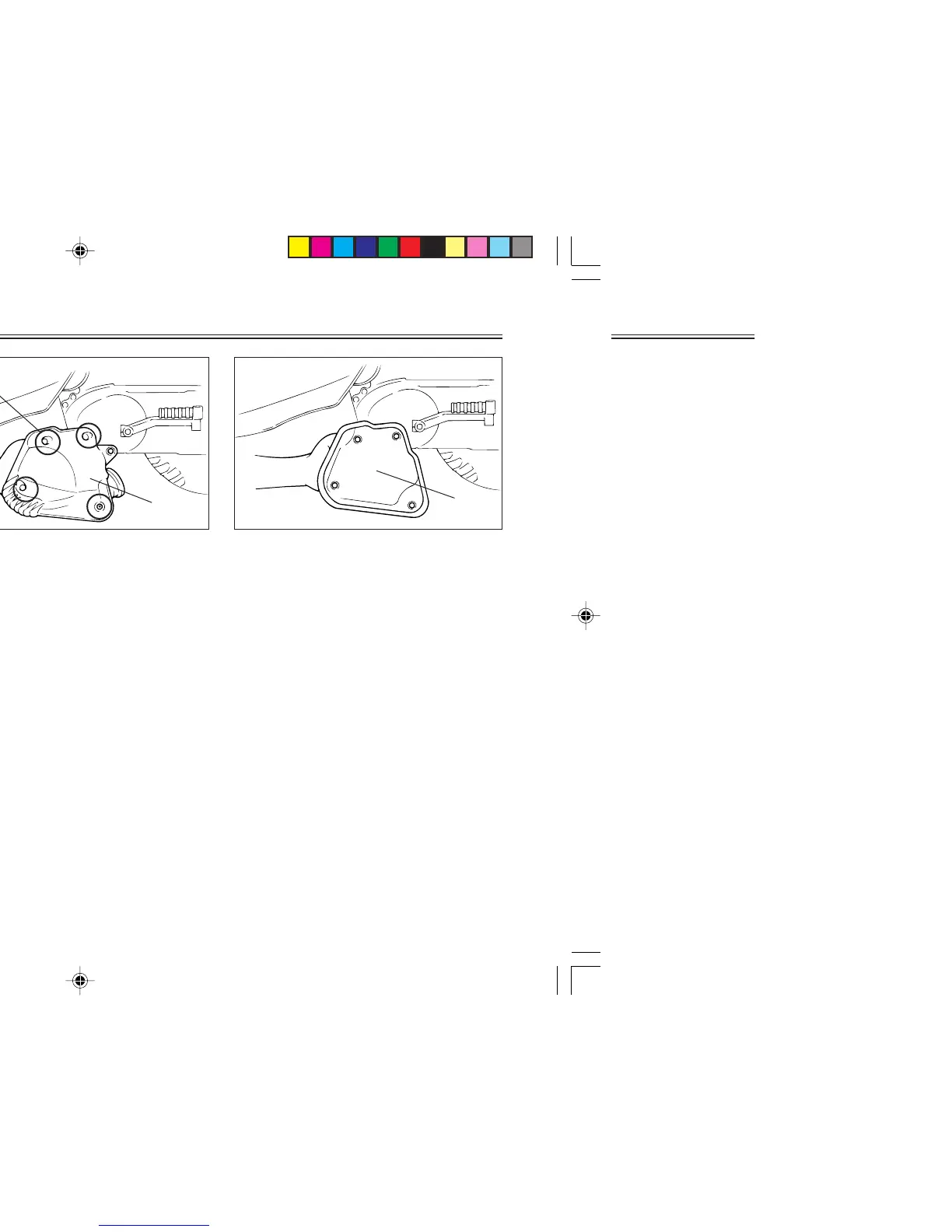

1. Air filter case 2. Bolt 3.Screw
2
3
1
1. Air filter cover 2. Screw (×4)
2
1
3. Remove the air filter case bolt,
loosen the air filter case joint
screw, and then remove the air
filter case.
4. Remove the air filter case cover
by removing the screws, and
then remove the air filter ele-
ment.
5. Wash the air filter element gen-
tly, but thoroughly in solvent.
6. Squeeze out the excess solvent
and let the air filter element dry.
