Yamaha CD-S3000 Service Manual

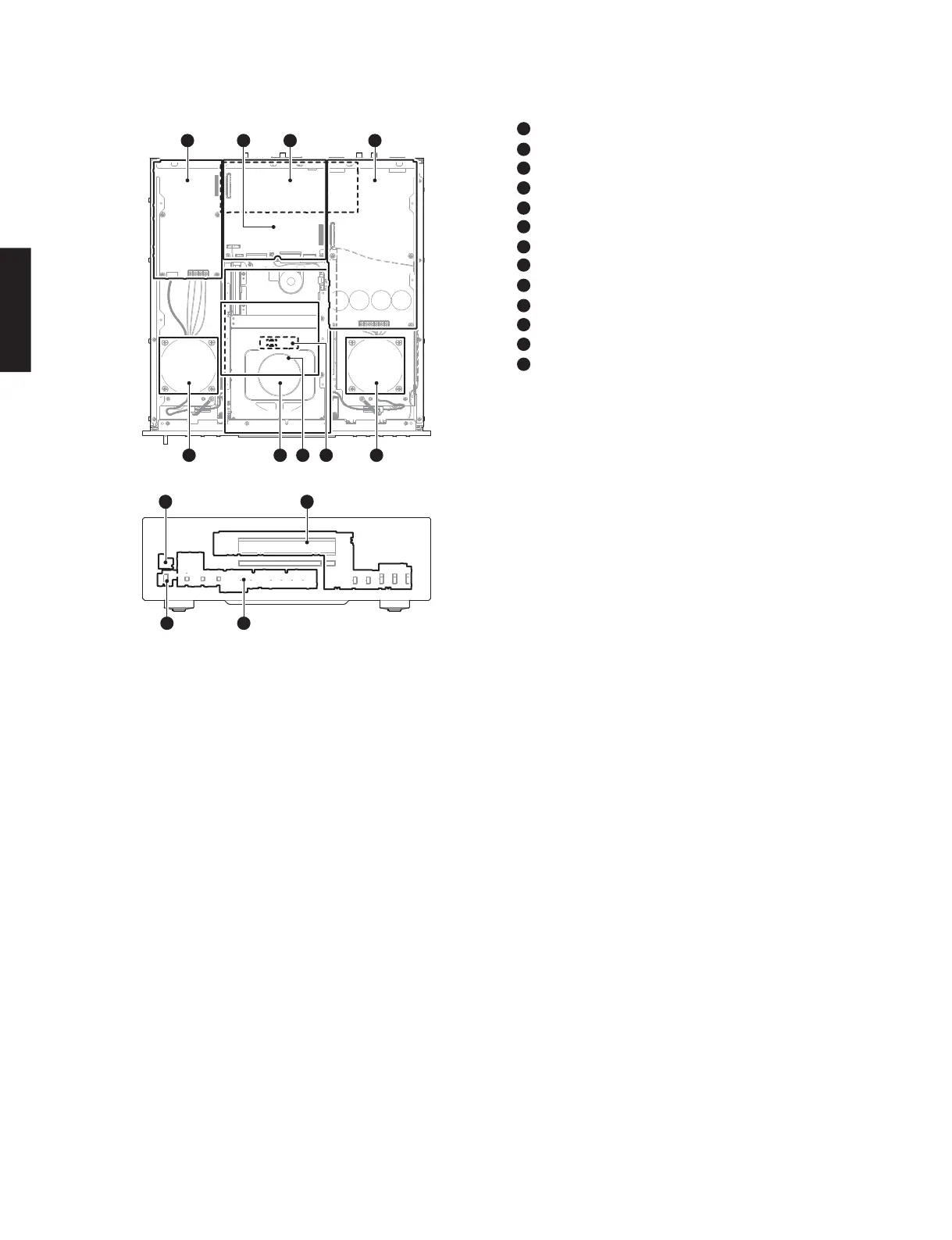

■ INTERNAL VIEW
FRONT (1) P.C.B.
DIGITAL P.C.B.
FRONT (2) P.C.B.
AUDIO P.C.B.
POWER TRANSFORMER for AUDIO
FRONT (7) P.C.B.
MODULE BOARD
LOADER MECHANISM UNIT
POWER TRANSFORMER for DIGITAL/FRONT
FRONT (5) P.C.B.
FRONT (3) P.C.B.
FRONT (4) P.C.B.
FRONT (6) P.C.B.
Top view
Front view
1
2
3
4
5
6
7
8
9
10
11
12
13
1110
5
431
13 12
9876
2
■ SERVICE PRECAUTIONS /
サービス時の注意事項
安全対策
・ この製品の内部には高電圧部分があり危険です。修理
の際は、絶縁性の手袋を使用するなどの安全対策を
行ってください。
・ 下記のコンデンサには電源を OFF にした後も電荷が残
り、高電圧が維持されており危険です。
修理作業前に放電用抵抗（5k Ω /10W）を下記の各コ
ンデンサの端子間に接続して放電してください。
放電所用時間は各々約 30 秒間です。
FRONT（1）P.C.B. の C914 〜 C917
FRONT（2）P.C.B. の C955
AUDIOP.C.B. の C305 〜 C308
詳しくは “PRINTEDCIRCUITBOARDS” を参照してくだ
さい。
Safety measures
• Some internal parts in this product contain high voltages
and are dangerous.
Be sure to take safety measures during servicing, such
as wearing insulating gloves.
• Note that the capacitors indicated below are dangerous
even after the power is turned off because an electric
charge remains and a high voltage continues to exist
there.
Before starting any repair work, connect a discharging
resistor (5 k-ohms/10 W) to the terminals of each
capacitor indicated below to discharge electricity.
The time required for discharging is about 30 seconds
per each.
C914 to C917 on FRONT (1) P.C.B.
C955 on FRONT (2) P.C.B.
C305 to C308 on AUDIO P.C.B.
For details, refer to “PRINTED CIRCUIT BOARDS”.
計測機器取り扱い上の注意
本機の音声出力は BALANCEDOUT 接続となっていま
すので、音声出力端子に接続する計測器のアース側は
フローティング状態に保つ必要があります。
Precaution for handling measuring instrument
Since the audio signal output of this unit is BALANCED
OUT connected, the ground side of the measuring
instrument to be connected to the audio signal output
connector MUST be kept in floating condition.
12
CD-S3000
CD-S3000

Yamaha CD-S3000 Specifications

General

Frequency range	2 - 20000 Hz
Audio formats supported	MP3, WMA
Signal-to-Noise Ratio (SNR)	116 dB
Total Harmonic Distortion (THD)	0.002 %
CD-R playback	Yes
Playback disc formats	CD audio, SACD
CD changer	No
Device type	HiFi CD player
Product color	Silver
Disc loading type	Tray
Number of optical discs	1 discs
USB 2.0 ports quantity	1

Weight and Dimensions

Depth	440 mm
Width	435 mm
Height	142 mm
Weight	19200 g
