Flexible flat cable
Flexible flat cable
Under side view
to FRONT (3)
(CB909)
90˚ mountain fold
90˚ valley fold
to DIGITAL (CB405)
Letter side
Wire length exposed on the upper side EXCLUDING housing
Route the twisted wires
(ovoid from entering area)
Letter side
Letter side
Letter side
to Loader mechanism unit
25 mm
(1")
40 mm
(1-5/8")
40 mm
(1-5/8")
25 mm
(1")
10 mm (3/8")
12 mm (1/2")
20 mm
(3/4")
30 mm
(1-1/8")
ø18 mm
100 mm
(3-7/8")
110 mm
(4-3/8")
130 mm
(5-1/8")
RED
BLUE
to FRONT (3) (CB910)
Top view Bottom view
Front panel (View A)
DIGITAL
FRONT (1)
FRONT (2)
AC IN
AUDIO
FRONT (3)
FRONT (4)
FRONT (5)
FRONT (6)
RED
BLUE
Route the wire between FRAME/FRONT and FRONT PANEL
Dress the wire
by cord clamp
Put the wire
into SLOT HOLE
Put the wire
into SLOT HOLE
Settle the FFC
by style-pin
Letter side
to Loader mechanism unit
CB909
CB910
CB908
CB912
CB911
CB913
CB408 CB1
CB410CB902
BLACK
RED
GRAY
BROWN
CB405
CB402 CB404
CB401
CB406
CB901
CB407
to FRONT (3)
(CB910)
to DIGITAL (CB406)
to FRONT (3)
(CB910)
to Module board
(CN211)
RED
BLUE
BLACK
GRAY
BROWN
WHITE
45˚ 45˚
to Module board
(CN210)
W903
W901
View A
POWER
TRANSFORMER
LOADER MECHANISM UNIT
POWER
TRANSFORMER
ABCDEFGH I J
1
2
3
4
5
6
7
48
CD-S3000

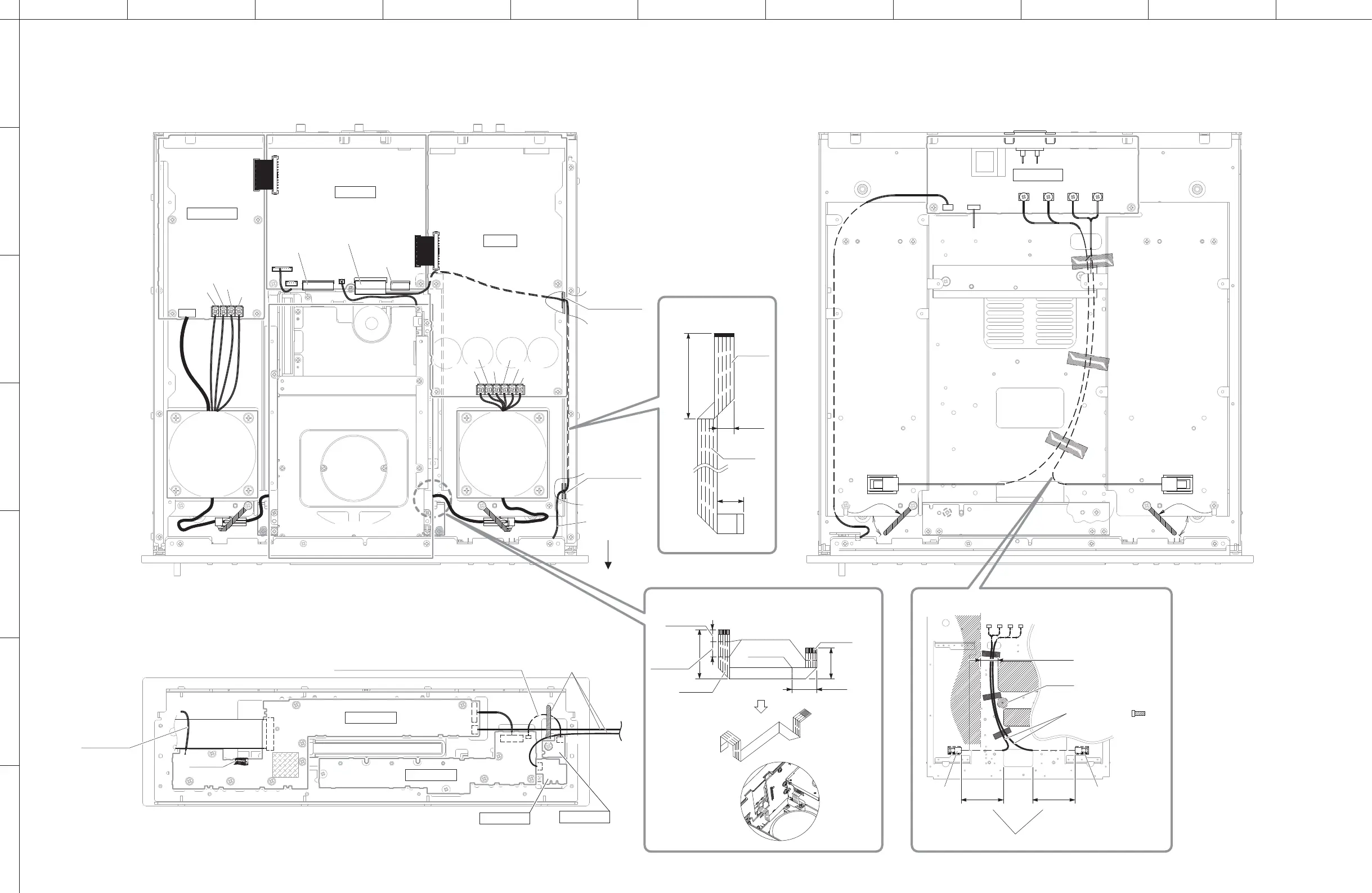

WIRING DIAGRAMS
OVERALL ASSEMBLY
