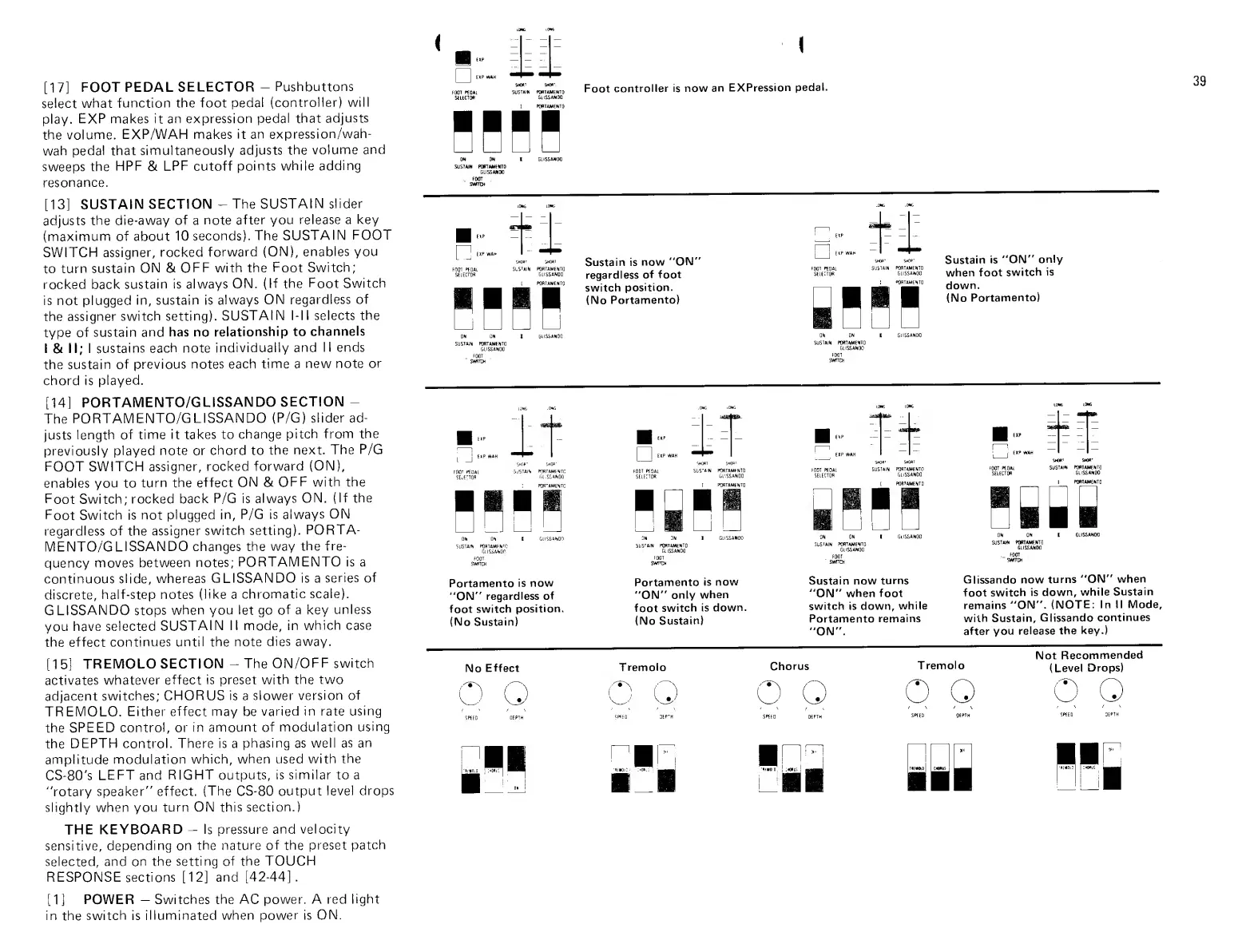

[17]
FOOT
PEDAL
SELECTOR
-
Pushbuttons
select
what
function the foot
pedal
(controller)
will
play.
EXP makes
it an
expression pedal
that
adjusts
the
volume.
EXP/WAH makes
it an
expression/wah-
wah pedal
that
simultaneously
adjusts
the
volume
and
sweeps the
HPF
&
LPF
cutoff
points
while adding
resonance.
[13]
SUSTAIN
SECTION
-
The SUSTAIN
slider
adjusts
the
die-away of a
note
after
you
release a key
(maximum of
about
10
seconds).
The
SUSTAIN FOOT
SWITCH
assigner,
rocked
forward (ON),
enables you
to
turn
sustain
ON
&
OFF with
the Foot
Switch;
rocked back
sustain
is always
ON.
(If the
Foot
Switch
is not plugged
in, sustain is
always
ON
regardless of
the
assigner
switch setting).
SUSTAIN
l-ll selects
the
type
of
sustain
and
has
no
relationship
to
channels
I
&
II; I
sustains
each note
individually
and
II ends
the
sustain of
previous
notes each
time
a
new note
or
chord is
played.
[14]
PORTAMENTO/GLISSANDO
SECTION
-
The
PORTAMENTO/GLISSANDO
(P/G) slider ad-
justs
length
of
time it
takes to
change
pitch from
the
previously
played
note
or
chord
to
the
next.
The
P/G
FOOT
SWITCH
assigner,
rocked
forward
(ON),
enables
you
to
turn the effect
ON
&
OFF
with the
Foot
Switch; rocked
back
P/G
is
always
ON.
(If the
Foot
Switch is
not
plugged in,
P/G is always
ON
regardless
of the
assigner
switch setting).
PORTA-
MENTO/GLISSANDO
changes
the way
the fre-
quency
moves
between notes;
PORTAMENTO is a
continuous
slide,
whereas
GLISSANDO is a
series of
discrete,
half-step notes
(like
a
chromatic
scale).
G
LISSANDO stops
when you let
go
of
a key
unless
you
have
selected
SUSTAIN
It mode, in
which case
the effect
continues
until
the
note
dies away.
[15]
TREMOLO
SECTION
-
The
ON/OFF
switch
activates
whatever effect
is preset
with the
two
adjacent
switches;
CHORUS is
a
slower
version of
TREMOLO.
Either effect may be
varied in rate
using
the
SPEED
control,
or
in amount of
modulation
using
the
DEPTH control. There is a
phasing
as
well
as an
amplitude
modulation
which,
when
used
with
the
CS-80's
LEFT and
RIGHT outputs,
is similar to a
"rotary
speaker" effect.
(The
CS-80
output
level drops
slightly when
you
turn ON this
section.)
THE
KEYBOARD
-
Is
pressure
and
velocity
sensitive,
depending on
the nature of the
preset
patch
selected,
and
on
the setting of
the
TOUCH
RESPONSE sections
[12]
and
[42-44].
[1]
POWER
-
Switches the AC
power. A red
light
in
the
switch
is
illuminated
when power is
ON.
D'
Foot
controller is
now
an
EXPression
pedal.
39
1
POflTAMENTO
BBHH
[
POfllAMtNIO
GHBB
Sustain
is
now
"ON"
regardless
of foot
switch
position.
(No
Portamento)
Portamento
is now
"ON"
regardless
of
foot
switch
position.
(No
Sustain)
No
Effect
o o
BHBB
Sustain
is
"ON"
only
when
foot
switch
is
down.
(No
Portamento)
D.
POR'^MEMC
[
PORTAMENTO
1_
'^^J^'" ™-n , 1 r-^ T^'
BBBB
ByBB
BBBB
BBBB
I
GLISSANDO
Portamento
is now
"ON"
only
when
foot
switch
is
down.
(No
Sustain)
Sustain now
turns
"ON"
when foot
switch is down,
while
Portamento
remains
"ON".
Glissando
now
turns
"ON"
when
foot
switch
is
down,
while
Sustain
remains
"ON".
(NOTE:
In II Mode,
with Sustain,
Glissando
continues
after you
release
the
key.)
Tremolo
r\
Chorus
in^
Tremolo
o o
m
Not
Recommended
(Level
Drops)
D
O
F:
