13
DBR10/DBR12/DBR15
B-3. Baffl e 12 Assembly/Baffl e 15 Assembly
(Time required: About 4 minutes)
B-3-1 Remove the grille 12 assembly/grille 15 assembly.
(See procedure B-1.)
B-3-2
Remove the loud speaker (woofer). (See procedure B-2.)
B-3-3 DBR12 :
Remove the fourteen (14) screws marked [200A]. The
baf e 12 assembly can then be removed.
(Fig. B-5, Fig. B-6)
DBR15 :
Remove the sixteen (16) screws marked [200B]. The
baf e 15 assembly can then be removed.
(Fig. B-5, Fig. B-6)
*
When installing the baffle 12 assembly/baffle 15
assembly, fi rst tighten the ten (10)/twelve (12) priority
screws in order as shown in Fig. B-6.
B-3-4 Disconnect the connectors of the LF 12 connector
assembly/LF 15 connector assembly (red/black), HF 12
connector assembly/HF 15 connector assembly (yellow/
blue) from the amp assembly 12/amp assembly 15.
(Fig. B-5, Photo B-1)
* Take care not to open the
baffle 12 assembly/baffle
15 assembly
too wide or these connector assemblies
may be damaged. (Fig. B-5, Photo B-1)
/)&211(&725
$66(0%/<5('
(WC 組立 LF12 束線赤(+)
/)&211(&725$66(0%/<%/$&.²
(WC 組立 LF12 束線黒(−)
/)&211(&725$66(0%/<5('
(WC 組立 LF15 束線赤(+)
/)&211(&725
$66(0%/<%/$&.²
(WC 組立 LF15 束線黒(−)
/28'63($.(5:22)(5
(スピーカ(ウーファー)
O'%5O'%5

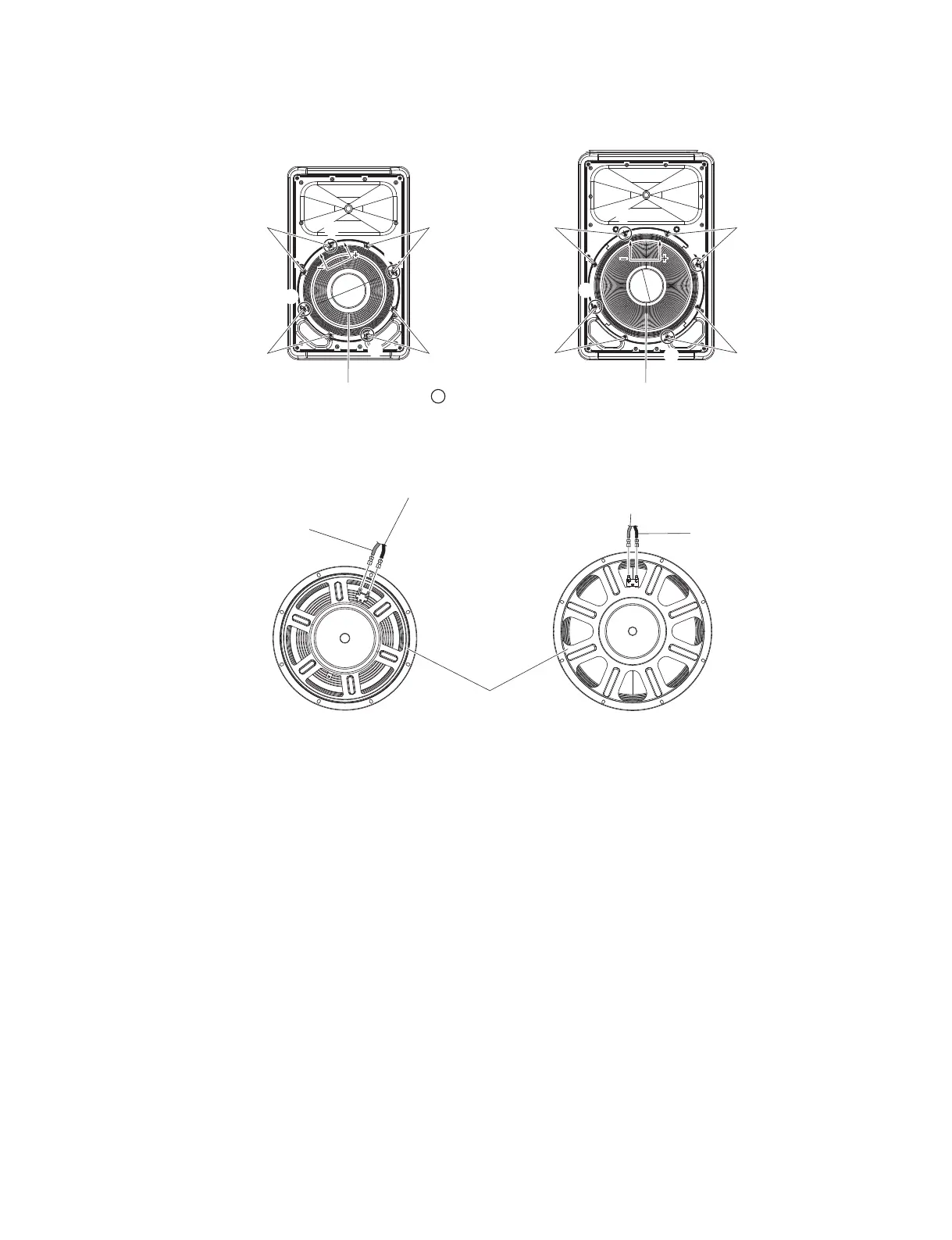

Fig. B-3
(図B-3)
Fig. B-4
(図B-4)
B-3. バッフル12組立/バッフル15組立
(所要時間約4分)
B-3-1 グリル12組立/グリル15組立を外します。
(B-1項参照)
B-3-2 スピーカ(ウーファー)を外します。(B-2項参照)
B-3-3 DBR12:
[200A]のジ14本を外して、バッフル12組立を外
します。(図B-5、図B-6)
DBR15:
[200B]のジ16本を外して、バッフル15組立を外
します。(図B-5、図B-6)
バッフル12組立/バッフル15組立を取り付けるときは
優先ネジ10本/12本を図に示す順番で先に締めてくださ
い。(図B-6)
B-3-4 アンプ組立12/アンプ組立15からWC組立LF12束線
/WC組 立LF15束 (赤/黒)、WC組 立HF12/WC
組立HF15束線(黄/青)のコネクターを外します。
(図B-5、写真B-1)
※ バッフル12組立/バッフル15組立を開きすぎて、これら
の束線を傷めないように注意してください。
(図B-5、写真B-1)
>@ >@
>@ >@
>@
>@
>@
>@
/28'63($.(5:22)(5
(スピーカ(ウーファー)
/28'63($.(5:22)(5
(スピーカ(ウーファー)
35,25,7<6&5(:
優先ネジ)
O'%5O'%5
e
e
r
r
w
w
q
q
