Yamaha DBR Series Service Manual

26
DBR10/DBR12/DBR15
●

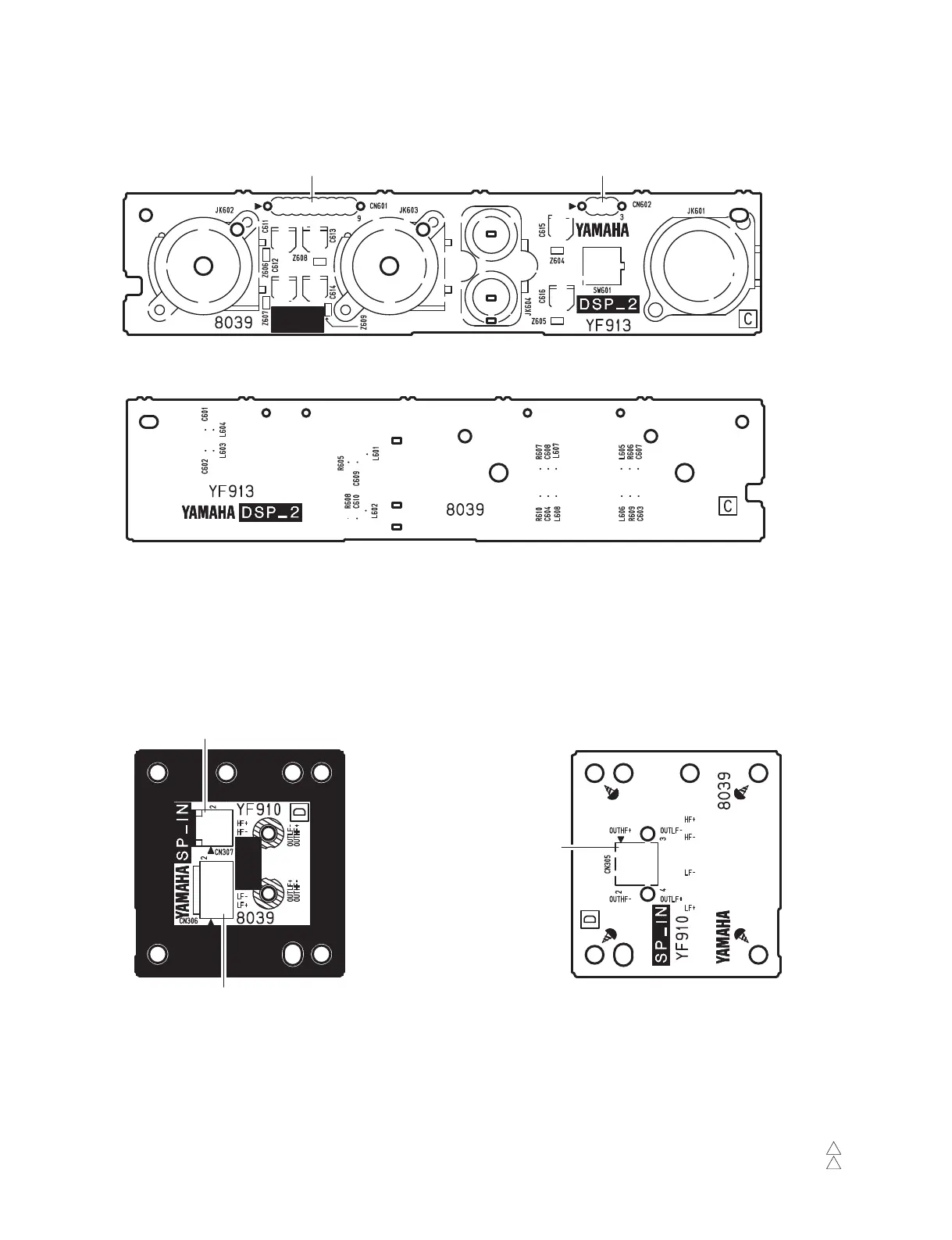

DSP Circuit Board
●
SUBL
(
SP IN
)
Circuit Board
DSP: 2NA-ZJ27600
SUBL (SP IN):2NA-ZJ27580
1
1
Component side
（部品側）
Component side
（部品側）
Pattern side
（パターン側）
Pattern side
（パターン側）
to DSP-CN603 to DSP-CN604
to WOOFER
to TWEETER
to SUBL
(
SP OUT
)
-CN304

Yamaha DBR Series Specifications

General

Type	Powered Speaker
Amplifier Class	Class-D
Inputs	XLR, 1/4" TRS, RCA
Outputs	XLR
Enclosure Material	Plastic
Mounting Options	Pole mount
Coverage angle	90° x 60°
I/O Connectors	XLR, 1/4" TRS, RCA
Woofer Size	12"
Tweeter Size	1.4"
Protection	Overcurrent protection
