Yamaha DBR Series Service Manual

HIJKL GFEDCBA
1
2
3
4
5
6
7
8

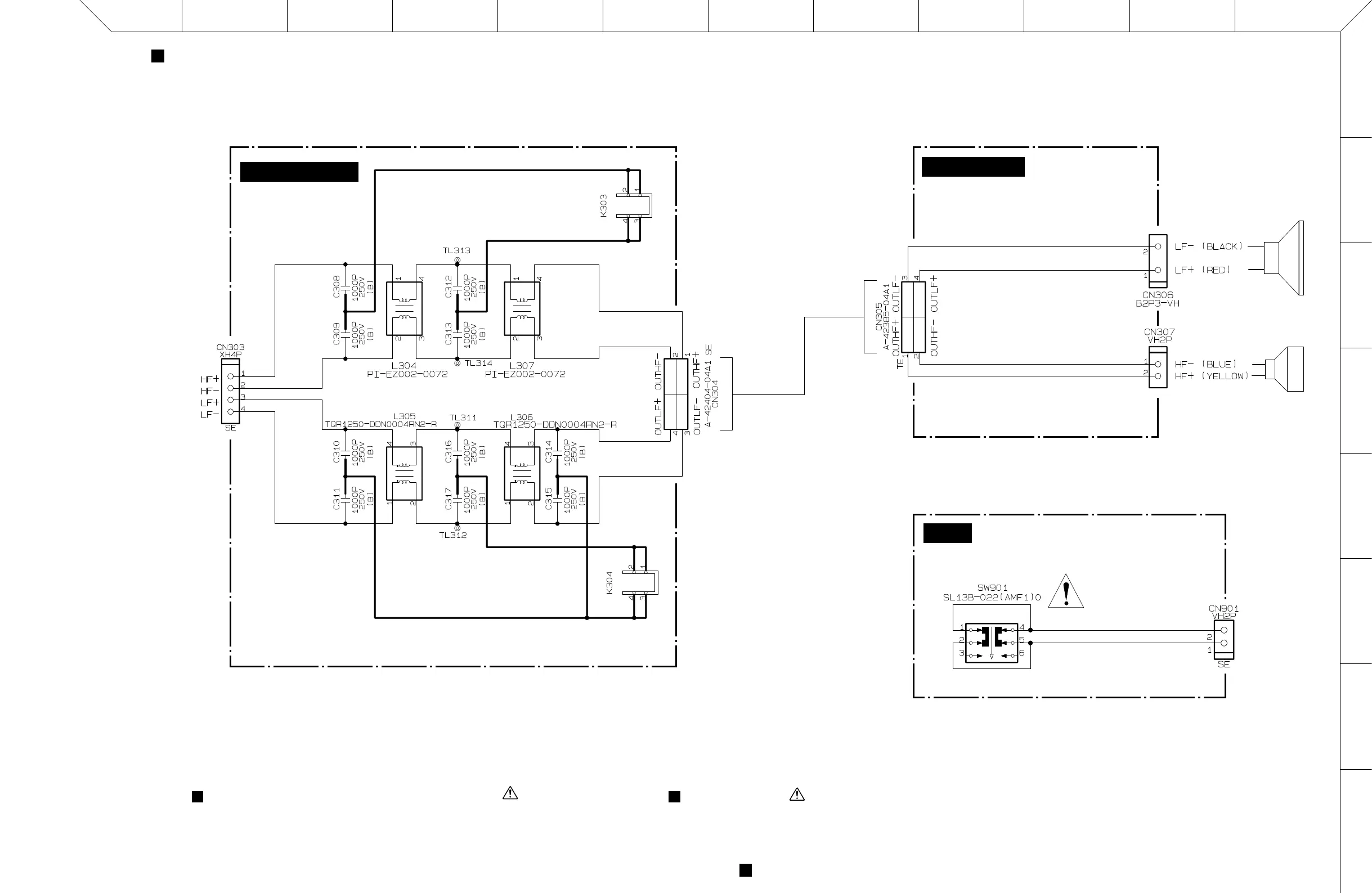

SUBL (SP OUT, SP IN), VSL CIRCUIT DIAGRAM (DBR10/DBR12/DBR15)
SUBL (SP OUT, SP IN), VSL CIRCUIT DIAGRAM (DBR10/DBR12/DBR15)
28CC1-2001134696-2
28CC1-2001134696-3
28CC1-2001134700
DBR10/DBR12/DBR15
11
WARNING
Components having special characteristics are marked and must be replaced with
parts having specificationequal to those originally installed.
安全上の注意
印の部品は、安全を維持するために重要な部品です。交換する場合は、安全のために
必ず指定の部品をご使用ください 。
㻗
㻙
to AMPS-CN102
3DJH.!
to AMPS-CN202
3DJH$!
SUBL
(SP OUT)
(SP IN)
(P destination only)
VOLTAGE SELECTOR
(110V/220V)
VSL
TWEETER
WOOFER
SUBL
㻗
㻙

Yamaha DBR Series Specifications

General

Type	Powered Speaker
Amplifier Class	Class-D
Inputs	XLR, 1/4" TRS, RCA
Outputs	XLR
Enclosure Material	Plastic
Mounting Options	Pole mount
Coverage angle	90° x 60°
I/O Connectors	XLR, 1/4" TRS, RCA
Woofer Size	12"
Tweeter Size	1.4"
Protection	Overcurrent protection
