Yamaha DBR15 - Page 25

25
DBR10/DBR12/DBR15
●

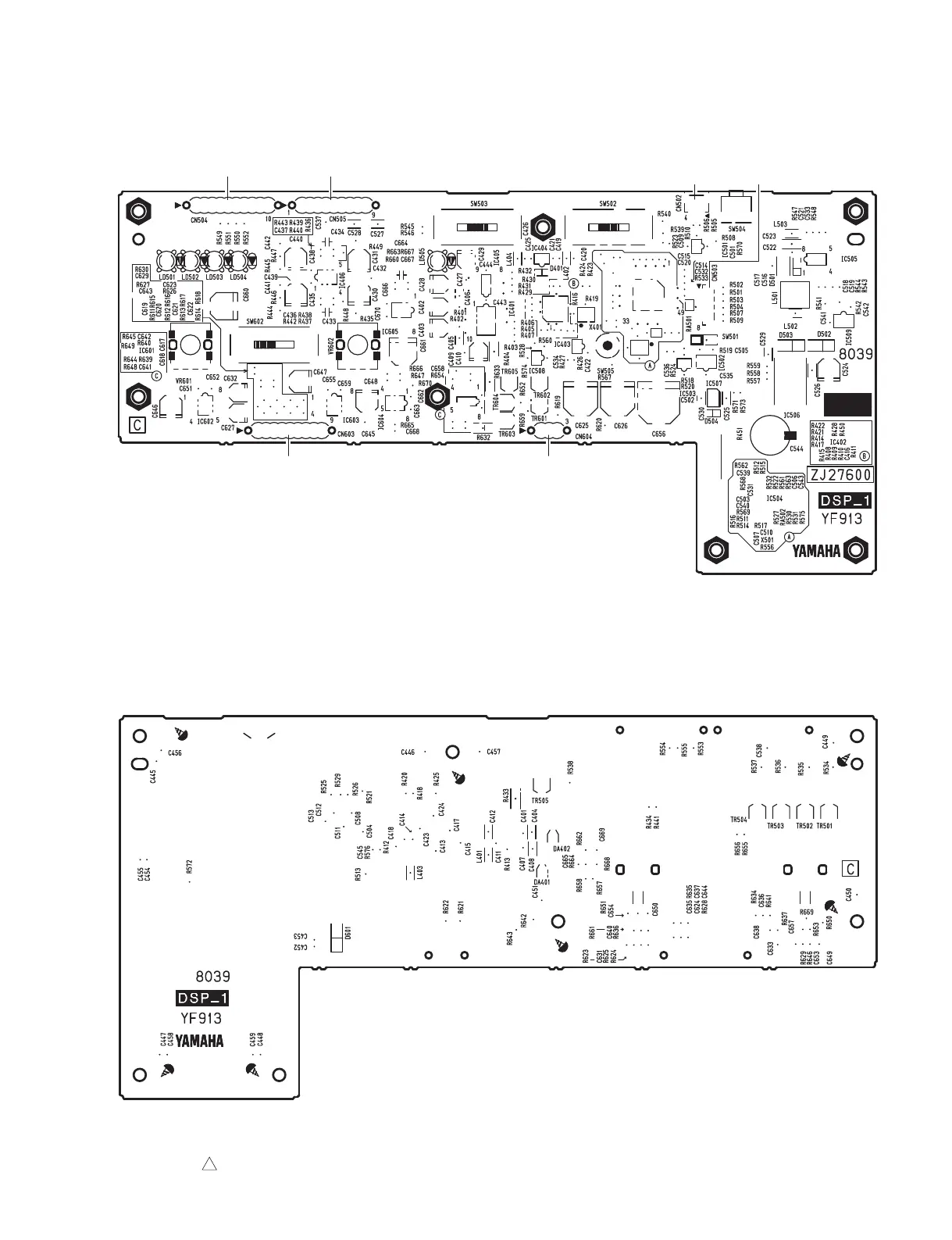

DSP Circuit Board
2NA-ZJ27600
1
not connected not connected
to AMPS-CN103to AMPS-CN201
to DSP-CN601 to DSP-CN602
Component side
（部品側）
Pattern side
（パターン側）
Scale: 90/100
Scale: 90/100
