DBR10/DBR12/DBR15
The result is displayed in output window as shown below.
When Normal
D-CONTOUR
switch
PASS: SW D-CNTR-FOH xxxx[mV] (xxxx)
PASS: SW D-CNTR-OFF xxxx[mV] (xxxx)
PASS: SW D-CNTR-MONI xxxx[mV] (xxxx)
HPF switch PASS: SW HPF-120HZ xxxx[mV] (xxxx)
PASS: SW HPF-100HZ xxxx[mV] (xxxx)
PASS: SW HPF-OFF xxxx[mV] (xxxx)
検査結果はアウトプットウインドウへ下記のように
表示されます。
正常時
D-CONTOUR
スイッチ
PASS: SW D-CNTR-FOH xxxx[mV] (xxxx)
PASS: SW D-CNTR-OFF xxxx[mV] (xxxx)
PASS: SW D-CNTR-MONI xxxx[mV] (xxxx)
HPF スイッチ PASS: SW HPF-120HZ xxxx[mV] (xxxx)
PASS: SW HPF-100HZ xxxx[mV] (xxxx)
PASS: SW HPF-OFF xxxx[mV] (xxxx)
When out of order
D-CONTOUR
switch
FAIL: SW D-CNTR-FOH *[voltage] *[value]
FAIL: SW D-CNTR-OFF *[voltage] *[value]
FAIL: SW D-CNTR-MONI *[voltage] *[value]
HPF switch FAIL: SW HPF-120HZ *[voltage] *[value]
FAIL: SW HPF-100HZ *[voltage] *[value]
FAIL: SW HPF-OFF *[voltage] *[value]
*[voltage]= A voltage value set as 3 steps by the slide
switch [mV]
*[value]= 12bit A/D value
Troubleshooting
If you fail, check wire connection and the following parts.
CPU(PCBDSP:IC504-60pin)→
D-CONTOUR switch
CPU(PCBDSP:IC504-59pin)→ HPFswitch
故障時
D-CONTOUR
スイッチ
FAIL: SW D-CNTR-FOH *[voltage] *[value]
FAIL: SW D-CNTR-OFF *[voltage] *[value]
FAIL: SW D-CNTR-MONI *[voltage] *[value]
HPF スイッチ FAIL: SW HPF-120HZ *[voltage] *[value]
FAIL: SW HPF-100HZ *[voltage] *[value]
FAIL: SW HPF-OFF *[voltage] *[value]
*[voltage]=スライドスイッチで、3段階に設定され
た電圧値[mV]
*[value]=12bitAD値
トラブルシューティング
失敗した場合、次の部品及び結線を確認します。
CPU(PCBDSP:IC504-60pin)→
D-CONTOUR スイッチ
CPU(PCBDSP:IC504-59pin)→ HPF スイッチ

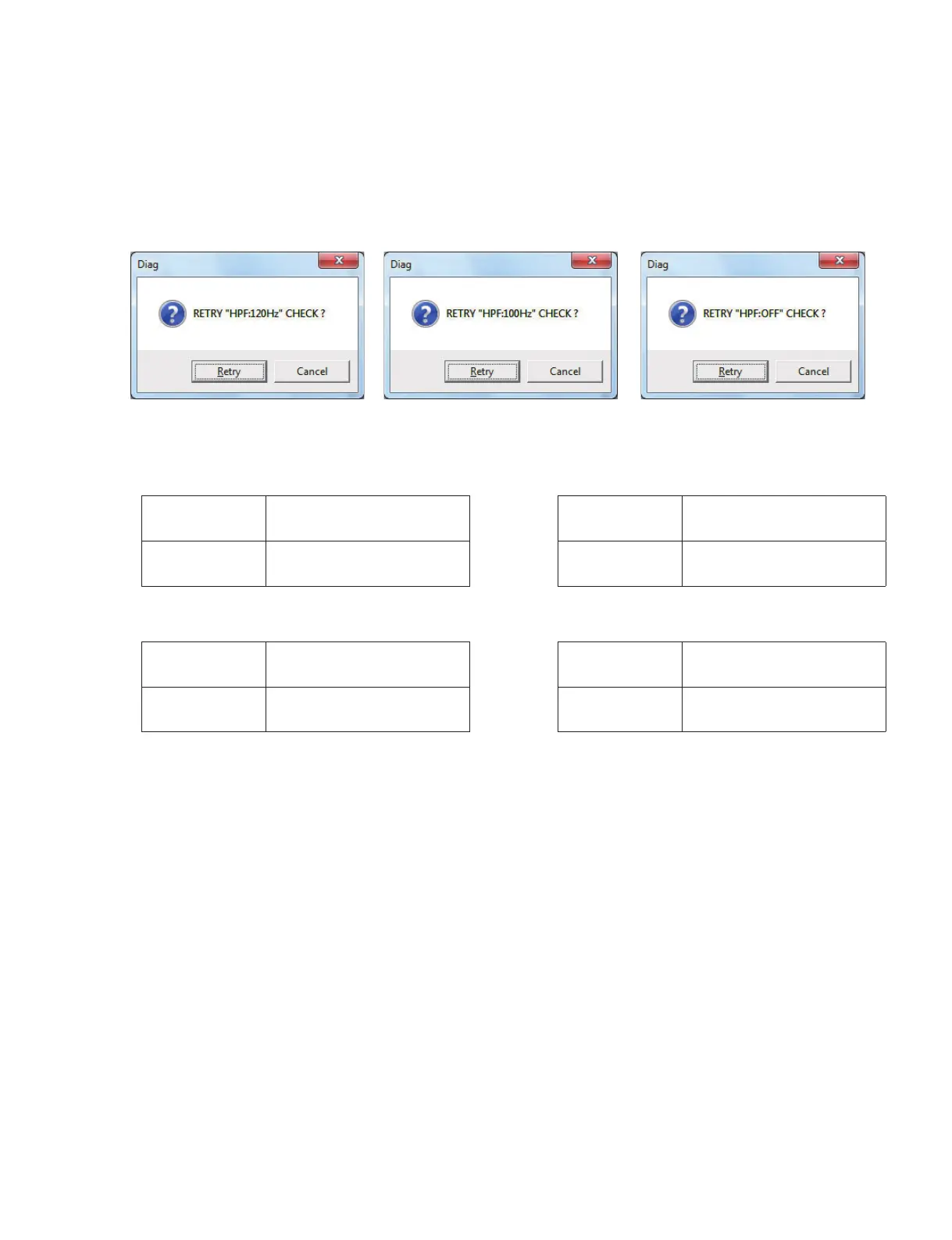

If status received from fi rmware is not the one intended,
whether or not to performagain the test that status of
switch is the same is confirmed. The test is performed
again with “Retry” button, and not performed again with
“Cancel” button.
ファームウェアから受信した状態が意図した状態で
ない場合は、同一スイッチ状態のテストを再度実行
するか確認します。「Retry」ボタンで再テストを行
い、「Cancel」ボタンで再テストを行いません。
