Layer selection/Channel selection

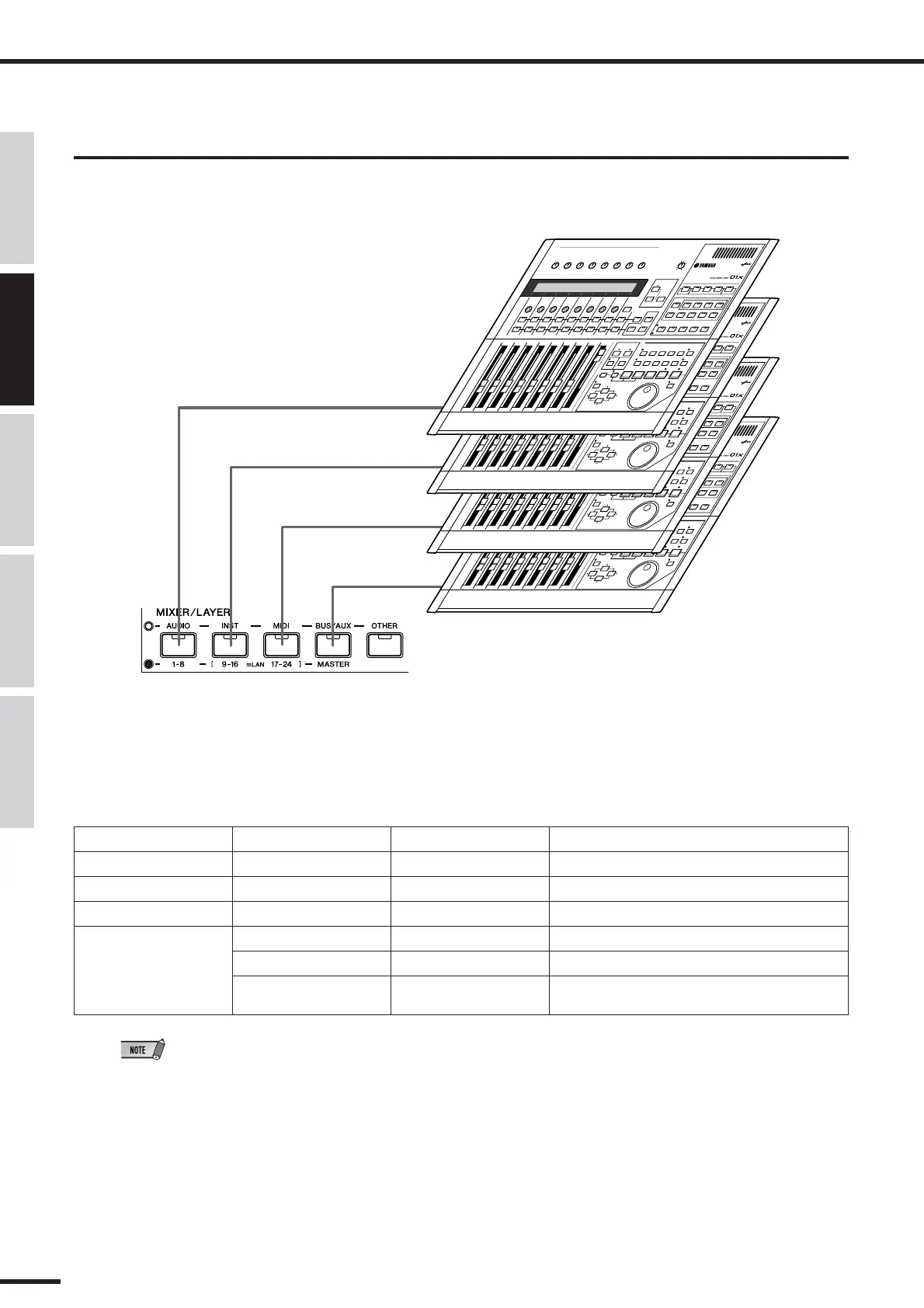

The Input Channels and Output Channels are arranged into layers, as illustrated below. There are four layers altogether.
The currently selected layer determines the function of the channel strip, [SEL] buttons, [ON] buttons, and faders. Use the
LAYER buttons to select a layer you wish to edit using the channel strip controls. The following table shows the layers that
you can access using the LAYER buttons, and the parameters you can control using the channel strips on each layer.
• The STEREO [SEL] button, [ON] button, and STEREO fader always control the Stereo Out signal, regardless of the Layer
settings.
LAYER buttons Channel Strips Display Channels can be operated
[1-8] lights 1-8 CH1-CH8 Input Channels 1-8
[9-16] lights 1-8 mL1-mL8 Input Channels 9-16 (mLAN1-mLAN8)
[17-24] lights 1-8 mL9-mL16 Input Channels 17-24 (mLAN9-mLAN16)
[MASTER] lights
1BUS REC Bus Out master
3-6 AUX1-4 AUX Bus 1-4 masters
7/8 STI1/2
Stereo Inputs 1/2
(Stereo Input 2 is 48kHz/44.1kHz mode only)
Input Channel Layer
1 – 8
Input Channel Layer
9 – 16 (mLAN1 – mLAN8)
Input Channel Layer
17 – 24 (mLAN9 – mLAN16)
(48kHz/44.1kHz mode only)
Master Layer
