68
Recording/Playback/Remote Control
01X Owner’s Manual
Before Using Basics Section AppendixGetting Started Reference
• Do not select the unnumbered mLAN MIDI port; this corresponds
to Port 1 and is reserved for the remote control functions.
t Select “All MIDI Inputs” from the list at left.

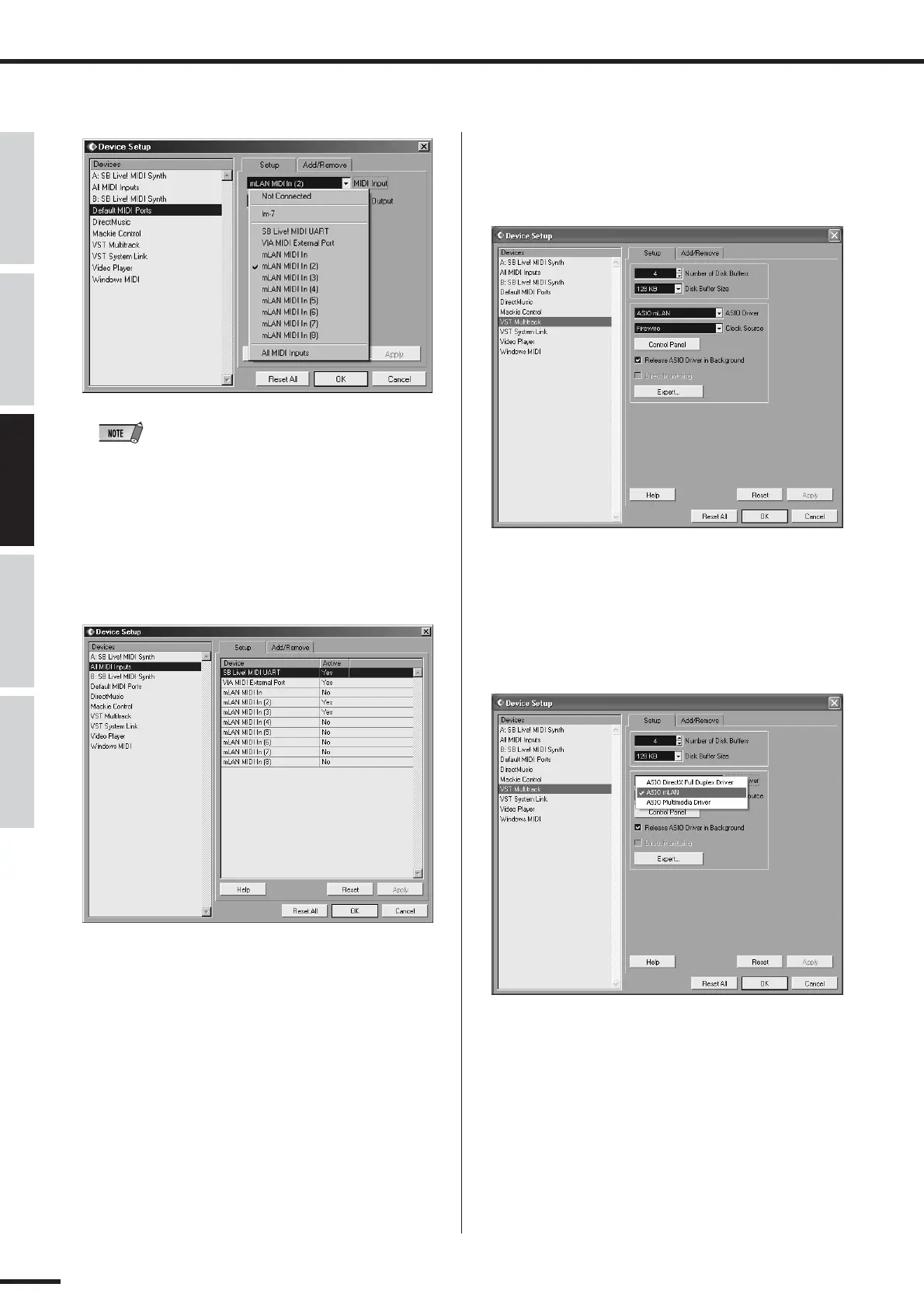

y From the Setup tab, disable mLAN MIDI In Ports 1
and 4 - 8.
Port 1 is the unnumbered selection. Make sure the set-
tings correspond to the example above. Ports 2 and 3
should remain active (“Yes”), while Ports 1 and 4 - 8
should be inactive (“No”).
u Click OK to finish.
Audio setup
q From the Devices menu, select “Device Setup...”
w Select “VST Multitrack” from the list.
e Click on the Setup tab (if necessary).
r Specify the ASIO Driver.
Click on the arrow to call up the pop-up menu. Select
“ASIO mLAN” from the list.
To Next Page
