Yamaha DSP-AX2400 User Manual

RX-V2400/RX-V2400RDS/DSP-AX2400
RX-V1400/RX-V1400RDS/HTR-5690/DSP-AX1400
25
RX-V2400/RX-V2400RDS/DSP-AX2400
RX-V1400/RX-V1400RDS/HTR-5690/DSP-AX1400

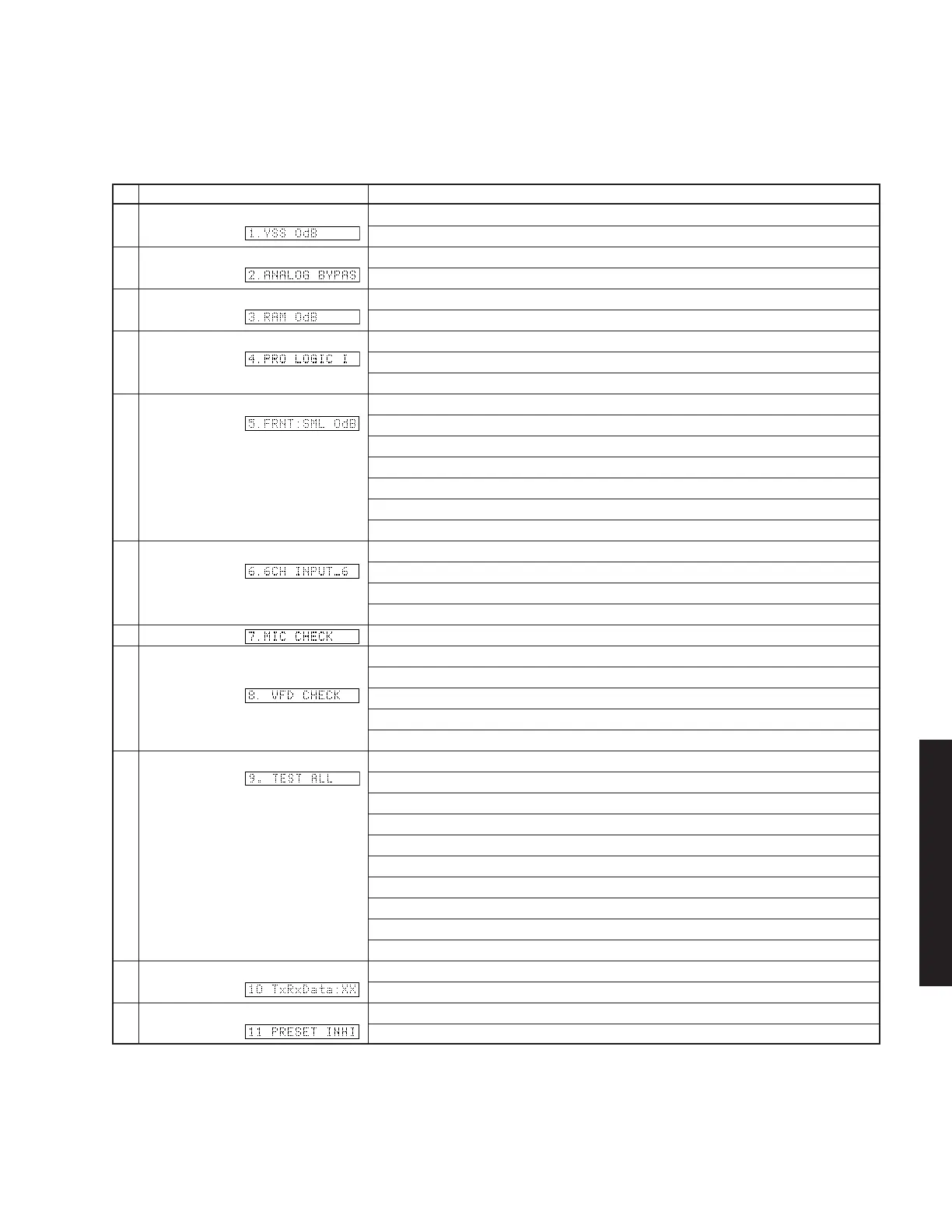

■ SELF DIAGNOSIS FUNCTION (DIAG)／自己診断機能（ダイアグ）
There are 18 DIAG menu items, each of which has sub-
menu items. Listed in the table below are menu items and
sub-menu items.


No DIAG menu sub-menu
1 DA601-YSS930 1. YSS 0dB
2. YSS FULL BIT
2 BYPASS 1. ANALOG BYPASS
2. DSP BYPASS
3 RAM THROUGH 1. RAM 0dB
2. FRONT ATT
4 PRO LOGIC / NEO6 1. PRO LOGIC I
2. PRO LOGIC II
3. NEO: 6
5 SPEAKER SET 1. FRONT: SMALL 0dB
2. CENTER: NONE
3. LFE/BASS: FRONT
4. PRESS MIX: 5ch
5. SURROUND B: MUTE
6. SURROUND LR: MUTE
7. SURROUND LR: NONE
6 EXTERNAL INPUT 1. 6CH_INPUT_6OHMS
2. 6CH_INPUT_8OHMS
3. 8CH_INPUT_6OHMS
4. 8CH_INPUT_8OHMS
7 MIC CHECK MIC CHECK
8 EFFECT OFF/ 1. VFD CHECK (Initial display)
DISPLAY CHECK 2. VFD DISP OFF (All segments OFF)
3. VFD DISP ALL (All segments ON 100%)
4. VFD DIMMER (All segments ON 50%)
5. CHECKED PATTERN (ON in lattice)
9 MANUAL TEST 1. TEST ALL
2. TEST FRONT L
3. TEST CENTER
4. TEST FRONT R
5. TEST SURROUND R
6. TEST SURROUND B
7. TEST SURROUND L
8. TEST PRESENCE L
9. TEST PRESENCE R
10. TEST LFE
10 RS-232C 1. TX DATA
2. HARD FLOW
11 FACTORY PRESET 1. PRESET INHIBIT (memory initialization inhibited)
2. PRESET RESERVED (memory initialized)
