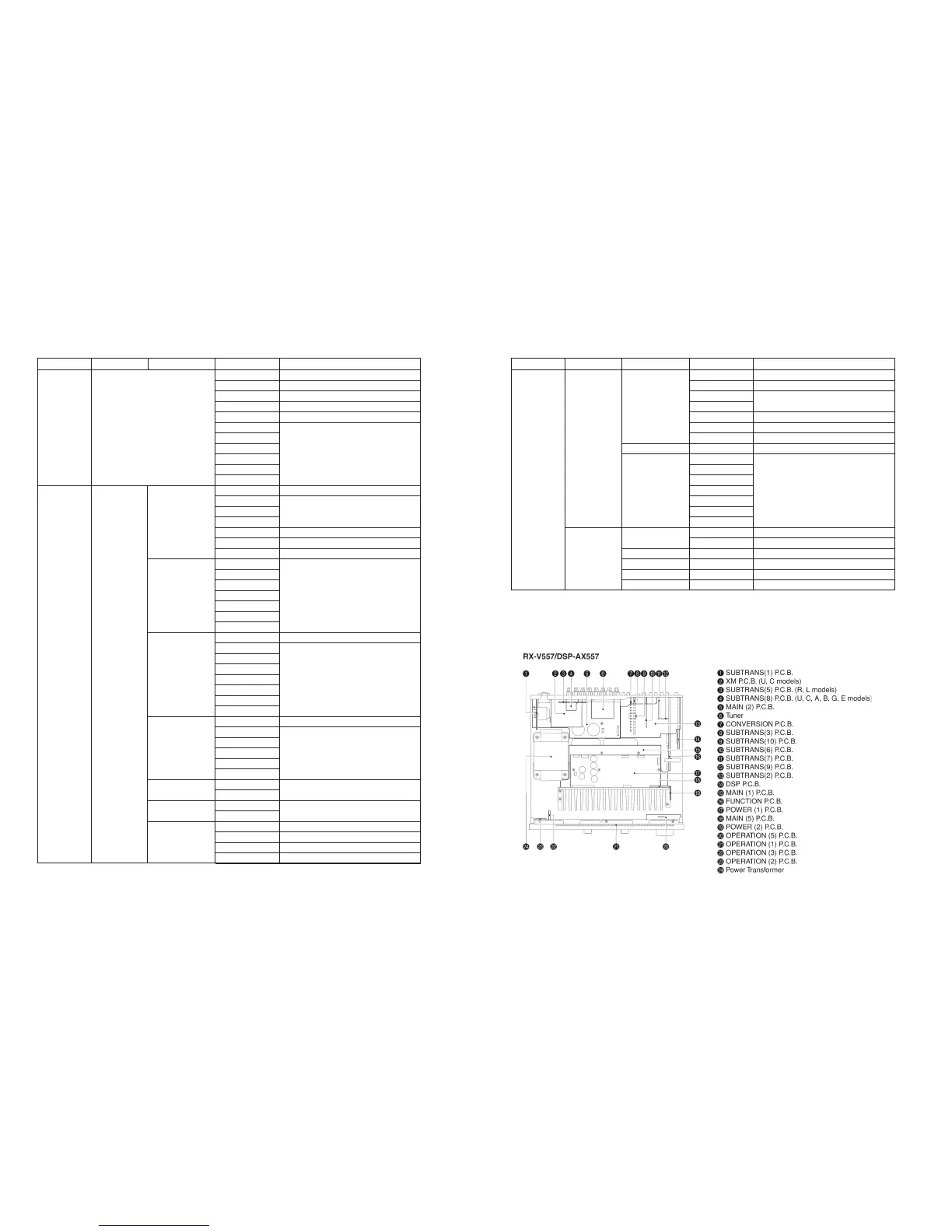

■ INTERNAL VIEW
CATEGORY MAIN MENU SUB MENU SELECT MENU VALUE [INITIAL]
• BASIC SETUP ROOM : S >M L S / [M] / L
SUBWOOFER : YES [YES] / NONE
SPEAKERS : 6spk 2 / 3 / 4 / 5 / [6]
>SET CANCEL [SET] / CANCEL
CHECK OK? : YES [YES] / NO
FR •••••||•••••
C •••••||•••••
SL •••••||•••••
± 10.0 dB step
SB •••••||•••••
SR •••••||•••••
SWFR •••••||•••••
•
MANUAL SETUP 1 SOUND MENU A ) SPEAKER SET FRONT : LARGE SMALL / [LARGE]
CENTER : SML
SUR LR : SML NONE / [SML] / LRG
SUR B : SML
BASS OUT : BOTH SWFR / FRONT / [BOTH]
Cross Over : 80 Hz 40 / 60 / [80] / 90 / 100 / 110 / 120 / 160 / 200 Hz
SWFR PHASE : NRM [NRM] / REV
B ) SP LEVEL FL •••••||•••••
FR •••••||•••••
C •••••||•••••
SL •••••||••••• -10.0 dB to +10.0 dB [0.0 dB] / 1.0 dB step
SR •••••||•••••
SB •••••||•••••
SWFR •••••||•••••
C ) SP DISTANCE UNIT : feet feet (U, C models) / meters (R, T, K, A, B, G, E, L, J models)
FRONT L 10.0 ft / 3.00 m
FRONT R 10.0 ft / 3.00 m
CENTER 10.0 ft / 3.00 m feet : 1.0 ft to 80.0 ft [10.0 ft] / 0.5 ft step
SUR. L 10.0 ft / 3.00 m
SUR. R 10.0 ft / 3.00 m
meters : 0.30 m to 24.00 m [3.00 m] / 0.10 m step
SUR. B 10.0 ft / 3.00 m
SWFR 10.0 ft / 3.00 m
D ) CENTER GEQ TEST : >OFF ON [OFF] / ON
100 Hz -||- 0
300 Hz -||- 0
1 kHz -||- 0 -6 dB to +6 dB [0 dB] / 1 dB step
3 kHz -||- 0
10 kHz -||- 0
E ) LFE LEVEL SP LFE : 0
-20 dB to 0 dB [0 dB] / 1 step
HP LFE : 0
F ) D . RANGE SP D . R : MAX
MIN / STD / [MAX]
HP D . R : MAX
G ) AUDIO SET MUTE TYP : MUTE -20 dB / [MUTE]
A. DELAY : 0 ms 0 ms to 160 ms / 1 step
TC. BYPASS : AUTO OFF / [AUTO]
DUAL MONO : MAIN [MAIN] / SUB / ALL (J model)
CATEGORY MAIN MENU SUB MENU SELECT MENU VALUE [INITIAL]
• Set Menu Table / セットメニュー
2 INPUT MENU A ) I/O ASSIGN C . V [A] : DVD [DVD] / VCR / V-AUX / DTV/CBL
C . V [B] : DTV/CBL - - - / VCR / V-AUX / [DTV/CBL]
OUT (1) : MD/CD-R [MD/CD-R] / CD / VCR / V-AUX / DTV/CBL / DVD
IN (2) : MD/CD-R (RX-V557, HTR-5850, DSP-AX557)
IN (3) : DVD - - - / CD / VCR / V-AUX / DTV/CBL / [DVD]
IN (4) : DTV/CBL - - - / CD / VCR / V-AUX / [DTV/CBL] / DVD
IN (5) : CD
MD/CD-R / [CD] / VCR / V-AUX / DTV/CBL / DVD
B ) INPUT MODE > AUTO / LAST [AUTO] / LAST
C ) INPUT RENAME CD
Input is possible to 8 characters / 最大8文字まで入力可能
MD/CD-R Input is possible Character type / 入力可能文字
TUNER CAPITAL / 英大文字 A to Z
DVD SMALL /
英小文字 a to z
DTV/CBL FIGURE /
数字 0 to 9
V-AUX Space /
空白
VCR MARK / 記号 # * - + / ; < > ? etc.
3 OPTION MENU A ) DISPLAY SET DIMMER : 0 -5 to 0 / 1 step
V CONV. : ON OFF / [ON]
B )
MEMORY GUARD MEM. GUARD : OFF [OFF] / ON
C ) PARAM. INI
D ) MULTI ZONE SP B : MAIN [MAIN] / ZONE B
E )
XM RADIO (U model) ANTENNA : NONE [NONE] / 0 % to 100 %
