Yamaha EF3000iS - Fuel Cock Knob; Caster Lock Lever

– 11 –
q1
w2

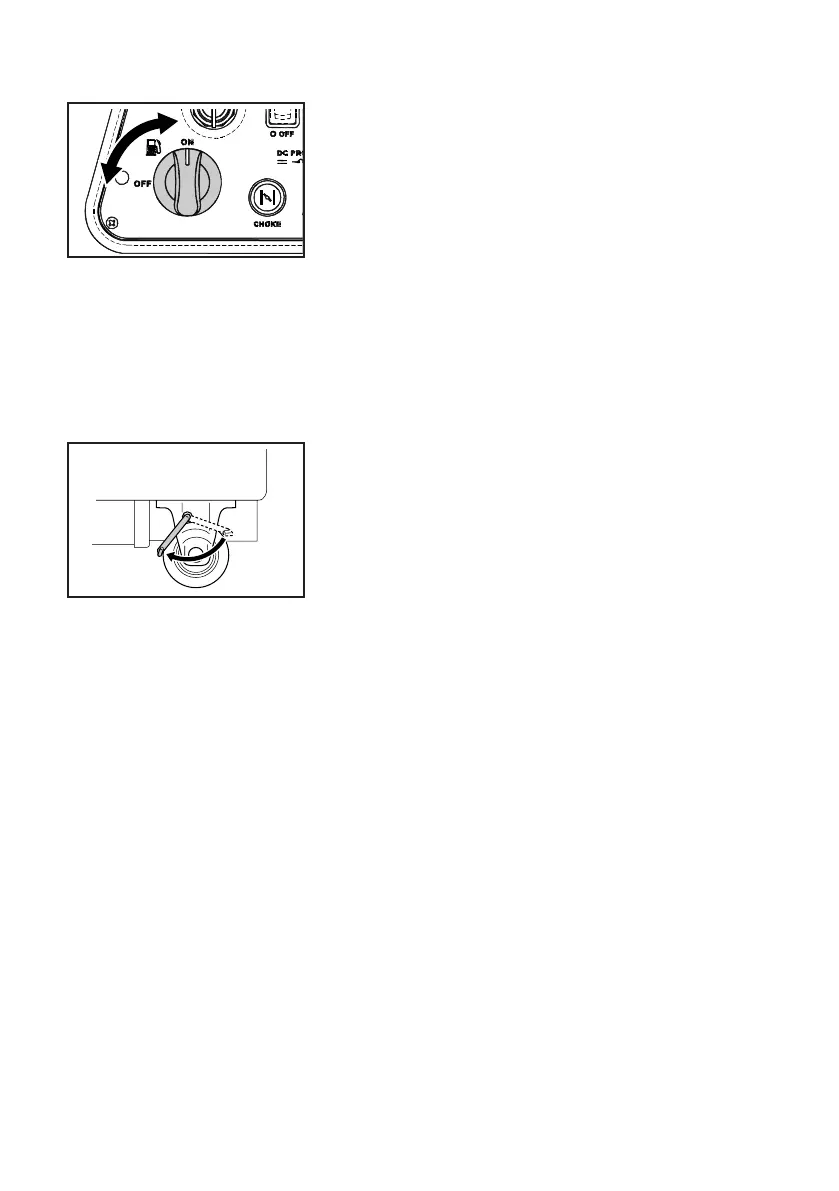

FUEL COCK KNOB
The fuel cock supplies fuel from the fuel tank to the car-
buretor. The fuel cock has two positions.
1 “ON”
With the knob in this position, fuel flows to the carbure-
tor.
Normal using is done with the knob in this position.
2 “OFF”
With the knob in this position, fuel will not flow. Always
turn the knob to this position when the engine is not
running.
712-029c
q1
w2
CASTER LOCK LEVER
The caster lock lever stops moving the generator.
1 “RELEASE”
2 “LOCK”
