Yamaha EF3000iS - WIRING DIAGRAMS; EF3000 iS WIRING DIAGRAM

– 44 –
Y
Y
Y
G
O
Y
L
R
O
Y
B/W
R
O
B
B/W
B
R
R
R
L
L
L
L
R
R
G
G
G
W
O
O
O
O O
O
O
O
O
O
B/W
O
O
O
Y
W
WW
Y
YY
Y
Y
Y
Y
Y
Y
Y
L
L
L
W
W
O
O
W
L
L
W
B
B
W
G/Y
G/Y
O
G/Y
G/Y
G/Y
G/Y
B/W
B/W
B/W
B/W
B/W
B/W
R
R
R
R
B
B
R
Br
Br Br
Br
R
Br
Br
1
2
3
4
5
6
77
8
9
e
0
q
w
r
y
t
u
i
o
770-052

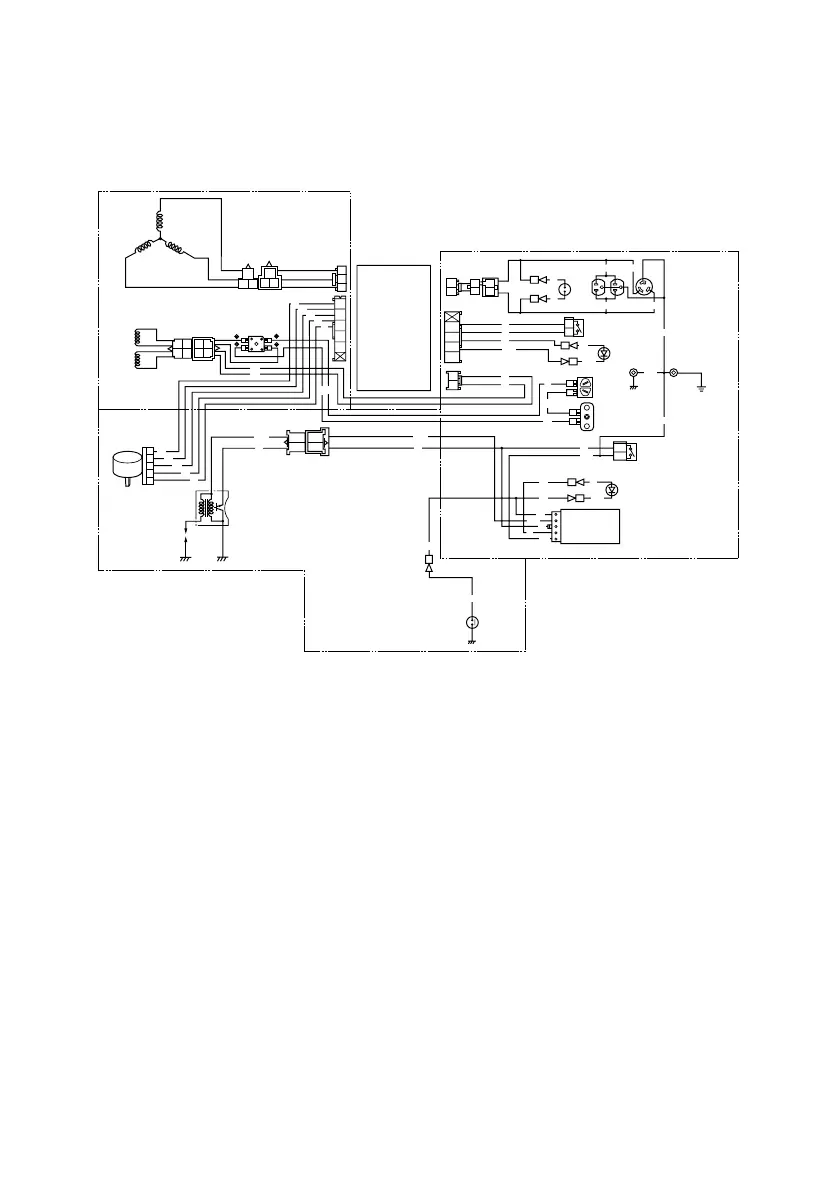

WIRING DIAGRAM
EF3000iS
1 Main coil
2 Sub coil
3 DC coil
4 DC rectifier
5 Control unit
6 AC pilot light
7 AC receptacle
8 Ground (earth) terminal
9 Economy control switch
0 Overload indicator light
q DC receptacle
w DC protector
e Engine switch
r Oil warning light
t Speed limiter assembly
y Oil level gauge
u T.C.I. unit
i Spark plug
o Stepping motor
Color code
B Black
Br Brown
G Green
L Blue
OOrange
R Red
W White
YYellow
B/W Black/White
G/Y Green/Yellow
