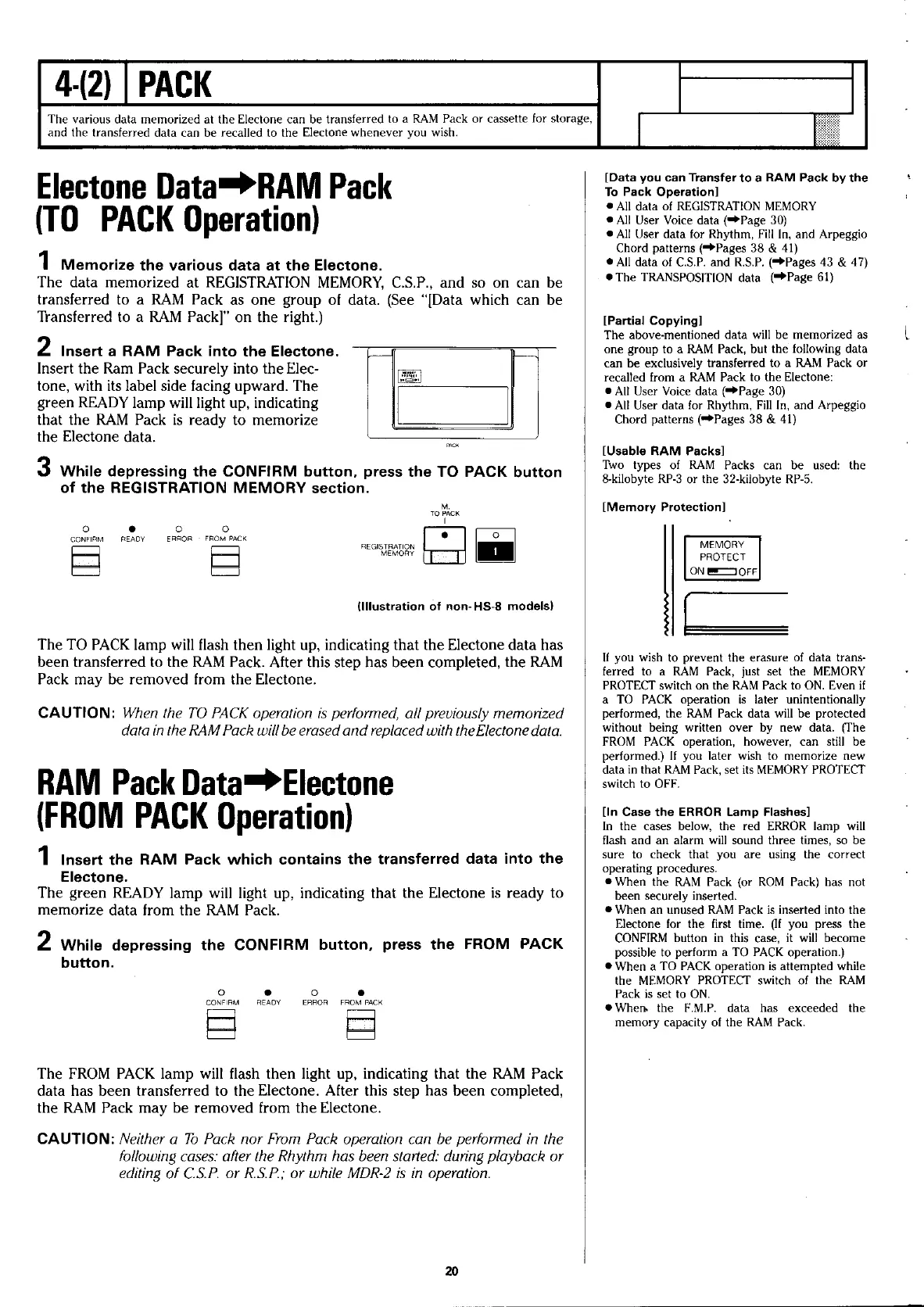

Yamaha Electone HS-4 - Pack; Electone Data - RAM Pack (to Pack Operation); RAM Pack Data - Electone (from Pack Operation); Data You Can Transfer to a RAM Pack by the to Pack Operation
