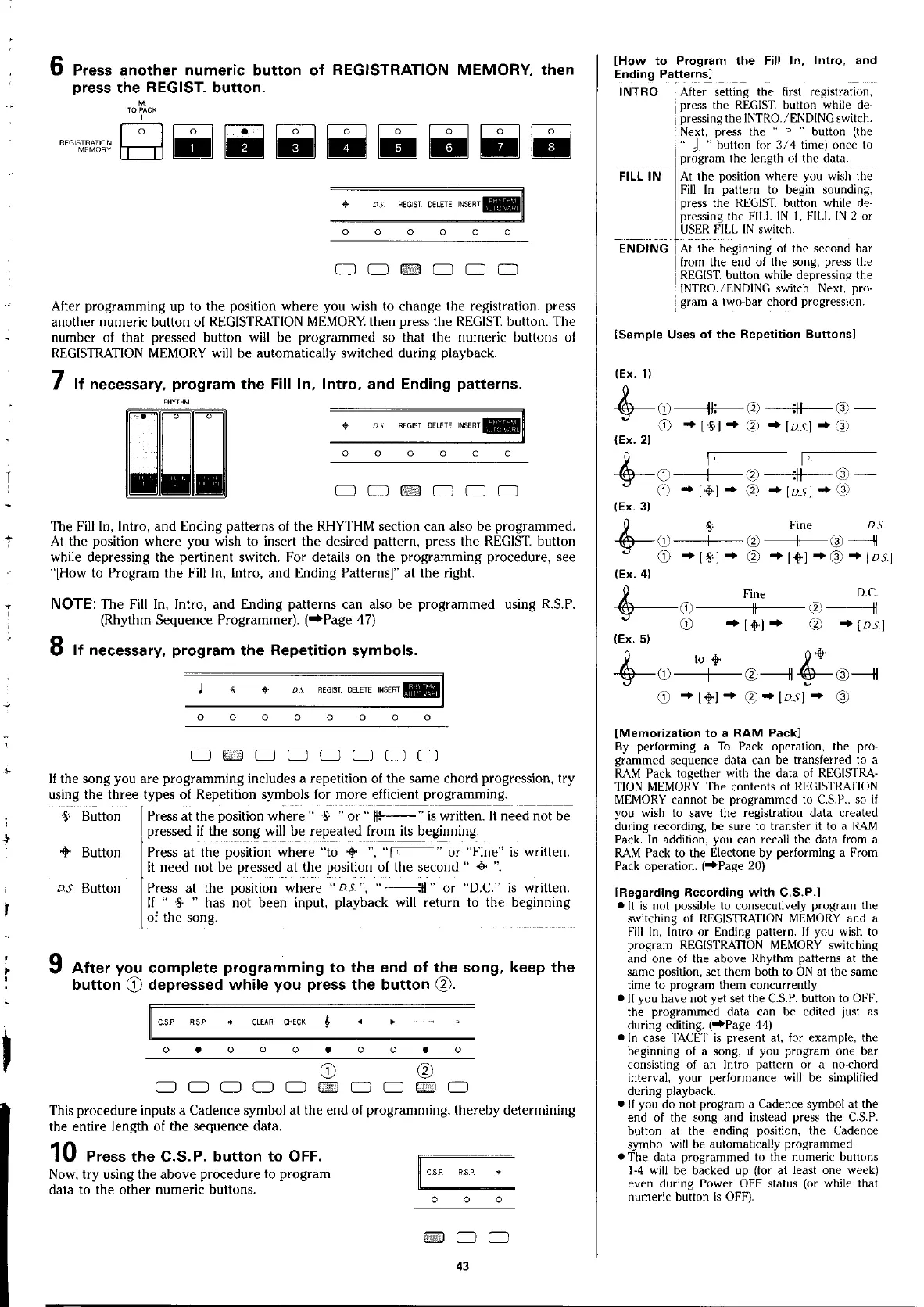

Yamaha Electone HS-4 - How to Program the Fill In, Intro, and Ending Patterns; Sample Uses of the Repetition Buttons; Regarding Recording with C.S.P.
