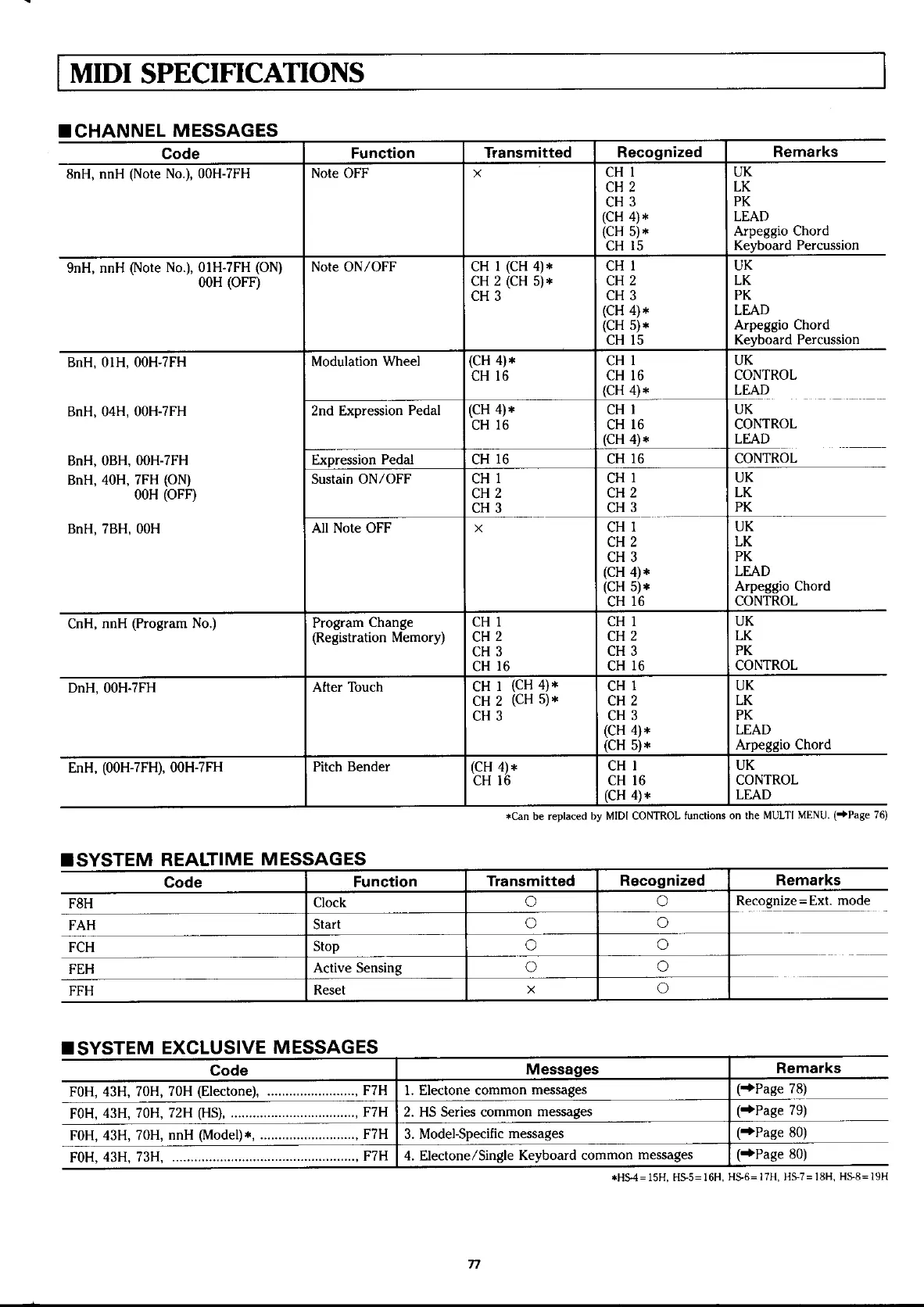

Yamaha Electone HS-4 - MIDI Specifications; Channel Messages; System Realtime Messages; System Exclusive Messages

86 pages
