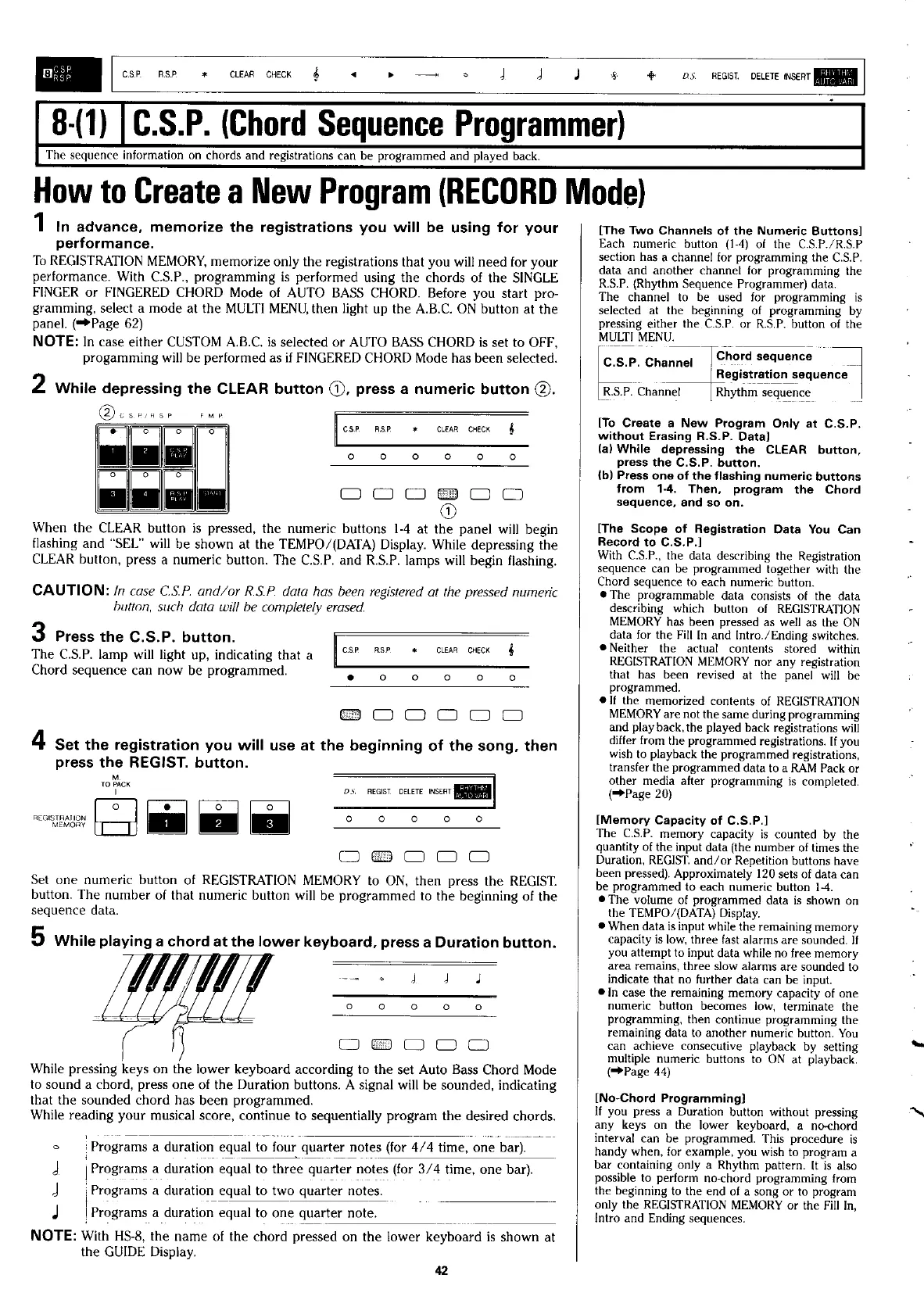

Yamaha Electone HS-4 - C.S.P. (Chord Sequence Programmer); How to Create a New Program (RECORD Mode); The Two Channels of the Numeric Buttons; To Create a New Program Only at C.S.P. Without Erasing R.S.P. Data
