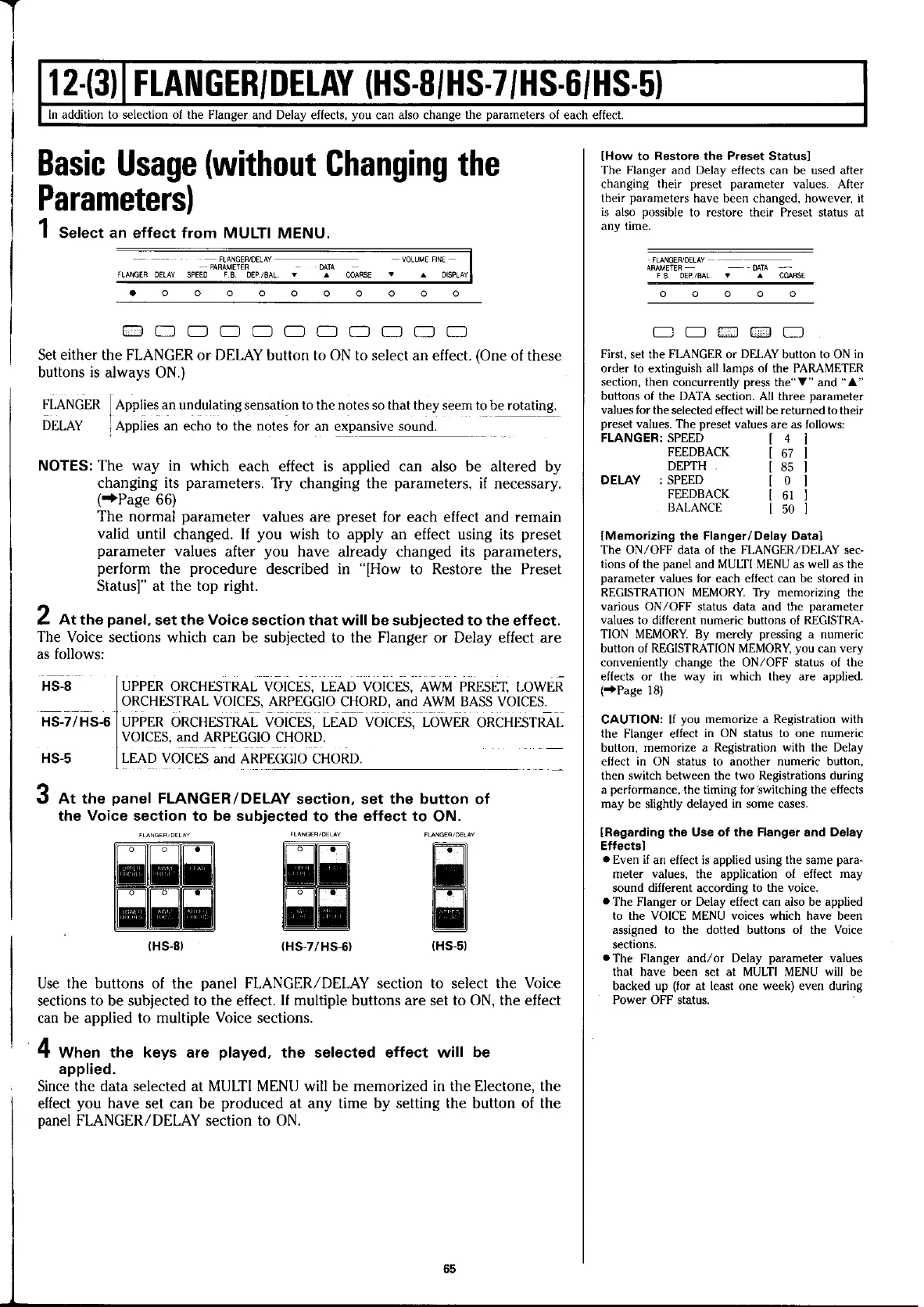

Yamaha Electone HS-4 - Flanger;Delay (HS-8;HS-7;HS-6;HS-5); Basic Usage (Without Changing the Parameters); How to Restore the Preset Status; Memorizing the Flanger;Delay Data
