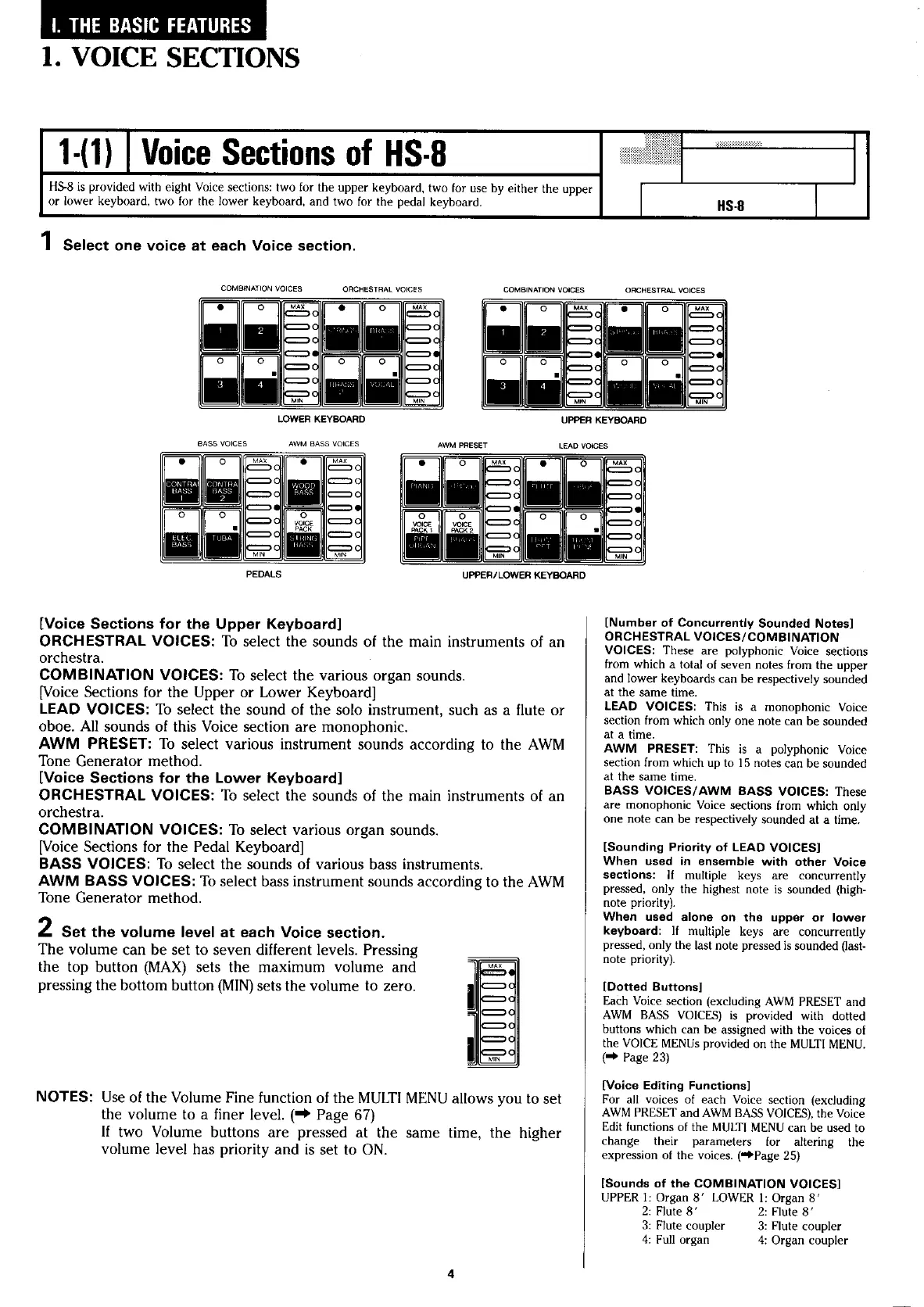

Yamaha Electone HS-4 - Voice Sections; Voice Sections of HS-8; Number of Concurrently Sounded Notes; Dotted Buttons
